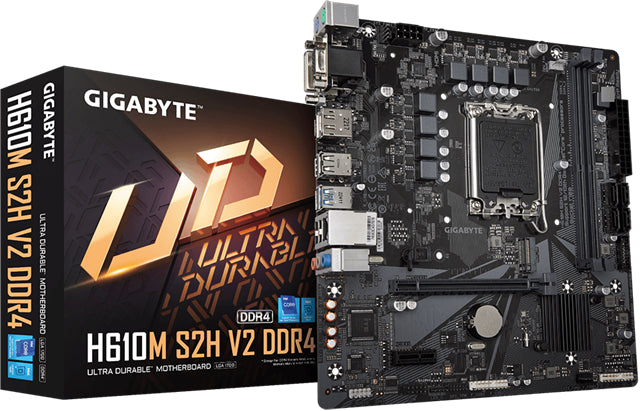

MGI5093 - Gigabyte H610M S2H V2 DDR4 mATX LGA1700 Motherboard

SKU: MGI5093 ● In Stock

$192.62

Free shipping over $299 Genuine product 7-day returns

MGI5093 - Gigabyte H610M S2H V2 DDR4 mATX LGA1700 Motherboard

Overview

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Technical Specifications

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
Maximum internal memory supported by processor	64
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & non-ECC
Supported memory clock speeds	2133,2400,2666,2933,3000,3200
Supported memory clock speed (max)	3200
Maximum internal memory	64
Supported memory module capacities	1GB,2GB,4GB,8GB,12GB,16GB,32GB
Unbuffered memory	Y
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2,SATA
Number of HDDs supported	4
Number of storage drives supported	5
On-board graphics card	Y
Graphics card family	Intel
Graphics card	HD Graphics
HDCP	Y
DirectX version	12.0
On-board graphics card model	Intel HD Graphics
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	Y
Front panel connector	Y
ATX Power connector (24-pin)	Y
CPU fan connector	Y
Number of chassis fan connectors	2
EPS power connector (8-pin)	Y
Number of COM connectors	1
TPM connector	Y
Serial port headers	1
12V power connector	Y
RGB LED pin header	Y
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI-D ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Y
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Wi-Fi	N
Motherboard chipset	Intel H610 Express
Audio output channels	7.1
Product colour	Brown
PC health monitoring	FAN,LED,Temperature,Voltage,Water cooling
Component for	PC
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Cooling type	Active
Power source type	ATX
Windows operating systems supported	Windows 10 x64,Windows 11 x64
PCI Express x1 slots	1
PCI Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128
ACPI version	5.0
Clear CMOS jumper	Y
Clear CMOS button	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Products per shipping (inner) case	1
Battery weight	3
Lithium weight per battery	0.07
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	265
Package depth	265
Package height	54
Package weight	857
Width	230
Depth	215
Height	35
Batteries included	Y
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Supported DIMM module capacities	8GB,16GB
Warranty period	3
