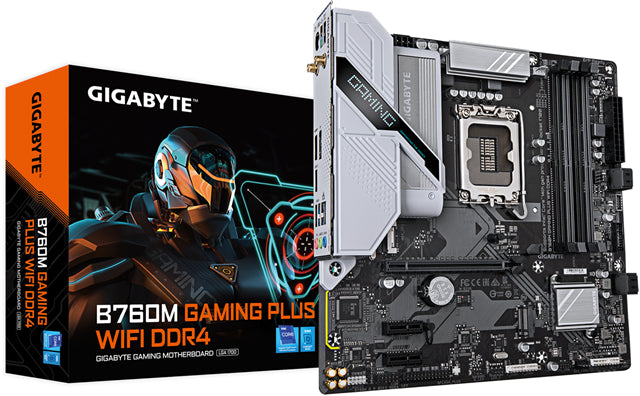

MGI5174 - Gigabyte B760M Gaming Plus WIFI DDR4 mATX LGA1700 Motherboard
$261.37
Free shipping over $299
Genuine product
7-day returns
MGI5174 - Gigabyte B760M Gaming Plus WIFI DDR4 mATX LGA1700 Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3 12th Gen,Intel Core i3 13th Gen,Intel Core i3 14th Gen,Intel Core i5 12th Gen,Intel Core i5 13th Gen,Intel Core i5 14th Gen,Intel Core i7 12th Gen,Intel Core i7 13th Gen,Intel Core i7 14th Gen,Intel Core i9 12th Gen,Intel Core i9 13th Gen,Intel Core i9 14th Gen,Intel Pentium |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 |
| Supported memory clock speed (max) | 5333 |
| Maximum internal memory | 128 |
| Unbuffered memory | Y |
| Maximum internal memory per slot | 32 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 |
| HDCP | Y |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Y |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Y |
| Parallel connector | Y |
| Serial port headers | 1 |
| RGB LED pin header | Y |
| Number of RGB LED pin headers | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Line-in | Y |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Product colour | Grey |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 270 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1200 |
| Width | 244 |
| Depth | 244 |
| Height | 35 |
| Batteries included | Y |
| Antenna included | Y |
| Screws included | Y |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 1100 |
| Warranty period | 3 |
