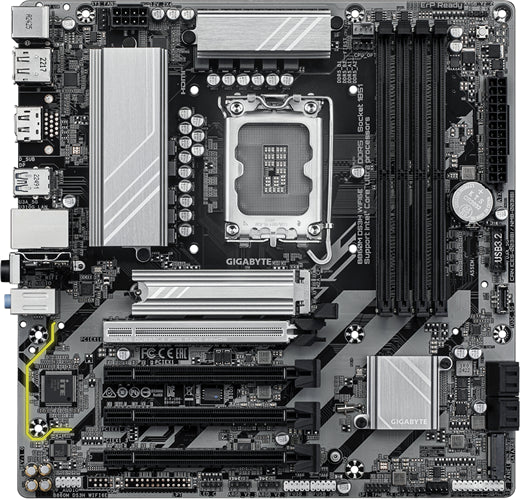

MGI5204 - Gigabyte B860M DS3H WIFI6E mATX LGA1851 Motherboard
$306.67
Free shipping over $299
Genuine product
7-day returns
MGI5204 - Gigabyte B860M DS3H WIFI6E mATX LGA1851 Motherboard
Overview
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Hybrid 5+1+2+1 Phases 50A PPAK VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
- M.2 Thermal Guard with EZ-Latch Click
- MOSFET Heatsinks & PCH Heatsink
- Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 3.2 Gen2 Type-A, Q-Flash Plus
Technical Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 1),Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 5600,6400,9066 |
| Supported memory clock speed (max) | 9066 |
| Maximum internal memory | 256 |
| Unbuffered memory | Y |
| Maximum internal memory per slot | 64 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 |
| HDCP | Y |
| DirectX version | 12.0 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Y |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Y |
| Number of water pump connectors | 2 |
| RGB LED pin header | Y |
| Number of RGB LED pin headers | 4 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Product colour | Dark brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| PCI Express x16 (Gen 4.x) slots | 5 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 270 |
| Package depth | 268 |
| Package height | 68 |
| Package weight | 1253 |
| Width | 244 |
| Depth | 244 |
| Height | 35 |
| Batteries included | Y |
| Antenna included | Y |
| Screws included | Y |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Weight | 1100 |
| Warranty period | 3 |
