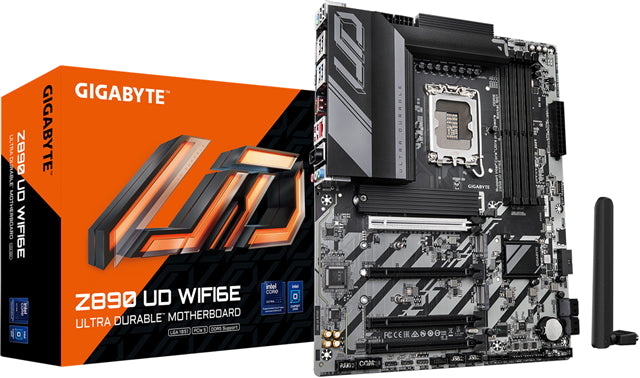

MGI6120 - Gigabyte Z890 UD WIFI6E ATX LGA1851 Motherboard

Name: MGI6120 - Gigabyte Z890 UD WIFI6E ATX LGA1851 Motherboard
Brand: Gigabyte
SKU: MGI6120
Price: 414.38 NZD
Availability: InStock

SKU: MGI6120 ● In Stock

$414.38

Free shipping over $299 Genuine product 7-day returns

📄 Download Official Datasheet (PDF)

MGI6120 - Gigabyte Z890 UD WIFI6E ATX LGA1851 Motherboard

Overview

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Digital 12+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
PCIe M.2 design (Up to 25110) with Thermal Guard
Fully Covered MOSFET Heatsinks
2x2 Wi-Fi 6E with WIFI EZ-Plug Design
2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C

Technical Specifications

Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Maximum internal memory supported by processor	256
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	non-ECC
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600
Supported memory clock speed (max)	8800
Maximum internal memory	256
Supported memory module capacities	1GB,2GB,4GB,8GB,12GB,16GB,24GB,32GB,40GB,48GB,64GB
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2,SATA III
Number of HDDs supported	7
Number of storage drives supported	4
RAID support	Y
RAID levels	0,1,5,10
On-board graphics card	N
DirectX version	12.0
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
ATX Power connector (24-pin)	Y
EPS power connector (8-pin)	Y
TPM connector	Y
12V power connector	Y
RGB LED pin header	Y
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Y
S/PDIF out port	Y
Thunderbolt ports quantity	2
Ethernet LAN	Y
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Y
Bluetooth version	5.3
Motherboard chipset	Intel Z890
Audio output channels	7.1
Product colour	Black
PC health monitoring	FAN,Temperature,Voltage
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 11 x64
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
BIOS type	UEFI AMI
BIOS memory size	256
ACPI version	5.0
Clear CMOS jumper	Y
Clear CMOS button	Y
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Country of origin	China
Products per shipping (inner) case	1
Battery weight	3
Lithium weight per battery	0.07
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335
Package depth	270
Package height	80
Package weight	2020
Width	305
Depth	244
Height	35
Batteries included	Y
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Weight	1785
Warranty period	3
