MikroTik CRS112-8P-4S-IN PoE Switch

SKU: CRS112-8P-4S-IN ● In Stock

$481.44 ~~$497.41~~

Free shipping over $299 Genuine product 7-day returns

Features

MikroTik CRS112-8P-4S-IN PoE Switch

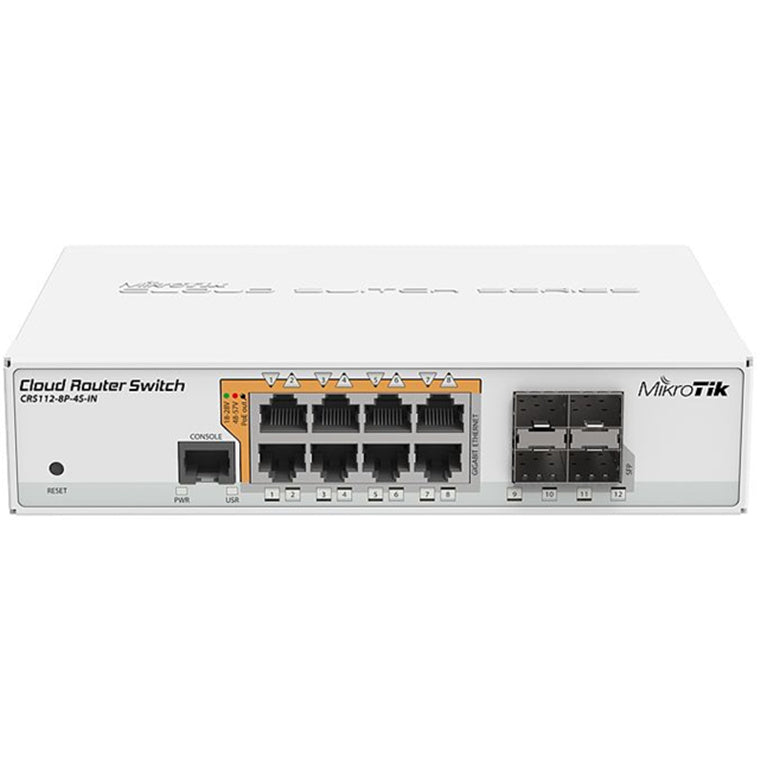

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

Smart Switch

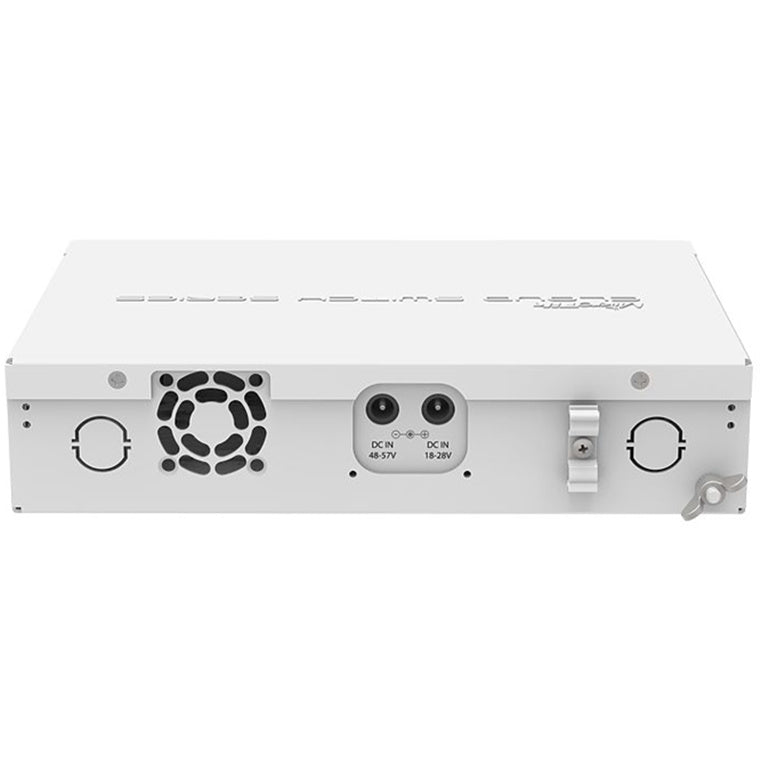

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A @ 24V and 1.4A @ 48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins.

Specifications

Technical Specifications

Product code	CRS112-8P-4S-IN
Architecture	MIPSBE
CPU	QCA8511
CPU core count	1
CPU nominal frequency	400 MHz
License level	5
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-20°C to 60°C
PoE out	802.3af/at
Number of DC inputs	2 (DC jack)
DC jack input Voltage	18 - 57 V
Max out per port output (input > 30 V)	450 mA
Max out per port output (input < 30 V)	1 A
Max total out (A)	2.8 A
Max power consumption	150 W
Max power consumption without attachments	10 W
10/100/1000 Ethernet ports	8
SFP ports	4
Serial port	RJ45
PCB temperature monitor	Yes
Included parts	IEC cord28V 3.4A power adapterK48 screw kitEars
