MikroTik L11UG-5HaxD 5 GHz CPE or AP with Wi-Fi 6 RouterBoard dual-core ARM CPU, PoE-in, Gigabit Ethernet and RouterOS v7

SKU: L11UG-5HAXD ● In Stock
$168.57
Free shipping over $299 Genuine product 7-day returns

Features

MikroTik L11UG-5HaxD High Power 5 GHz CPE or AP with Wi-Fi 6 RouterBoard dual-core ARM CPU, PoE-in, Gigabit Ethernet and RouterOS v7. MMCX connectors allow creating versatile omnidirectional access points and powerful point-to-point links.

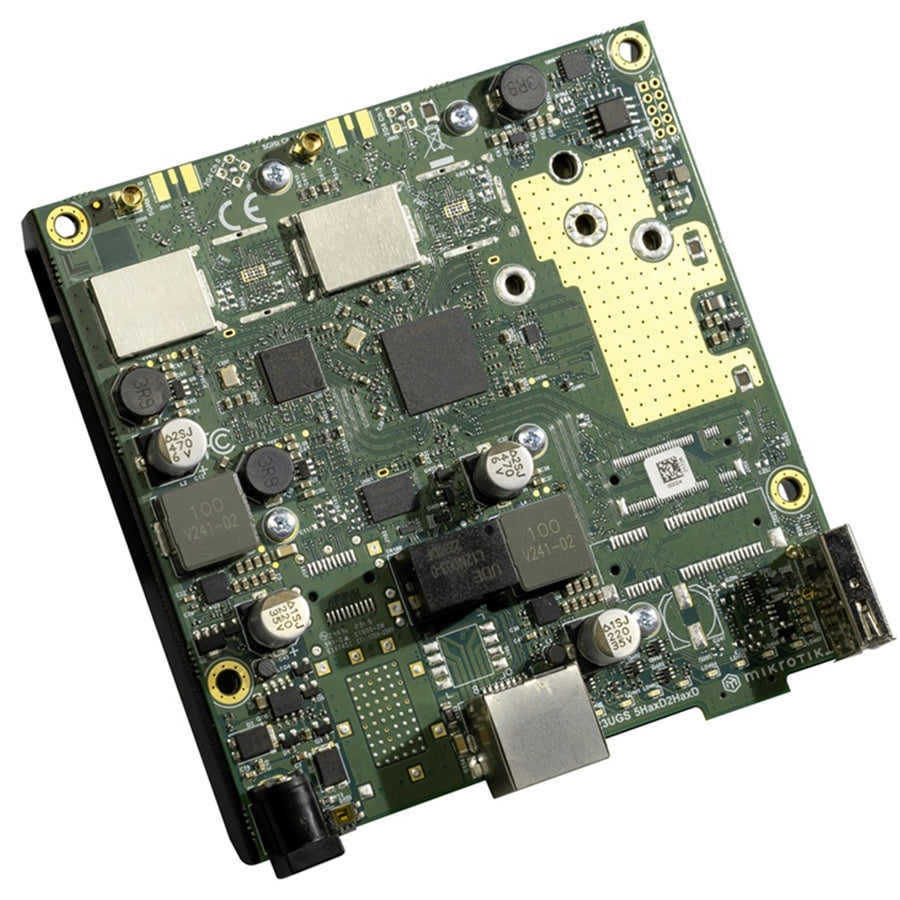

This tiny board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

The powerful Wi-Fi 6 radio with MMCX connectors enables further customization: add a HGO-antenna-OUT and you've got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

You can integrate L11UG-5HaxD in a variety of setups, such as vending machines, ATM's, ticket stations, and more, but for a standalone build you might want to order one of our aluminum cases. The same ones you would use for RB411, 911, 912 and 922, so they are reusable

Specifications

Technical Specifications

MPN L11UG-5HaxD
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6
Max TX power 28dBm
Max RX Sensitivity -96
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
10/100/1000 Ethernet ports 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5
Number of DC inputs 2 (DC jack, PoE-IN
DC jack input Voltage 12-28 V
Max power consumption 15 W
Max power consumption without attachments 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Certification CE, FCC, IC, EAC, ROHS
