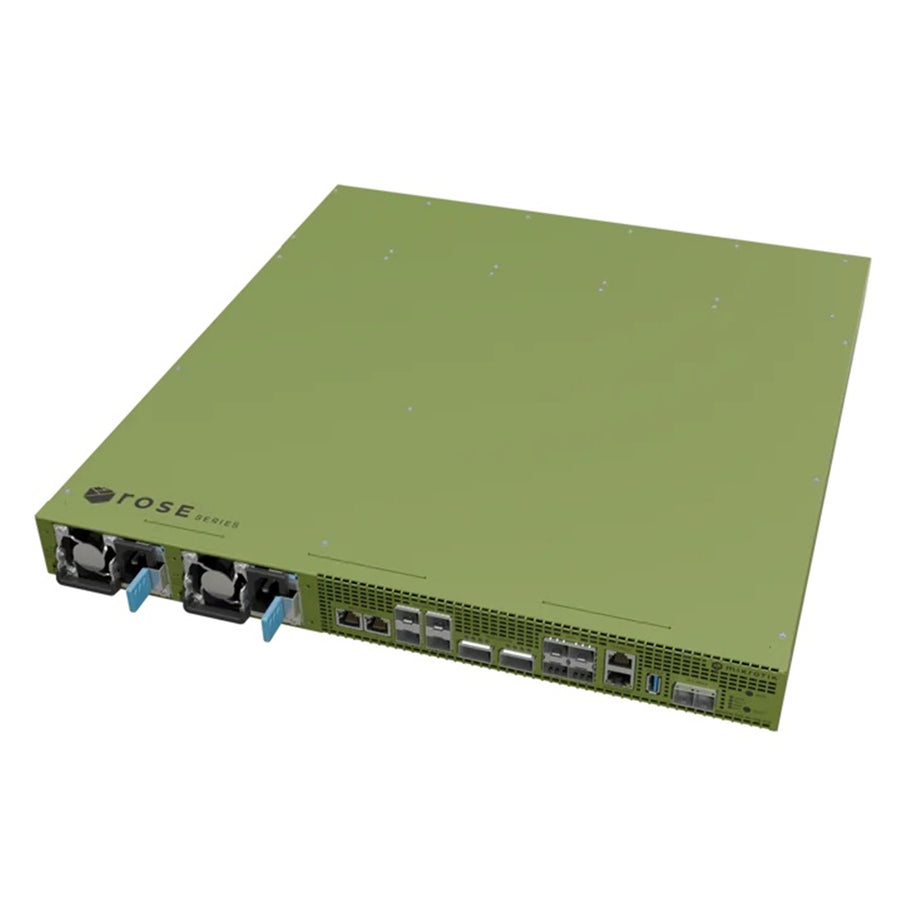

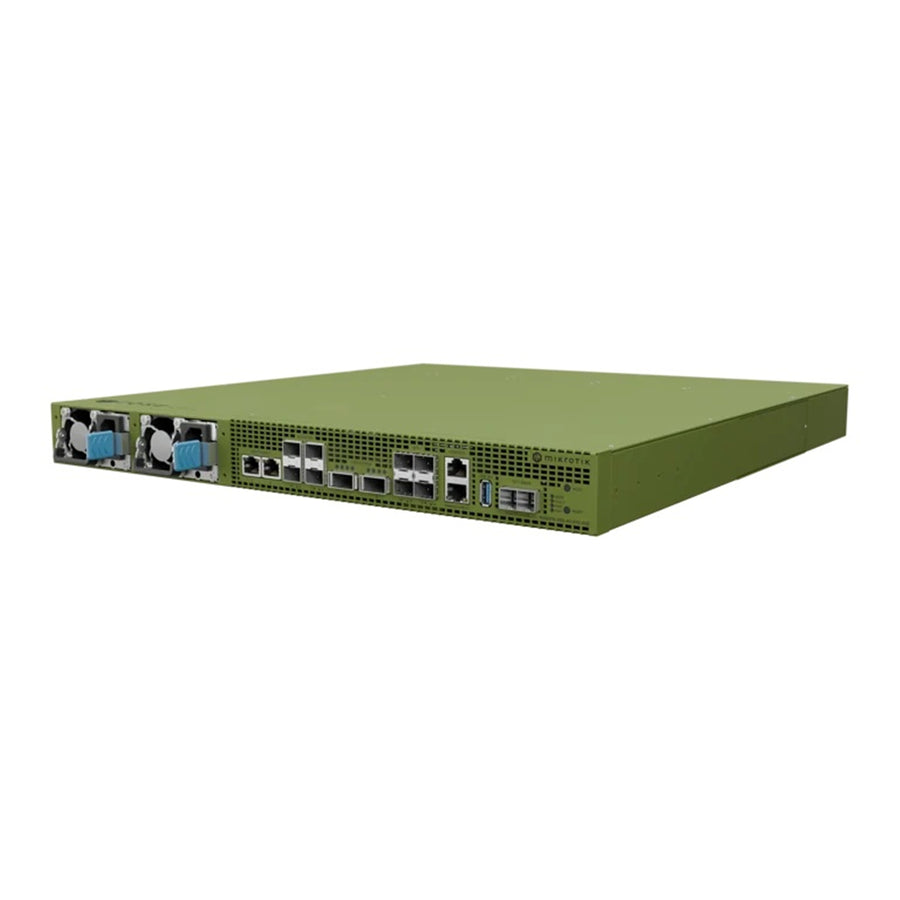

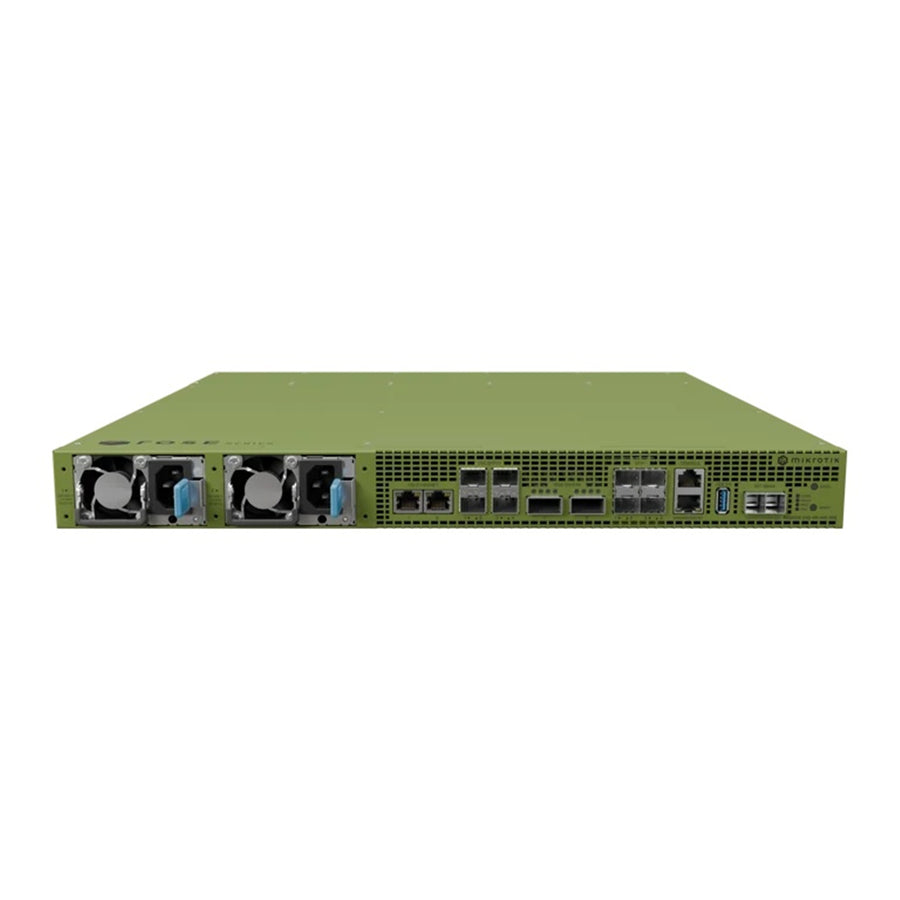

MikroTik ROSE Enterprise Data Server with 100G QSFP28 Ports
Features
ROSE Data server (RDS)
RDS is a high-performance, all-in-one storage, 100G networking, and container platform designed for enterprise environments. Featuring 20 U.2 NVMe storage slots and a special RouterOS Edition for Storage & Compute (ROSE).
Stop relying on the cloud. Own your infrastructure.
Third parties control your data. Should they? Your business, your files, your future - handed over to external providers with unclear policies and unknown risks. Introducing the Rose Data Server (RDS2216) - a high-performance, all-in-one storage, networking, and container platform designed for enterprise environments. Secure, scalable, and under your control.

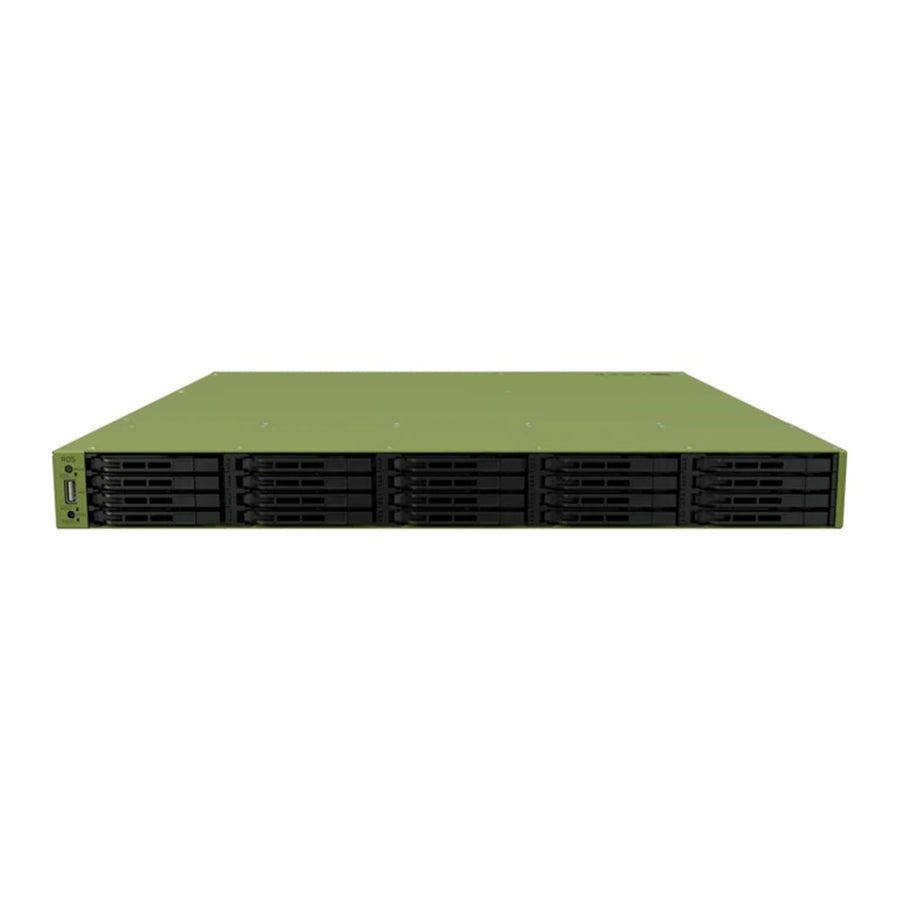

20 x U.2 NVMe's
Ultra-fast, high-density storage for demanding workloads.
100G high-speed networking
2× 100G QSFP28 ports, 4× 25G SFP28 ports, 4× 10G SFP+ ports, 2× 10G Ethernet ports, and an extra SFF-8644 interface for flexible connectivity.
16-core 2 GHz ARM CPU + 32GB DDR4 RAM
High-performance processing for networking, storage, and virtualization.
Massive energy savings
Cut power consumption and heat output while maintaining high performance - an ecofriendly solution for data-heavy environments.
Runs Router OS
The most flexible, modular networking OS. Supports advanced storage capabilities, including exporting block devices over NVMe-TCP, encryption layers, and modular storage configurations for scalable infrastructure. No subscriptions. No paywalls.
Includes dual hot-swappable power supplies
Ensuring uninterrupted operation and quick replacement without unnecessary downtime.
Container-ready
Run MinIO, Nextcloud, Shinobi, Frigate, and other OCI compliant containers with ease. Two USB ports have been added for additional devices and further adaptability.
One Device. Endless Possibilities.
It's a breakthrough in flexible networking and storage for the most demanding enterprise environments. Reliable 100-Gigabit connectivity. Ultra-fast NVMe storage support. Containers. Enterprise-grade performance.
Specifications
Technical Specifications
| MPN | RDS2216-2XG-4S+4XS-2XQ |
|---|---|
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| CPU Threads count | 16 |
| Switch chip model | 98DX4310 |
| Dimensions | 476 x 443 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS v7 (Special ROSE edition) |
| Size of RAM | 32 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 50°C |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 286 W |
| Max power consumption without attachments | 105 W |
| Cooling type | 10 fans |
| 10/100/1000 Ethernet ports | 1 |
| Number of 1G/2.5G/5G/10G Ethernet ports | 2 |
| SFP+ ports | 4 |
| Number of 25G SFP28 ports | 4 |
| Number of 100G QSFP28 ports | 2 |
| Serial console port | RJ45 |
| Number of USB ports | 2 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
| Number of M.2 slots | 2 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification | CE, EAC, ROHS |
| IP | 20 |
| Brand | MikroTik |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.5 kg |
