Milesight 4MP 4G,WiFi and Ethernet Solar-powered LPR Security Camera kit

SKU: SP111-ANPR-KIT ● In Stock
$5,169.29
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

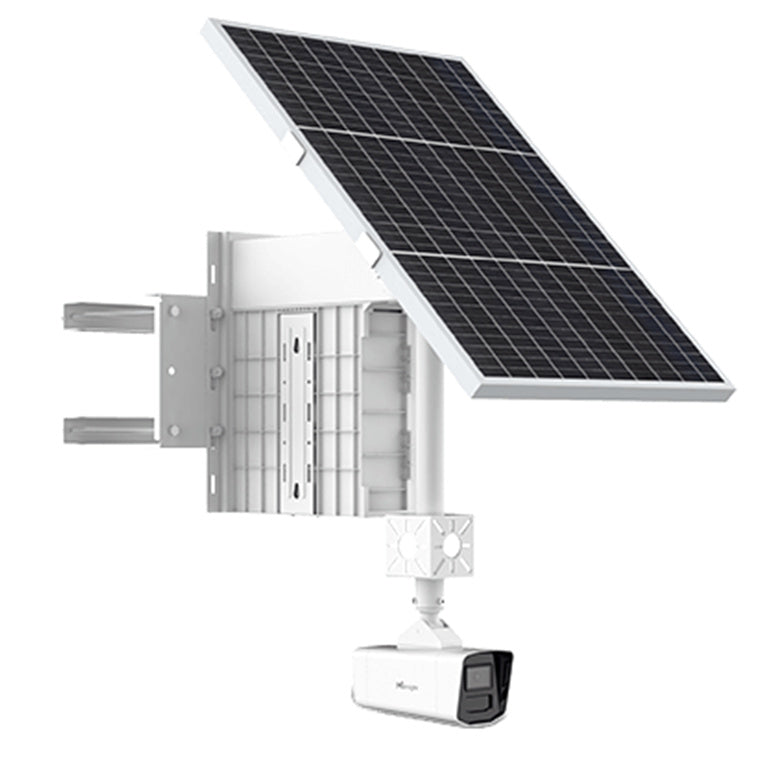

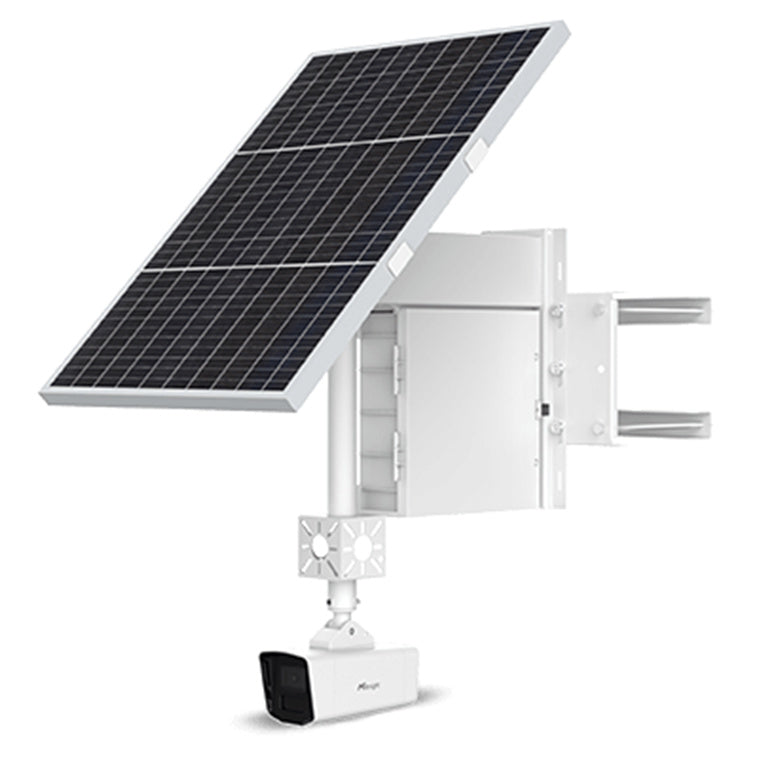

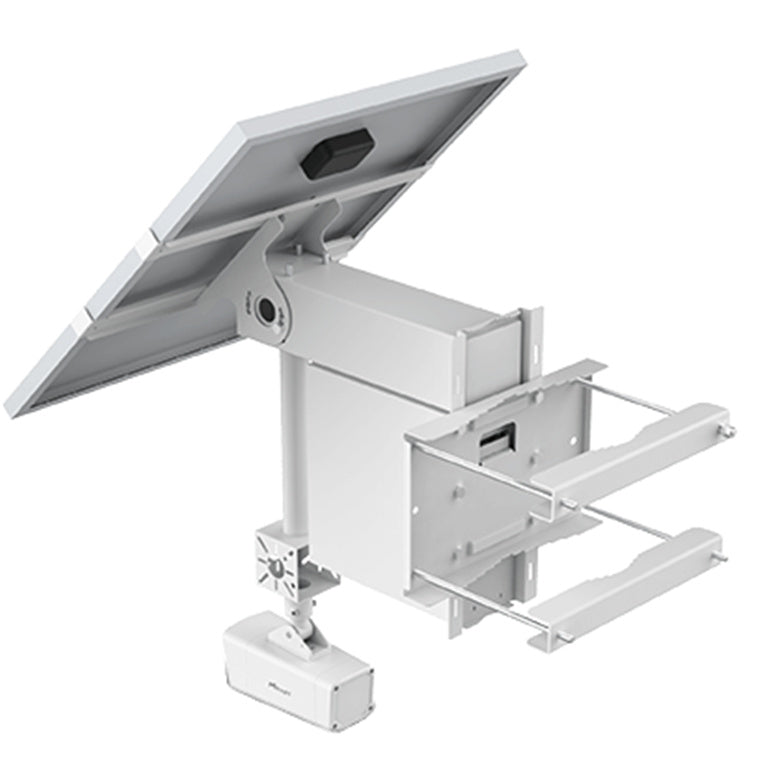

Milesight 4MP 4G Solar-powered LPR Security Camera kit

- 4G + Solar-powered for Quick Installation
- 4MP High-Quality Images
- 95% Vehicle Capture Rate & LPR Accuracy
- Built-in High-Accuracy GPS Module
- Up to 6*90Wh Battery & 2*90W Solar Panel
- 9-Day Battery Life with Continuous Recording
- Flexible Working Mode for Enhanced Efficiency
- vGRID SaferCity Platform Compliant




Specifications

Technical Specifications

Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.6B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Wave Length 850nm/740nm
IR Distance Up to 20 m (65.62 ft)
S/N >55dB
Lens 16mm
Mount M12
Field of View H19.4°/D22.2°/V11°
DORI D: 341 m, O: 134 m, R: 67.2 m, I: 33.6 m
Max. Image Resolution 4MP (2688*1520)
Primary Stream 60Hz/50Hz: 15fps@ (2688*1520, 2304*1296, 1920*1080, 1280*720)
Secondary Stream 60Hz/50Hz: 15fps@ (1280*720, 704*576, 640*480)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 4 areas (Mask)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Web Access WIFI/VPN/Milesight VMS
Alarm I/O Input *1, Output *1
Audio I/O Input *1, Output *1
RS485 1
WLAN 802.11n/802.11g
Cellular 4G LTEAU: LTE-FDD(B1/2/3/4/5/7/8/28) ; LTE-TDD(B40)
Coverage Up to 2 lanes
Recognition Accuracy = 95%
Max. Vehicle Speed Vehicles with a speed of = 70 km/h (43.5 mile/h)
Attributes Identification Vehicle Type, No-plate Vehicle Capture, White/Black List Management
Country Region Supported More than 80 countries and regions
White/Black List Up to 20,000 records inside the camera
GPS Built-in High-accuracy GPS Module
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
Event Trigger Intelligent Analytics, External Input, etc.
Event Action HTTP/MQTT Post, FTP Upload, SMTP Upload, SD Card Record, External Output, etc.
System Compatibility ONVIF Profile G & M & S & T, API
Working Temperature Charging: -20 °C to 45 °CDischarging: -20 °C to 60 °C
Working Humidity 0~95% (Non-condensing)
Power Supply DC 12V±10%
Power Consumption Sleep Mode: 0.19 WBasic: 1.72 W (ANPR + 4G Module OFF)Max: 3.51 W (Illuminator + ANPR + 4G streaming ON)Performance Mode:Up to 9 days of battery life in cloudy/rainy conditions(Optional up to 6 batteries. 4 batteries provide 6 days of continuous use, and 6 batteries provide 9 days of continuous use).
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance
Camera Dimensions 120*120*260 mm
Camera Weight 2.2kg
Kit Dimensions 1050*1150*592 mm
Kit Weight 30.8kg34.6kg (With package)
Safety Features Over-temperature, over-discharge, over-voltage and low-temperature protection of battery; overload and short circuit protection of load.
Interface M12 (8-pin) * 6: Battery ConnectionM12 (6-pin): Solar Panel InputM12 (4-pin): DC InputM12 (5-pin): Output (including RS485)M12 (2-pin): Output
Power Output 9 to 12.6 VDC, Max. 25.2 W
Battery Type Ternary lithium battery
Battery Modules in Kit Default: 4 units of B90;Optional: 5/6 units of B90
Battery Capacity (Energy Capacity) 90 Wh360 Wh (4 units of B90)
Battery Capacity (Charge Capacity) 8400mAh33.6 Ah (4 units of B90)
Rated Voltage 10.8V
Maximum Charging Voltage 12.6V
Rated Charging Current 1680mA
Rated discharge current 1680mA
Max. Charging Current 3000mA
Max. Discharge Current 3000mA
Internal Resistance <150mO
Charging Time 5H/0.2C
Battery Life More than 500 cycles
Operating Temperature Charge:-20~45°CDischarge:-20~60°C
Operating Humidity 30% ~ 90%
Storage Temperature 0~45°C
Storage Humidity 40% ~ 70%
Port Type M12 8-core waterproof connector
Weight 640g (Single cell battery)730g (Single cell battery with packaging)
Dimensions 125*48*95 mm
