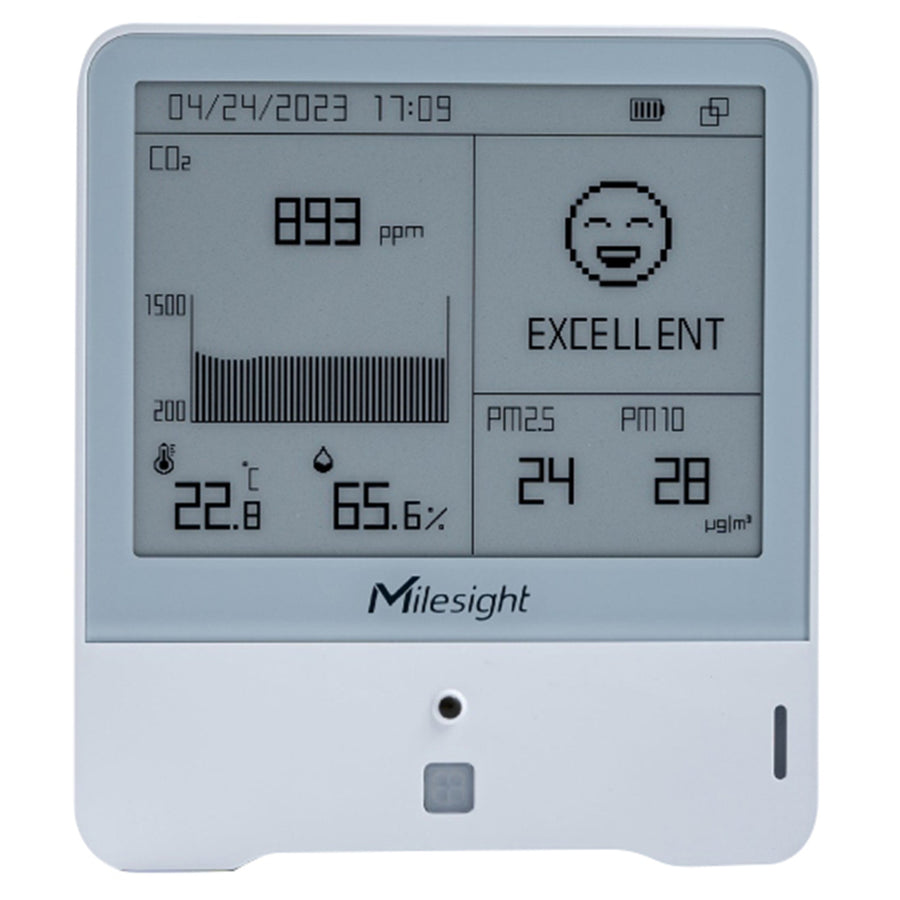

Milesight AM308-915M LoRaWAN 8 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, Light, Motion, CO2, TVOC, Barometric Pressure, PM2.5 and PM10
Features
The Milesight AM308-915M is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.
- Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN® gateways and network servers
- Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO2, TVOC, Pressure, PM2.5, PM10)
- Perfect device for Environmental Monitoring for Business, Education and Homes
Higher Accuracy with Better Insulation Design
Placement for temperature and humidity sensors is designed to isolate the heat generated when the chip is operating.
Superior Sensor with Strong Anti-Interference
Selection for HCHO sensor is dedicated to stable reading, particularly in its resistance to alcohol.
Indoor Comfort Level Understand Your Environment Visually
Monitor and display real-time data on what matters in your indoor air quality.
More Features with Bigger E-Ink Screen
AM308 equips with a 4.2-inch E-ink screen to show the real-time ambience conditions in many ways.
Smart Screen Mode for Energy-Saving Operations
When PIR value is 0 (Vacant) and last for 20 mins, the screen will stop updating to save power.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
Technical Specifications
| MPN | AM308-915M |
|---|---|
| Frequency | AU915 or AS923 switchable |
| Tx Power | 22dBm |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Temperature Range | Digital CMOSens® technology (MEMS) -20°C - 60°C, Accuracy ± 1°C, Resolution 0.1°C |
| Humidity | Digital CMOSens® technology (MEMS), Range 0% - 100% RH, Accuracy ± 2%, Resolution 0.5% RH |
| Motion | Passive infrared (PIR), Detection Range 80 ° Horizontal, 55 ° Vertical, Range 5 m, Status Vacant/Occupied |
| Light | Photodiode, Range 0-60000 Lux (display as 6 levels, 0-5) |
| TVOC | MOX (MEMS), Range |
| Barometric Pressure | Piezoresistive absolute pressure sensor (MEMS), Range 260 - 1260 hPa, Accuracy ±0.5 hPa, Resolution 0.1 hPa |
| Carbon Dioxide (CO2) | Nondispersive Infrared (NDIR), Range 400 - 5000 ppm, Accuracy |
| PM2.5,PM10 Range | Laser Scattering, Range 0 - 1000 µg/m3, Accuracy |
| Display & Configuration | 4.2-inch Black & White E-Ink Screen |
| Button | 1 × Power Button + 1 × Reset Button |
| LED & Buzzer | 1 × Traffic Light Status Indicator + 1 × Buzze |
| Configuration | 1. Mobile App via NFC, 2. PC software via NFC or USB Type-C port |
| Power Supply | 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries, 2. 5V/1A by Type-C Port |
| Battery Life4 (10 min interval) | Over 1 Year |
| Operating Temperature | -20°C - 60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 10% - 90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in) |
| Installation | 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting |
| Regulatory | CE, FCC |
| Environmental | RoHS |
| Brand | Milesight |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > IoT Gateways |
| Weight | 0.5 kg |
