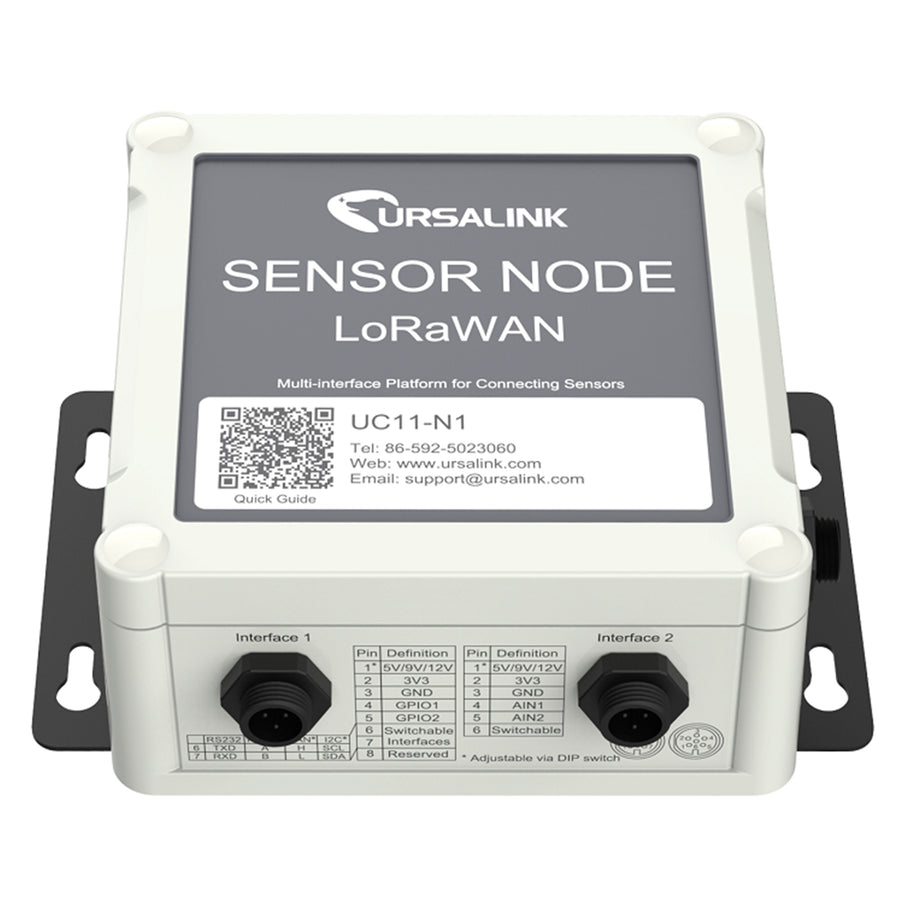

Milesight UC11-N1-868 - Ursalink LoRaWAN EU868 IoT Client with GPIO, RS232/RS485 switchable, 3.3V output and 5/9/12 V output
$46.95
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Ursalink LoRaWAN EU868 IoT Client with GPIO, RS232/RS485 switchable, 3.3V output and 5/9/12 V output. The UC11-N1 is a fully integrated, battery powered LoRaWAN node with multiple communication interfaces for connecting to a wide range of IoT external sensors.
- IP67 waterproof for harsh environments
- Multiple interfaces including serial and I/O
- Up to 11km communicate range
- Standard LoRaWAN v1.0/v1.0.2 protocol support
- Ursalink Cloud compliant
- Multiple power supply option: battery, DC or solar
- 5 years life under LoRaWAN Class A mode

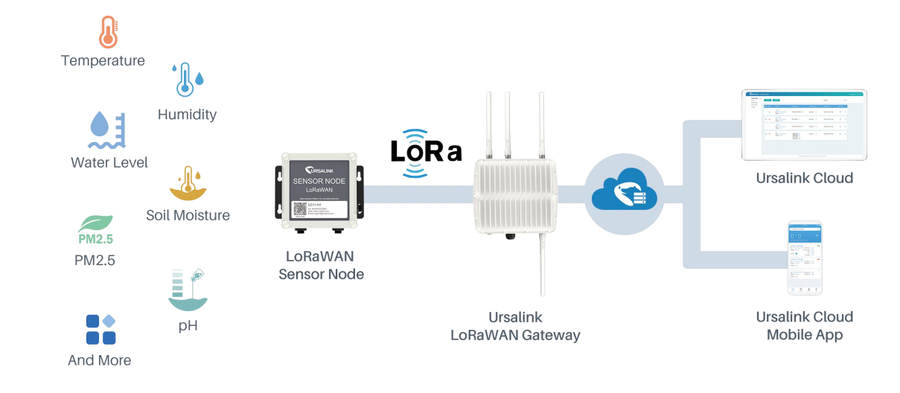

Application Example
Specifications
Technical Specifications
| Frequency | EU868 |
|---|---|
| Tx Power | 20dBm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface 1 | 2 × GPIO, 1 × RS232/RS485 (switchable), 1 × 3.3 V output, 1 × 5/9/12 V output switchable |
| Interface 2 | 2 × Analog input (4-20mA or 0-10V switchable), 1 × 3.3 V output, 1 × 5/9/12 V output switchable |
| Operating Temperature | -20°C to +70°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in) |
| Power Input | 1. 19000mhA replaceable Li-SOCL2 battery, 2. 5-24 VDC with 5000mhA battery backup |
| Brand | Milesight |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
