Milesight IoT UC1122-868 - Ursalink LoRaWAN EU868 Remote Client with Digital/Analog Input and Relay Output

Features

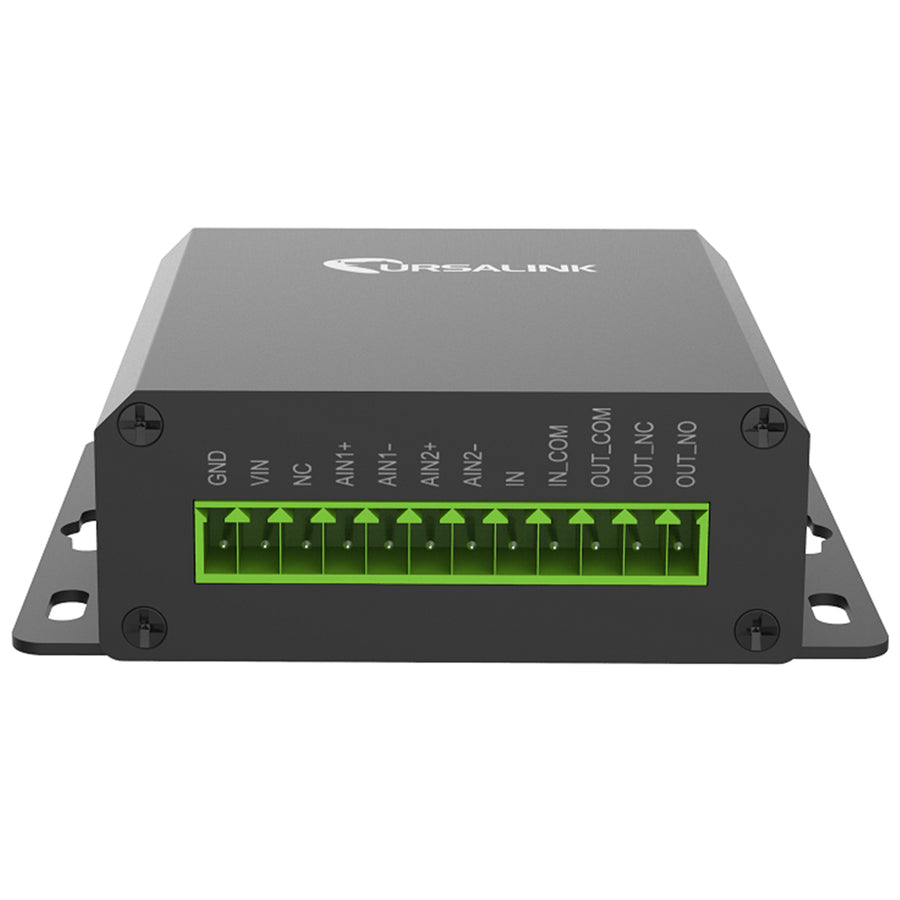

Ursalink LoRaWAN EU868 Remote IoT Client with Digital/Analog Input and Relay Output. Ursalink UC1122 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 DC signal, 1 drivable relay output and 2 analog inputs. With the aid of Ursalink UC1122, the alarm condition brings attention to engineering personnel immediately. The output can be connected to an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1122 .

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud

- Easy operation anywhere and anytime
- 1 relay drivable output and 1 digital input connected with 1 DC signal
- 2 analog inputs for data acquisition
- Support for 4-20 mA analog devices
- Analog to digital conversion
- Customizable conditions & programmable actions
- Send uplink alert messages according to user-defined conditions
- Automatic switching of field devices at set times
- Comply with the LoRaWAN Class C protocol
- Support star network and mesh network
- High Rx sensitivity and adjustable Tx power
- Up to 10km communication distance with omni-directional antenna

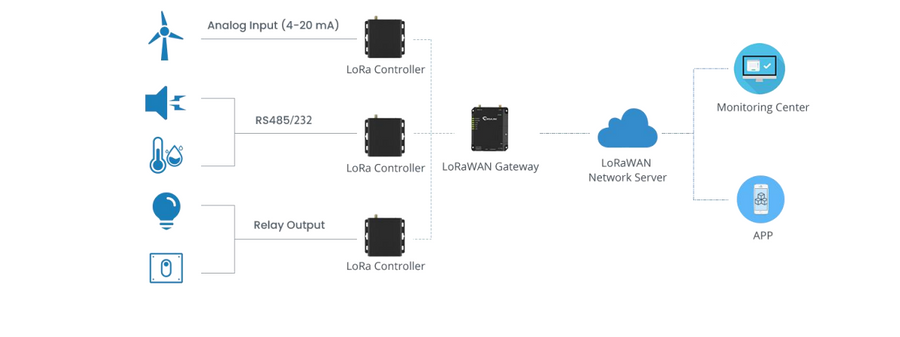

Application Example

Specifications

Technical Specifications

Antenna 50 Ohm SMA Antenna Interface
Frequency Band EU868
Sensitivity -147 dBm @300bps
Output Power 20dBm
Protocol LoRaWAN Class C
Analog Input 4-20 mA (0-5 V Optional), Differential inputs, 12 bit
Digital Input Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V Low Voltage: +1V max
Digital Output 1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC @ 3A
IO Connector type Screw Terminals
DC Power Supply 5-24 VDC
OperatingTemperature -40degC to +70degC
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
