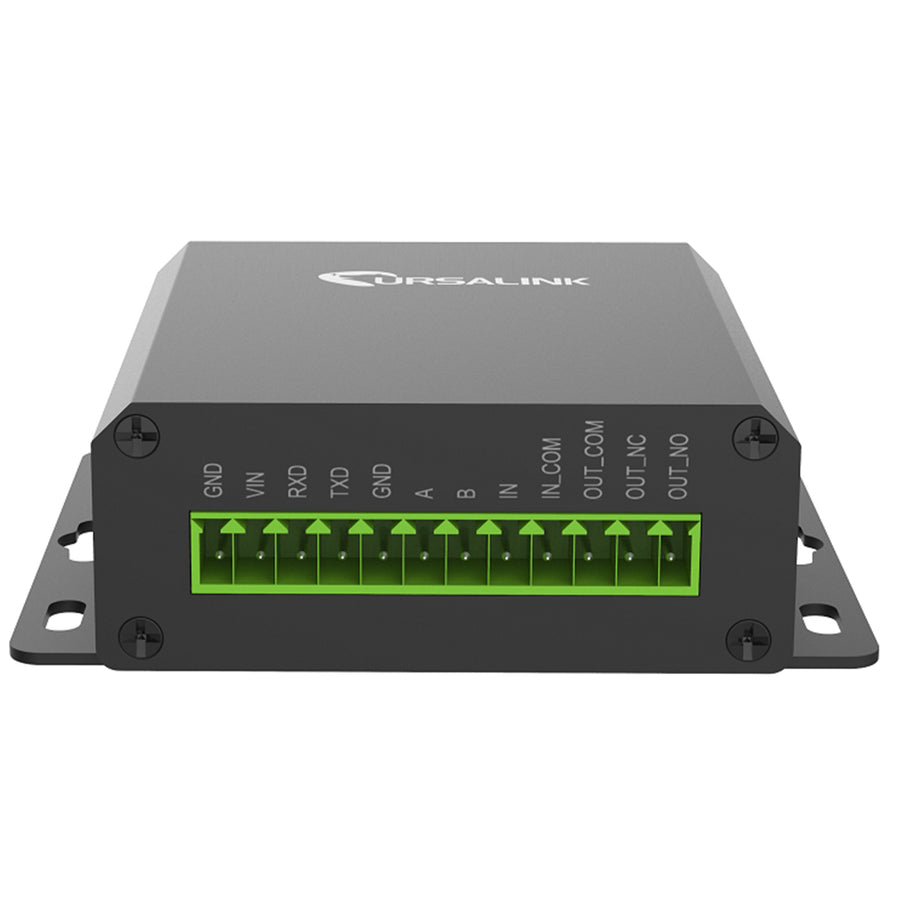

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote Client with RS232, RS485 and Digital I/O
Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote Client with RS232, RS485 and Digital I/O
Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote Client with RS232, RS485 and Digital I/O
Milesight IoT

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote Client with RS232, RS485 and Digital I/O

SKU: UC1152-868 ● In Stock
$44.85
Free shipping over $299 Genuine product 7-day returns

Milesight IoT UC1152-868 - Ursalink LoRaWAN EU868 Remote Client with RS232, RS485 and Digital I/O

Features

Ursalink LoRaWAN EU868 Remote IoT Client with RS232, RS485 and Digital I/O. Ursalink UC1152 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 RS485, 1 RS232, 1 DC signal and 1 drivable relay output. With the aid of Ursalink UC1152, the alarm condition brings attention to engineering personnel immediately. The output can be to with an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1152.

Ursalink is a professional IoT company that leverages the top trending technologies to simplify the process of data collection, storage and retrieval in order to accomplish the goal: connecting "things" to the Cloud.

- Easy operation anywhere and anytime
- 1 relay drivable output
- 1 digital input connected with 1 DC signal
- Offer serial interface with 1 RS232 and 1 RS485
- Collects data from Modbus slave device
- Integrate legacy serial and I/O devices into cloud
- Customizable conditions & programmable actions
- Send uplink alert messages according to user-defined conditions
- Automatic switching of field devices at set times
- Comply with the LoRaWAN Class C protocol
- Support star network and mesh network
- High Rx sensitivity and adjustable Tx power
- Up to 10km communication distance with omni-directional antenna

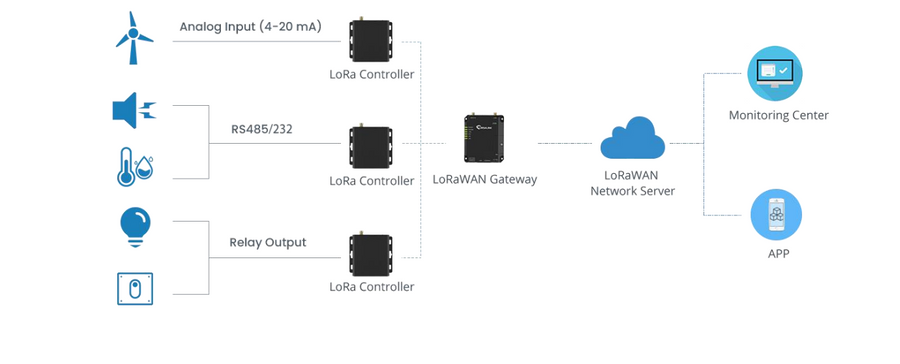

Application Example

Specifications

Technical Specifications

Antenna 50 Ohm SMA Antenna Interface
Frequency Band EU868
Sensitivity -147 dBm @300bps
Output Power 20dBm
Protocol LoRaWAN Class C
RS485 Baud rate: 2400-115200bps, Protocol: Modbus RTU
RS232 Baud rate: 4800-115200bps
Digital Input Opto-isolated depending on voltage. Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V, Low Voltage: +1V max
Digital Output 1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VD C @ 3 1 x SPDT Relay Contact Rating: Maximum Load Current: 250VAC/30VDC @ 3AA
Connector type Screw Terminals
DC Power Supply 5-24 VDC
Operating Temperature -40degC to +70degC
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
