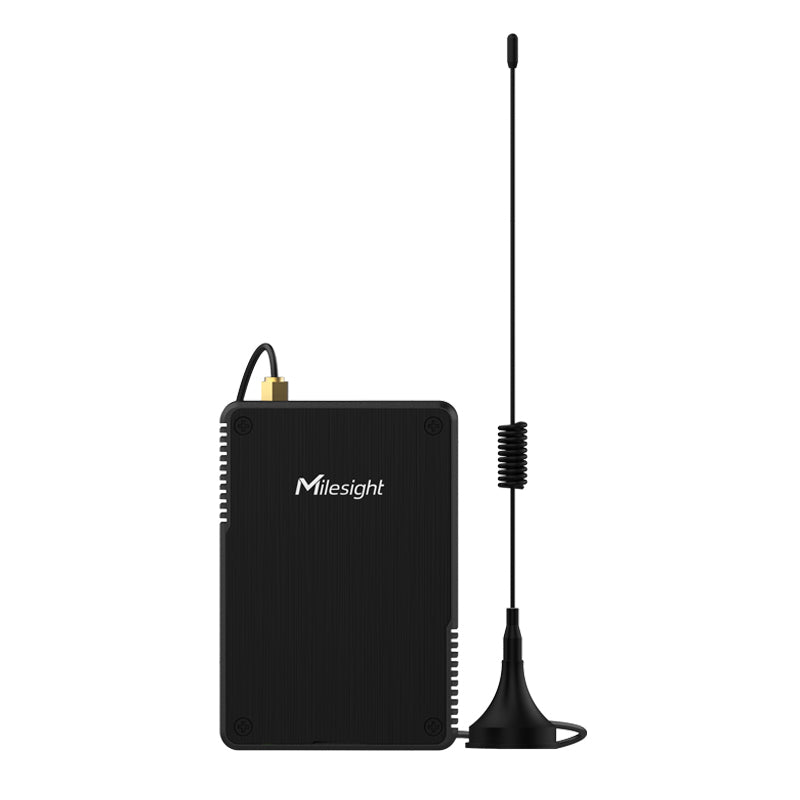

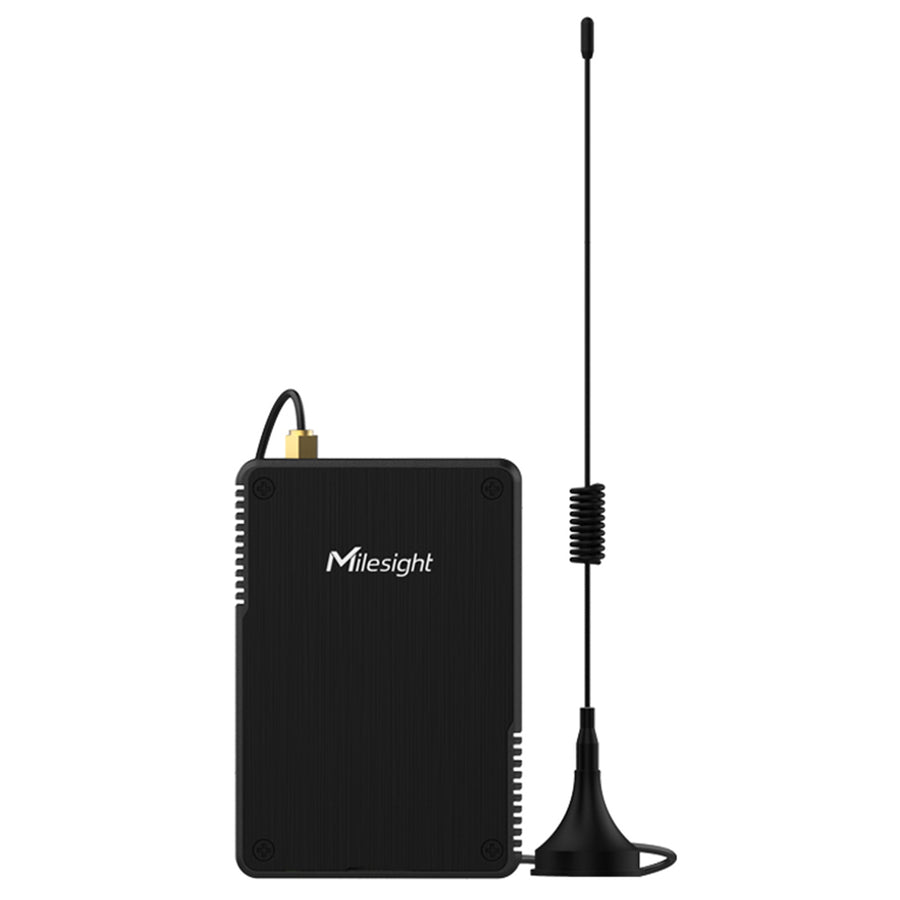

UG56-L04AU-915M - Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with Cellular Backhaul and PoE support
Features

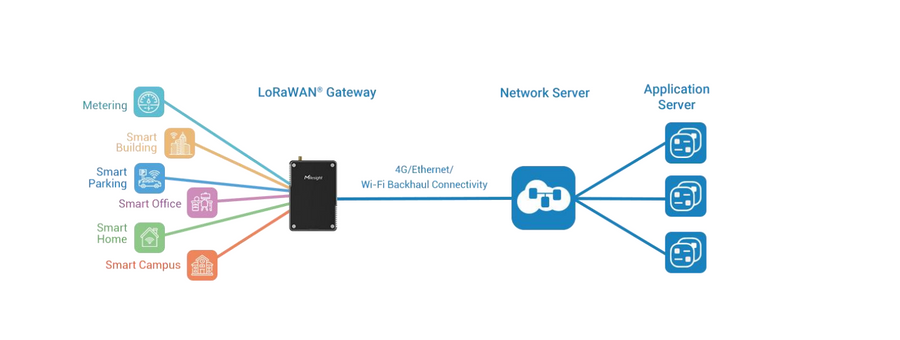

The Milesight UG56 is a robust 8-channel indoor LoRaWAN AU915/AS923 IoT gateway. Adopting the SX1302 chip and a high-performance quad-core CPU, the UG56 supports connection with more than 2000 nodes. It also has line of sight up to 15 km and can cover about 2 km in urban environments, which is ideally suited to smart buildings, smart industries and many other indoor applications. The UG56 supports not only multiple back-haul backups with Cellular, Ethernet and Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.), and a built-in network server and Milesight IoT Cloud for easy deployment. These gateways are also compatible with Scopious IoT.
- Quad-core industrial processor with big memory
- NXP Quad-Core Processor
- Semtech SX1302 LoRa Chip
- 4g Cellular Backhaul
- Multiple Backhaul Connectivity options
- Embedded Network Server
- IP30 Rated
- Compatible with Multiple Network Servers
- Supports Listen Before Talk (LBT)
- Milesight Cloud compliant
- Supports 2000+ end devices
Specifications
Technical Specifications
| Manufacturer's Code | UG56-L04AU-915M |
|---|---|
| CPU | Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Extendable Storage | 1 × Micro SD Slot (Internal) |
| LoRaWAN Antenna Connector | 1 × 50 O SMA Connector (Center PIN: SMA Female) |
| Channels | 8 (Half-duplex) |
| Frequency Bands | AU915/AS923-1&2&3&4 |
| Sensitivity | -140 dBm Sensitivity @292bps |
| Output Power | 27 dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class CLBT Support |
| Ethernet Interface Port | 1 × RJ45 (PoE PD supported) |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Wi-Fi Antenna | Internal |
| Standards | IEEE 802.11b/g/n, 2.4 GHz |
| Mode | AP or Client mode |
| Security | WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Reset Button | 1 × RST (Internal) |
| Console Port | 1 × Type-C |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Apps | Python SDK, Node-RED |
| Power Input | 1 × 802.3 af PoE Input or 5V, 2A by Type-C Port |
| Power Consumption | Typical 1.8 W, Max 6.9 W |
| Ingress Protection | IP30 |
| Housing & Color | Metal, Black |
| Dimensions | 110 x 75 x 24 mm |
| Installation | Desktop, Wall Mounting |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C |
| Cellular | 4G Connectivity |
| Brand | Milesight |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
