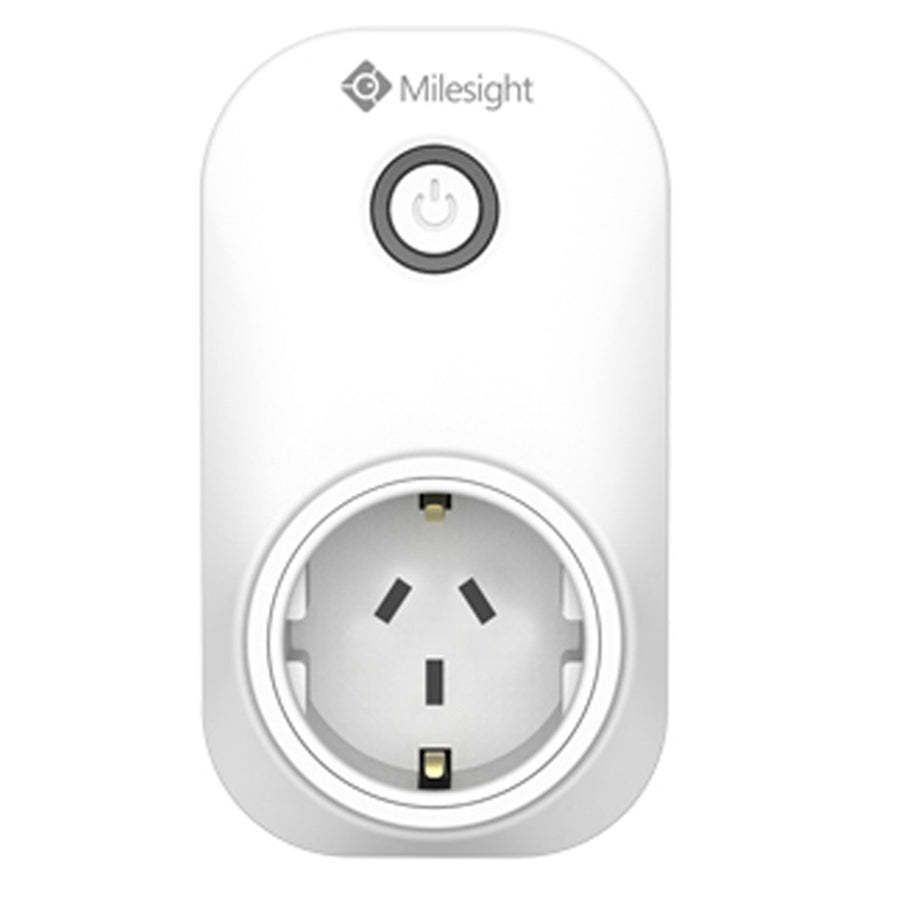

Milesight LoRaWAN AS923 Portable Smart Socket
Features
The Milesight WS523 is a LoRaWAN based smart portable socket for monitoring and control of electrical appliances. Adopting most of international socket standards, WS52x can be used for turning electrical devices on and off locally or remotely and measuring power consumption data of things plugged into it. It can even send overcurrent alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, the WS523 can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.
- Plug and play without any wiring
- Turn devices on/off and create on/off schedules remotely
- Collect current, voltage, electrical consumption with support for overload protection
- Ultra-wide-distance wireless transmission up to line of sight of 15 km
- Equipped with NFC for one touch configuration and supports card emulation mode
- Functions well with standard LoRaWAN® gateways and network servers
- Compliant with Milesight IoT Cloud
Specifications
Technical Specifications
| Manufacturer's Code | WS523-10A-AU-915M |
|---|---|
| Frequency | AU915/AS923 |
| Tx Power | 22 dBm |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Socket & Plug Type | AU |
| Operating Voltage | 100~250 VAC, 50~60 Hz |
| Max Load Capacity | 10A (16A Optional), 250 VAC |
| Measurement | Voltage(VAC), Current(A), Power Factor(%), Power Meter(kWh) |
| Software Configuration | NFC |
| Power Control | Button or Remote Control |
| Advanced Features | Schedule Switch, Button Lock, Overcurrent Protection/Alarm |
| LED Indicator | 1 |
| Button | ON/OFF, Reset |
| Material | White Polycarbonate |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Dimensions | 110 × 62 × 35 mm |
| Package Contents | LoRa Portable Socket, QSG, warranty card |
| Brand | Milesight |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > IoT Gateways |
| Weight | 0.5 kg |
