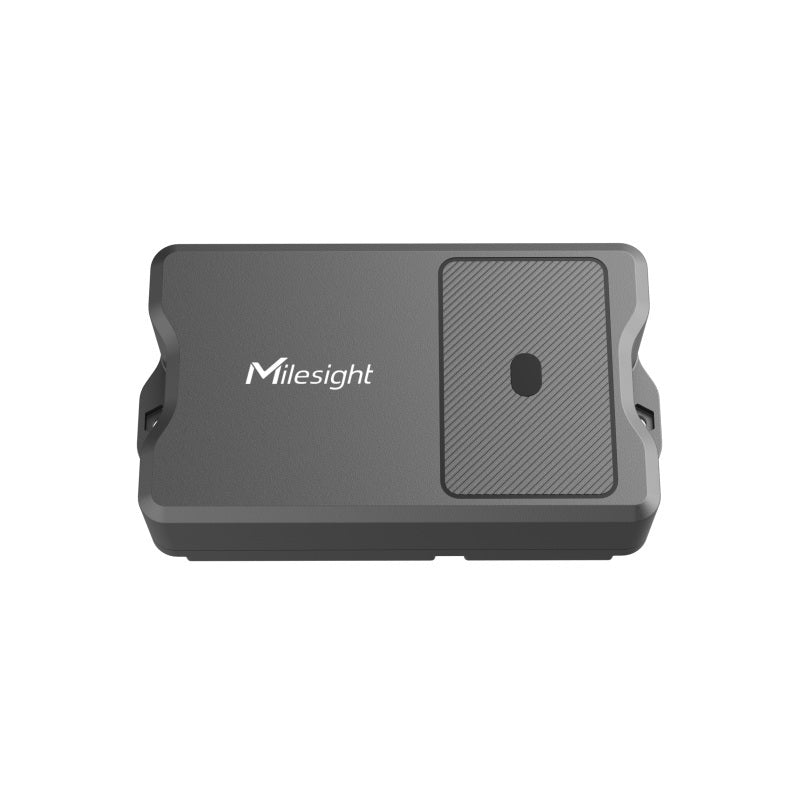

Milesight NB-IoT/CatM EM400-TLD TOF Laser Distance Sensor with IP67 Case

SKU: EM400-TLD-N03GL ● Out of Stock
$357.42
Free shipping over $299 Genuine product 30-day returns

EM400-TLD-N03GL

Milesight NB-IoT/CatM EM400-TLD TOF Laser Distance Sensor with IP67 Case

Description

Milesight NB-IoT/CatM EM400-TLD TOF Laser 2 to 350cm Distance Sensor with IP67 Case. EM400-TLD is a highly specialized product among the EM400 Series, which is designed for small & mini trash bins, boasts a range of powerful features, including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion. With pre-set modes that save users from configuration, EM400-TLD is the ideal solution for smart waste management, providing a long-lasting performance that customers can rely on. Additionally, its availability in both LoRaWAN® and NB-loT versions allows for a variety of application scenarios.

Perfect for smart buildings, smart city deployments or industrial use-cases.

Features
  • Long-Lasting Battery Life of up to 10 Years
  • Rugged and Reliable IP67 Rated Enclosure
  • Positioning Function Enabled by GNSS Modules (NB-IoT version)
  • LoRaWAN & NB-IoT & CAT M Versions Available
  • 3-in-1 Sensor Specialized for Smart Waste Management (Fill Level, Device Position, and Combustion)
  • High Accuracy and Almost No Blind Spot
  • Two Pre-set Modes for Seamless User Experience

Specifications

Details
Manufacturer's Code EM400-TLD-N03GL
NB-IoT/Cat M Version Cellular Band Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85, Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
SIM Slot 1 (Micro SIM-3FF), 1.8V
Application Mode TCP/UDP/MQTT/AWS
Distance ToF FoV 27°
Detection Range 2 ~ 350 cm
Detection Accuracy ±2 cm (- 20°C ~ 70°C)
Detection Resolution 1 mm
Device Position Status Normal/Tilt
Temperature Range -40 ~ 125°C
Resolution 0.1°C
GNSS Positioning (NB-IoT/Cat M Version Only) Parameters: Longitude/Latitude, Resolution: 0.000001
LED 1 × LED Indicator (Internal)
Button 1 × Power/Reset Button (Internal)
Power On & Off NFC, Power Button (Internal)
Configuration Mobile App (via NFC), Downlink
Advanced Features Cumulative Report (NB Version), Threshold Alarm, Tilt & Distance Switch
Power Supply 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life NB-IoT/Cat.M Version: TCP/UDP - Around 10 Years, MQTT/AWS - Around 5 Years (4 Times Report per Day, per Report Includes 12 Packages with 30-min Collection Interval, 25°C)
Operating Temperature - 30°C ~ 70°C
Relative Humidity ≤95% (non-condensing)
Ingress Protection IP67
Dimension 118 × 65 × 30 mm
Housing & Colour ABS + PC (UL94 V0), Black gray
Weight 208.3g (Batteries included)
Installation On the Flat Surfaces with Screws
Regulatory CE, FCC
Environmental RoHS
