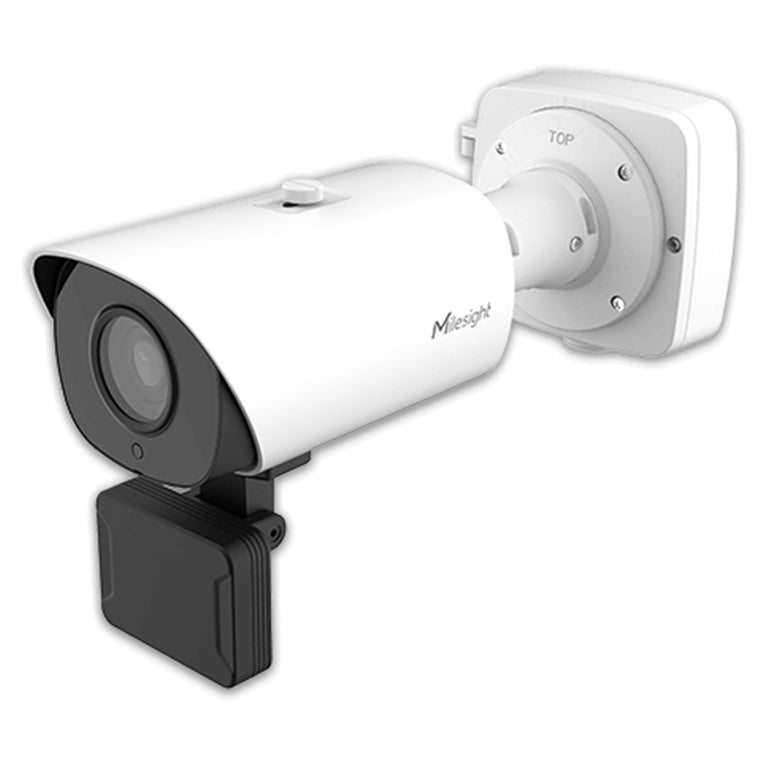

Milesight NDAA AI License Plate Recognition (LPR/ANPR), Radar 2MP Bullet IP Speed Camera with High Frame rate
Features
Milesight AI License Plate Recognition (LPR/ANPR), Radar 2MP Bullet IP Speed Camera has a radar detection technology that uses radio waves to determine the velocity, range, or angle of objects. The Milesight 3D radar camera can locate the vehicle position and direction with high accuracy. Verified by 3D radar and AI-powered LPR algorithm, the Radar AI LPR 12x Pro Bullet Plus Network Camera can precisely provide real-time information of detection distance, speed capture and flow control, greatly optimizing traffic monitoring, and ensuring the safety of public transport.
- Integrated 3D Radar, AI and LPR into One
- 3D Radar Vehicle Detection
- AI License Plate Recognition (LPR/ANPR)
- 200km/h Max. Vehicle Speed detection
- 90m Detection Distance
- 95% Accuracy
- 1/2 Sensor
- 100fps
- 12x(5.3~64mm AF Lens)
- Super WDR
- ONVIF
- 802.3at PoE Powered
- vGRID SaferCity Platform Compliant
Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.
Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.
LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent AI road traffic monitoring. It also supports manual export and auto export for easy management.
Advanced 3D Radar Technology
3D Radar, AI and LPR are innovatively combined to one camera that not only enables to identify vehicles and read plates accurately, but also provides extra real-time data of vehicle speed and direction. Additionally, the high environmental adaptability of radar module offers precise detected data in any weather conditions.
Intelligent AI-powered LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Radar Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, make, color, etc., generating reliable traffic insights to improve safety and mobility.
Easy Deployment and Compact Structure
As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. The well-designed integrated junction box and versatile interfaces ensure installation efficiency.
Specifications
Technical Specifications
| Manufacturer Product Code | TS2966-X12TVPE |
|---|---|
| Name | AI Road Traffic Radar Pro Bullet Plus Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @ F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Illumination Distance | Up to 70m during the day; Up to 35m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| Lens | 5.3~64mm, 12x Optical Zoom |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Manual |
| Iris Control | Auto |
| Video Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps @ (1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps @ (704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 50fps @ (704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Max. Vehicle Speed | 200km/h |
| Recognition Accuracy | 95% |
| Coverage | Support simultaneous detection of 4 regions |
| White/Black List | Up to 1000 records inside the camera |
| Smart Traffic Detection | License Plate Recognition, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection |
| Working Frequency | 60GHz, 61~62GHz |
| Capture Rate | 99% (Traffic jam >95%) |
| Lane Coverage | 1~4 Lanes (Recognition =95% individually |
| Tracking Target | Up to 32 |
| Speed Detection Range | ±5km/h~±200km/h |
| Speed Detection Accuracy | ±0.36km/h |
| Detection Distance | Up to 90m |
| Distance Detection Accuracy | ±0.4m |
| Angle Measurement Accuracy | ±0.5° |
| Installation Height | 2~7m |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Supported |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| System Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Input, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General Working Temperature | -40?~60? |
| Working Humidity | 5~95%(Non-condensing) |
| Power Supply | PoE(802.3at)/DC 12V±10% |
| Power Consumption | 9W MAX, 16W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated Metal Housing (Without Radar Module) |
| Surge Protection | 4KV |
| Dimensions | 320mm x 134mm x 126mm/ 320mm x 134mm x 171mm (With Radar module) |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Bullet Cameras |
| Weight | 0.5 kg |
