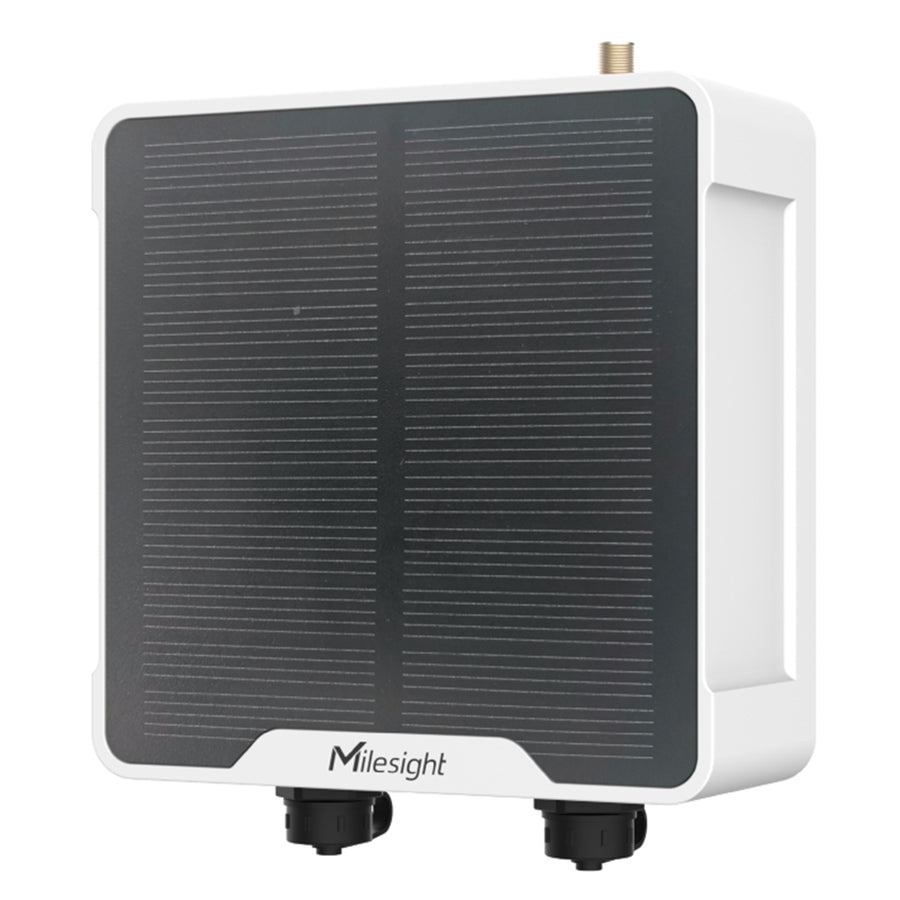

Milesight UC501-EA AU915/AS923 Solar Powered LoRaWan Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12
Features
The Milesight UC501 V3 is a LoRaWAN® controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.
UC501 V3 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. The upgraded V3 Version also features External LoRa Antenna connector allowing for more remote placement with external antennas used.
This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retro-fitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.
- Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485/SDI-12
- Long transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- External Lora Antenna
- Solar powered with rechargeable Battery
- Quick wireless configuration via NFC
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications
Technical Specifications
| Frequency | AU915/AS923 |
|---|---|
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-Coded Male, SMA-Female connector |
| IO Ports | 2 x GPIO |
| Logic Level | Low: 0~0.9V, High: 2.5~3.3V |
| Work Mode | Digital input, digital output, pulse counter (only support on GPIO2) |
| Serial Port | 1 × RS232 or RS485 (Switchable) |
| Baud Rate | 300~230400 bps |
| Protocol | Transparent (RS232), Modbus RTU (RS485), SDI-12 |
| Analog Inputs | 2 × Analog input |
| Resolution | 12 bit |
| Input Range | 4~20mA or 0~10V (Switchable) |
| Power Output | 2 × 3.3 V, 2 × 5/9/12 V (Switchable) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in) |
| Power Connector | M12 A-Coded Male |
| Power Input | Rechargeable 4900 mAh battery with solar panel |
| Power Supply | Solar powered + 2*2550mAh battery backup + 5-24 VDC |
| Mounting | Wall or Pole Mounting |
| Brand | Milesight |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
