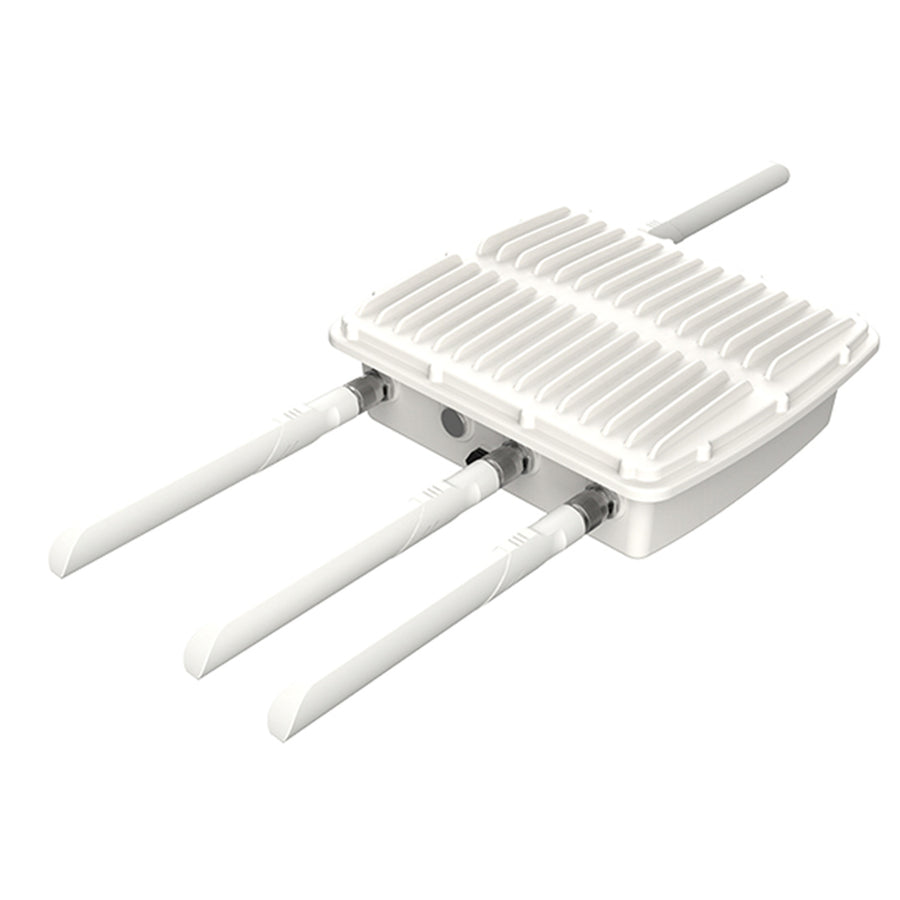

Milesight UG87-W-G-P-868 - Ursalink Outdoor EU868 LoRaWAN Base Station with WiFi, GPS and PoE Support
Milesight UG87-W-G-P-868 - Ursalink Outdoor EU868 LoRaWAN Base Station with WiFi, GPS and PoE Support
Features
Ursalink Outdoor LoRaWAN Base Station for EU868 with WiFi, GPS and PoE (8 Channel)
The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications. Options like cellular network or Wi-Fi provide drop-in connectivity for operators and make a giant leap in maximizing uptime. Adopting high-performance industrial platform of 64-bit CPU and wireless module, the UG87 enables you to scale up M2M application combining data within limited time and budget. The UG87 is particularly ideal for smart city, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on.
The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network. Check out how to connect UG87 to The Things Network
- Compliance to LoRaWAN Class A and Class C
- IEEE 802.11b/g/n/ac Wi-Fi built in
- Built in DI/DO Serial Port and GPS
- 8 or 16 Simultaneous channels optional
- Backhaul Connectivity (Eth/3G/4G/WIFI) Optional
- IP67 Waterproof Casing
- Long Range over 10 km Radius
- Free Embedded Network Server
- Embedded Network Server and MQTT transmission
- Ursalink Cloud compliant
- Support GPS for high-precision time synchronization
- Supports a maximum of 2000 end-devices
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

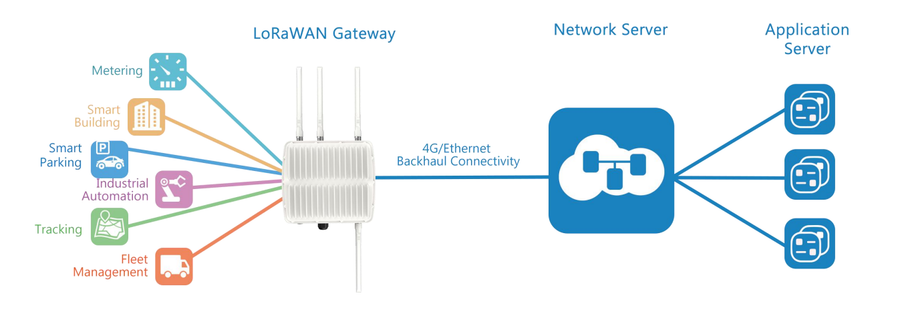

Application Example
Specifications
Technical Specifications
| CPU | 800 MHz, 64-bit ARM Cortex-A53 |
|---|---|
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Storage | 1 × M.2 slot supports SATA M.2 SSD |
| LoRaWAN Connector | 1 × 50 O N-Type (Center PIN: Female) for 8-channel model, 2 × 50 O N-Type (Center PIN: Female) for 16-channel model |
| Channel | 8 |
| Frequency Band | EU868 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Interface | 1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | Connectors 1 × 50 O N-Type (Center PIN: Female) |
| Standards | IEEE 802.11 b/g/n/ac |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 15 dBm +/-1.5 dBm (54 Mbps), 802.11n @ 2.4 GHz: 14 dBm +/-1.5 dBm (MCS7), 802.11n @ 5 GHz: 11 dBm +/-2 dBm (MCS7), 802.11ac @ 5 GHz: 10 dBm +/-2 dBm (MCS9) |
| GPS Connectors | 1 × 50 O N-Type (Center PIN: Female) |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub |
| Reliability | WAN Failover, Dual SIM Backup |
| Power Supply | 1 × 802.3 af/at PoE input |
| Power Consumption Typical | 4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels) |
| Ingress Protection | IP67 |
| Dimensions | 256 x 226 x 90.5 mm |
| Mounting | Wall or Pole Mounting |
| Reset Button | 1 × RST |
| LED Indicators | 1 × PWR, 1 × SYS, 1 × LoRa, 1 × Cellular |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Operating Temperature | -40 degC to +70 degC, Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40 degC to +85 degC |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25 degC |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Milesight |
|---|---|
| Product Type | B2B - IoT & Industrial |
| Weight | 0.5 kg |
