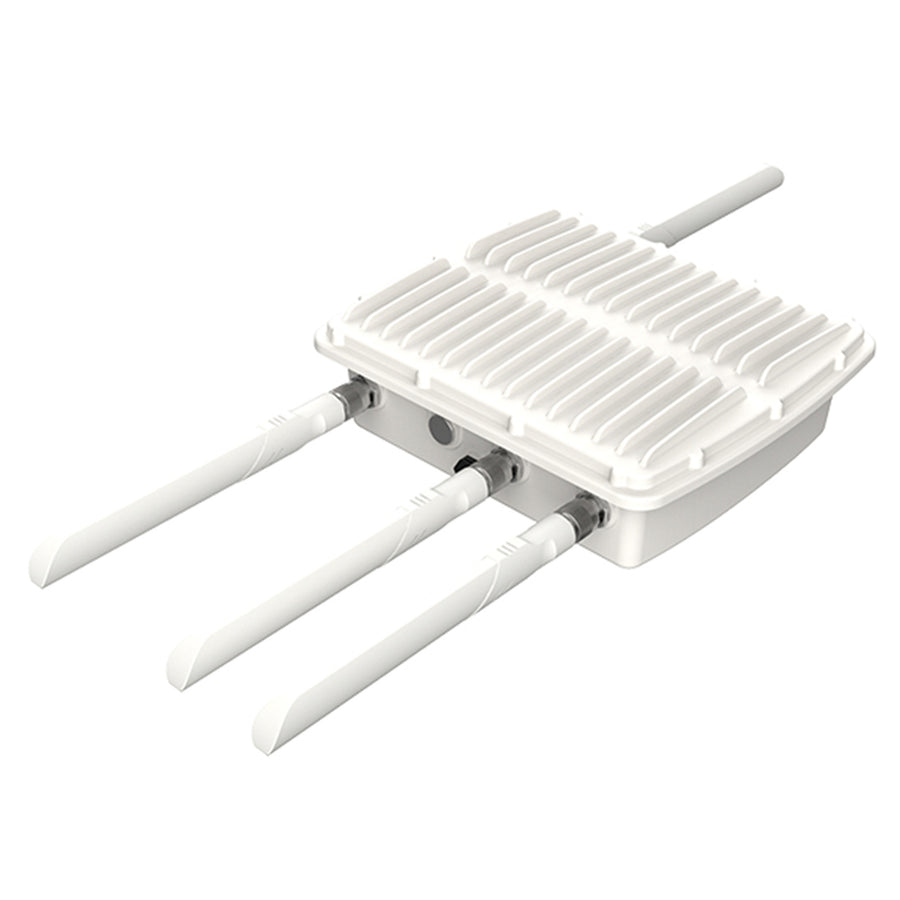

Milesight UG87-W-G-P-CH16-868 - Ursalink Outdoor EU868 LoRaWAN Base Station with GPS, WiFi and PoE (16 Channel)
Milesight UG87-W-G-P-CH16-868 - Ursalink Outdoor EU868 LoRaWAN Base Station with GPS, WiFi and PoE (16 Channel)
Features
Ursalink Outdoor EU868 LoRaWAN Base Station with GPS, Wi-Fi and PoE support
The Ursalink UG87 is an industrial outdoor LoRaWAN gateway with embedded intelligent software features designed for multifarious M2M/IoT applications. Adopting a high-performance industrial platform with a 64-bit CPU and wireless module, the UG87 enables you to scale up M2M applications combining data within a limited time and budget. The UG87 is particularly ideal for smart cities, smart agriculture, building automation, digital factory, environment protection, water conservancy and so on.
The Ursalink UG87-Outdoor industrial LoRaWAN gateway has an IP67 enclosure and is designed for wide area smart city applications and can work perfectly with The Things Network.
- Compliance to LoRaWAN Class A and Class C
- Built in DI/DO Serial Port and GPS
- IEEE 802.11b/g/n/ac Wi-Fi built in
- 16 Simultaneous channels
- Backhaul Connectivity
- IP67 Waterproof Casing
- Long Range over 10 km Radius
- Free Embedded Network Server
- Embedded Network Server and MQTT transmission
- Ursalink Cloud compliant
- Support GPS for high-precision time synchronization
- Easily onboard and monitor 100's of LoRaWAN Gateways with the Scopious onboarding tool

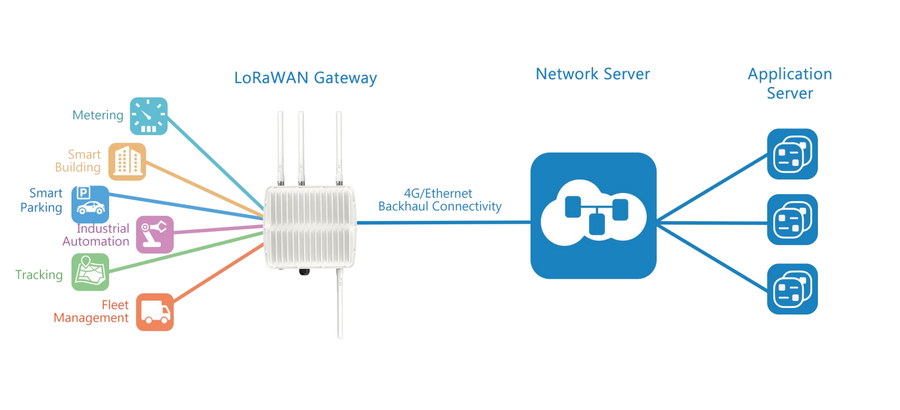

Application
Specifications
Technical Specifications
| Manufacturer's Code | UG87-W-G-P-CH16-868 |
|---|---|
| CPU | 800 MHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR3 RAM |
| Flash | 8 GB eMMC |
| Storage | 1 × M.2 slot supports SATA M.2 SSD |
| LoRaWAN Connector | 1 × 50 O N-Type (Center PIN: Female) for 8-channel model, 2 × 50 O N-Type (Center PIN: Female) for 16-channel model |
| Channel | 16 |
| Frequency | Band EU868 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Interface | 1 × RJ45 (PoE PD), 10/100/1000 Base-T (IEEE 802.3), Data Rate 10/100/1000 Mbps (Auto-Sensing), Interface Auto MDI/MDIX, Mode Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | Connectors 1 × 50 O N-Type (Center PIN: Female) |
| Standards | IEEE 802.11 b/g/n/ac |
| Tx Power | 802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 15 dBm +/-1.5 dBm (54 Mbps), 802.11n@ 2.4 GHz: 14 dBm +/-1.5 dBm (MCS7), 802.11n@ 5 GHz: 11 dBm +/-2 dBm (MCS7), 802.11ac@ 5 GHz: 10 dBm +/-2 dBm (MCS9) |
| GPS Connectors | 1 × 50 O N-Type (Center PIN: Female) |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial up, DeviceHub |
| Reliability | WAN Failover, Dual SIM Backup |
| Power Supply | 1 × 802.3 af/at PoE input |
| Power Consumption Typical | 4.9 W, Max 6.5W (8 channels), Typical 6 W, Max 8.2W (16 channels) |
| Ingress Protection | IP67 |
| Dimensions | 256 x 226 x 90.5 mm |
| Mounting | Wall or Pole Mounting |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Operating Temperature | -40 degC to +70 degC, Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40 degC to +85 degC |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25 degC |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Milesight |
|---|---|
| Product Type | B2B - IoT & Industrial |
| Weight | 0.5 kg |
