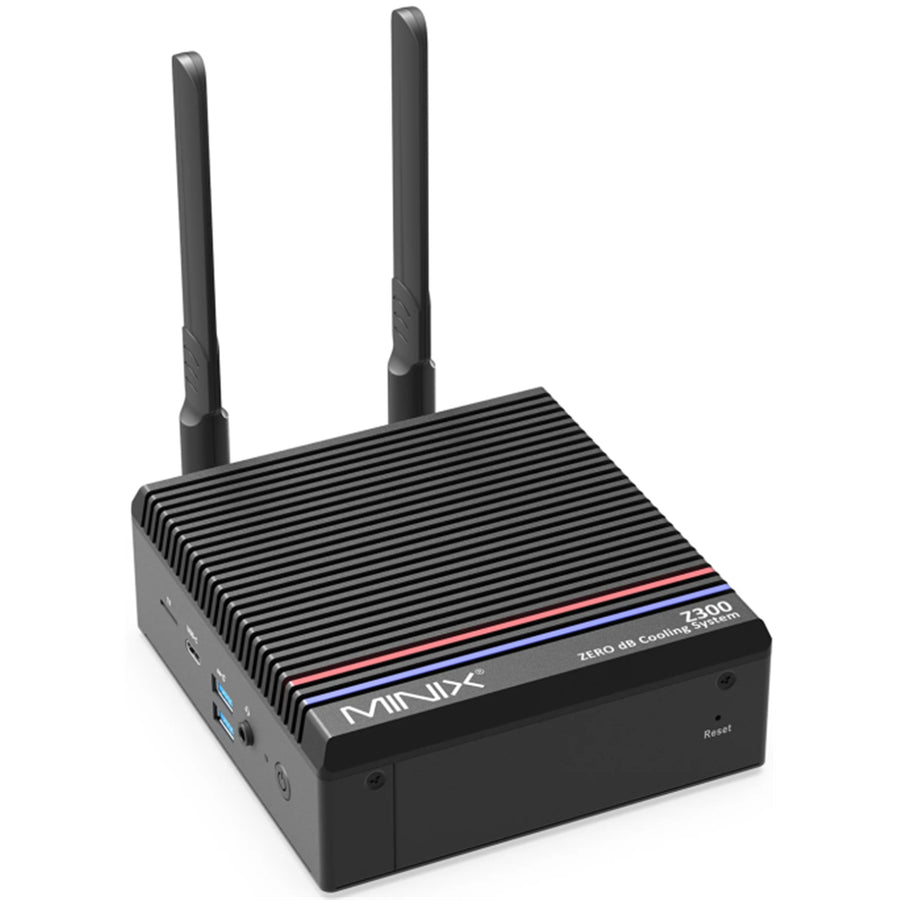

MINIX Intel N300 Fanless Mini PC 16 GB/512 GB Fanless 0dB design
Features
- Intel® CoreTM i3-N300 Processor, up to 3.8GHz
- ZERO db Cooling System
- Dual Display Ready: 2 x HDMI® 2.0 (4K @ 60Hz)
- Memory: 16GB DDR4-3200, upgradeable to 32GB
- Storage: 512GB SSD (PCIe 3.0 x4), upgradeable to 4TB
- Intel® Dual Band Wi-Fi (2.4GHz/5GHz), BT
- RJ-45 2.5 Gigabit Fast Ethernet
- Housing Material: Aluminum, Galvanized Steel (SGCC)
- VESA Mount Included
- Wake On LAN, AC Power Loss, RTC Wake Up
- Windows 11 Pro (64-bit) Pre-installed
Performance Meets Serenity
Balances powerful performance with silent operation, perfect for demanding yet noise-sensitive tasks.
Fanless Silence
Adopts a passive cooling design for absolute quietness, ensuring a distraction-free environment.
Dust-Proof Performance
Maintains a clean interior, eliminating dust buildup and preserving long-term performance.
Intel® Alder Lake-N N300 Octa-Core
Powers the Z300-0dB with an efficient eight-core processor, delivering smooth performance across tasks.
Kimtigo Premium RAM
Equipped with top-quality RAM from Kimtigo, ensuring seamless multitasking and faster response times.
Wi-Fi 6 & Bluetooth 5.2 Connectivity
Stays ahead of the curve with the latest wireless standards, offering faster speeds and broader compatibility.
2.5G LAN Port
Provides ultra-fast wired networking, ideal for bandwidth-intensive applications and large file transfers.
Dual 4K @ 60Hz Display Support
Enables simultaneous dual 4K resolution displays at 60Hz, perfect for professionals seeking immersive visuals and enhanced productivity.
Specifications
Technical Specifications
| BIOS | AMI EFI X64 |
|---|---|
| Processor | Intel® Alder Lake-N Quad-Core N100 (Base Frequency 0.8GHz, Max Turbo Frequency 3.40GHz) |
| Graphics Engine | Intel® UHD Graphics |
| Memory Slot | 1 x 260-pin DDR4 3200MHz SO-DIMM 16GB, upgradeable to 32GB Max |
| Storage | 512GB M.2 PCIe 3.0 x4 NVMe SSD, upgradeable to 4TB Max. |
| Ethernet | 1 x RTL8125BG-CG 2.5 Gigabit Ethernet |
| LED Indicators | LEDs for Power, LAN (Active, Status) |
| WIFI/BT | Intel® Wireless-AX101 / AX201 (Dual Band AX Wi-Fi) |
| LAN Port | 1 x RJ45, 10M/100M/1000M/2.5 Gigabit Fast Ethernet |
| USB Ports | 1 x USB 3.2 Gen 2 Type-C (Data Only, up to 10Gbps), 2 x USB 3.2 Gen2 Type-A (10Gbps), 2 x USB 2.0 |
| Audio Jack | 3.5mm Audio Jack (Earphone+Micphone, 2-in-1) |
| Display Output | 2 x HDMI® 2.0, 3840X2160@60Hz |
| Antenna | 2 x External Wi-Fi Antennas |
| Power Button | 1 x Power Button |
| Reset Button | 1 x Clear CMOS Button (Reset BIOS) |
| Power Jack | 1 x 12V-19V DC-IN Jack |
| Operating Temperature | 0 ~ 50°C @ 5 ~ 85% RH |
| Storage Temperature | -20 ~ 70°C |
| Relative Humidity | 10 ~ 95% RH @ 40 °C/104 °F, non-condensing |
| Certification | CE, FCC, RCM, RoHS |

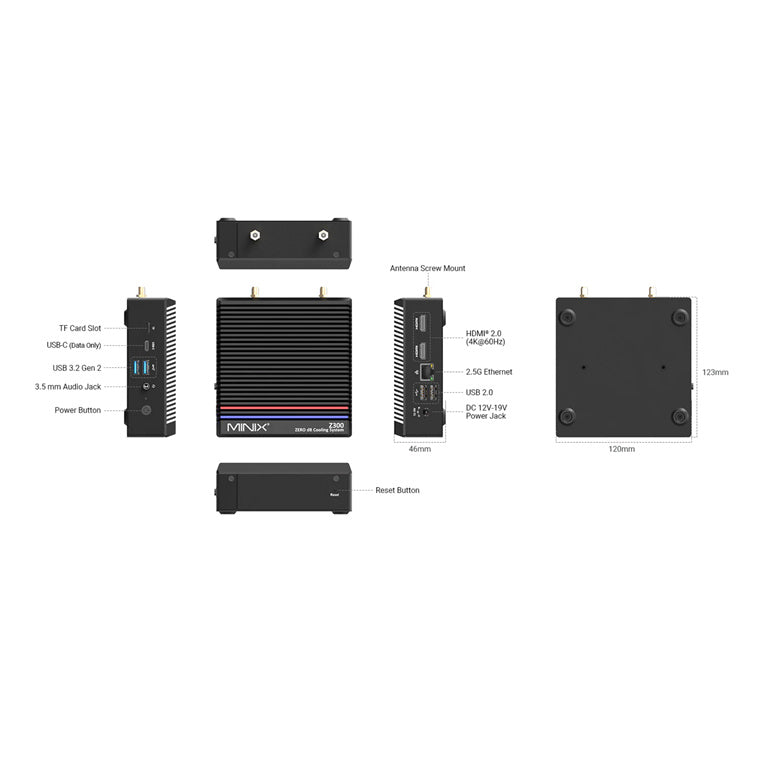

| Dimensions (WxDxH) | 123x120x46mm (4.84"x4.72"x1.81") |
| Form Factor | Mini PC |
| Encloser | Metal Housing |
| Weight (Net) | 0.89 kg |
| Power Requirement | 12V/3A DC-IN |
| Power Consumption | 10-12W (Typical), 25-27W (Turbo) |
| Brand | MINIX |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > Industrial PCs |
| Weight | 0.5 kg |
