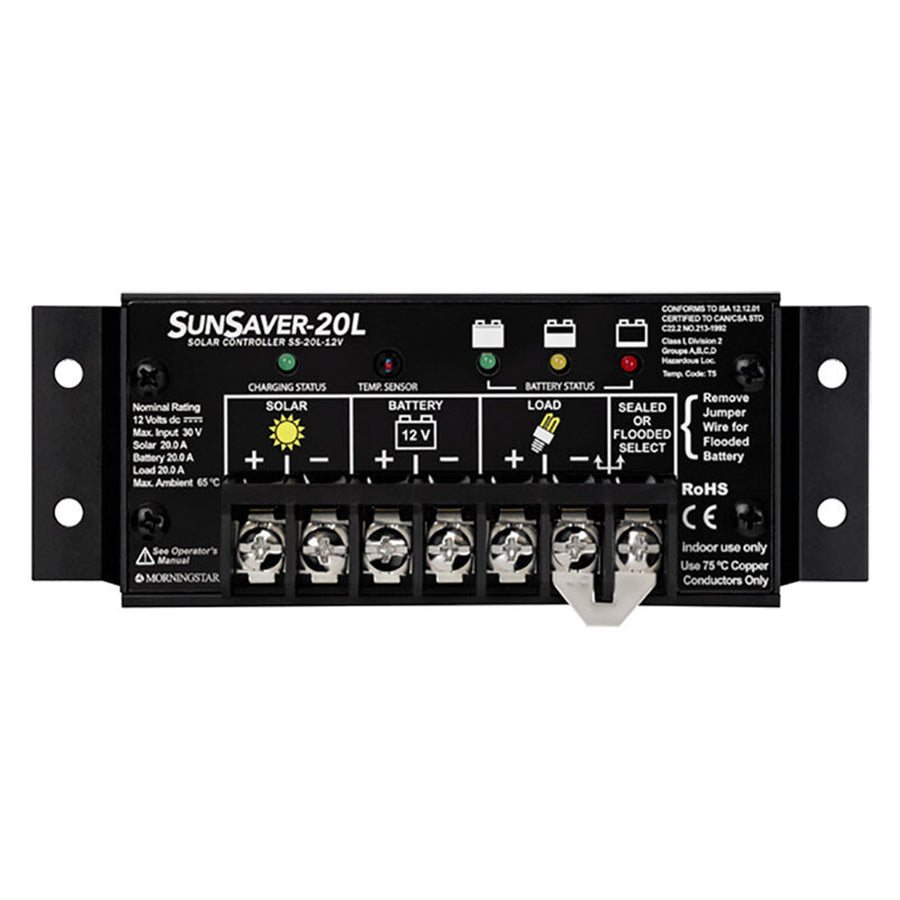

Morningstar SunSaver SS-20L-12V 4 Stage 12v 20a PMW Solar Controller LVD

SunSaver SS-20L-12V 4 Stage 12v 20a PMW Solar Controller LVD

Extremely High Reliability

- Failure rate of less than 1 per 1,000 shipped (<0.1%)
- 100% solid state. Power MOSFET design
- Manufactured in an ISO 9001 factory
- 100% pre-shipment functional testing

Longer Battery Life

- Series design (not shunt) for cool operation
- Longer battery life through PWM 4-stage charging and temperature compensation
- Sealed or flooded battery select
- Low voltage load disconnect on several versions

Designed for Harsh Environments and Hazardous Locations Around the Globe

- Temperature rating of -40°C to +60°C
- Ideal for Oil/Gas applications. Approved for use in hazardous locations: UL/CSA Class 1, Division 2, Groups A-D; ATEX/IECEx Zone 2, Gas Group IIC
- Tropicalization-hardened for field use with anodized aluminum enclosure, epoxy encapsulation and marine-rated terminals

Easy to Install and Use

- Factory pre-sets result in no required install settings
- Electronic protections prevent damage from wiring mistakes
- Fully automatic operation and fault recovery
- Additional features include full electronic protections, 3-state battery LED indicators, terminal cover, dead battery recovery, high voltage load protection for sensitive loads
- Wire terminal cover included with every SunSaver
