MS-C5362-FPE - Milesight AI Motorized Zoom 5MP NDAA Pro Bullet Network Camera Junction Box
Features

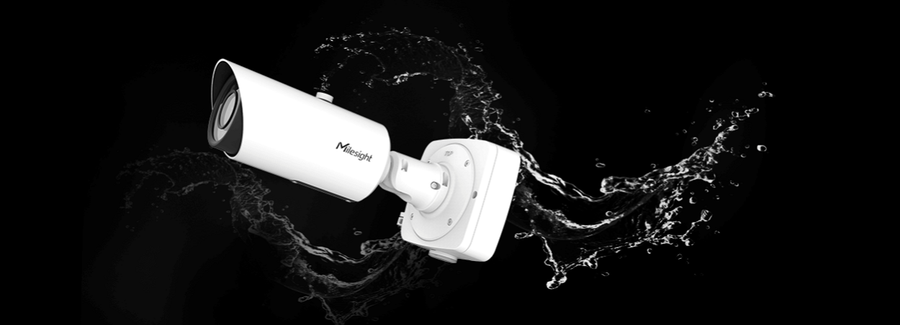

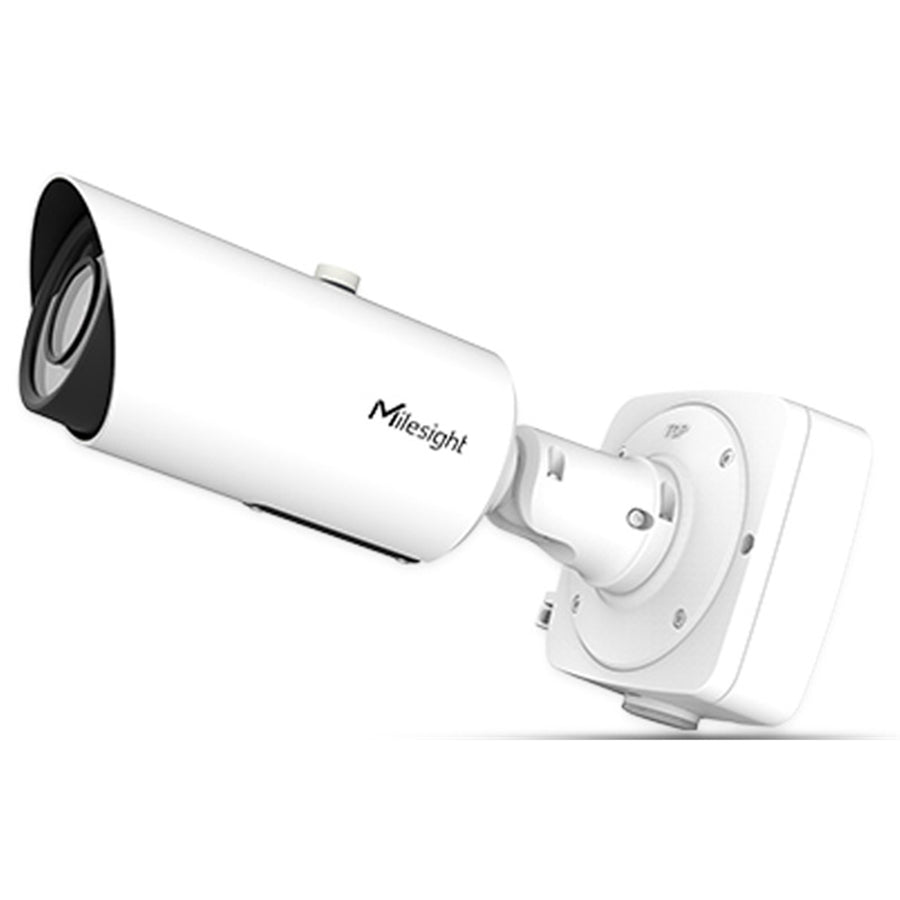

Milesight MS-C5362-FPE AI Motorized Zoom 5MP NDAA Pro Bullet Network Camera
- 5MP
- AI
- 120dB Super WDR
- 0.005Lux Ultra Low-light
- IP67
- Smart IR II
- 60m IR Distance
- PoE
- AI Empowered VCA
- vGRID SaferCity Platform Compliant

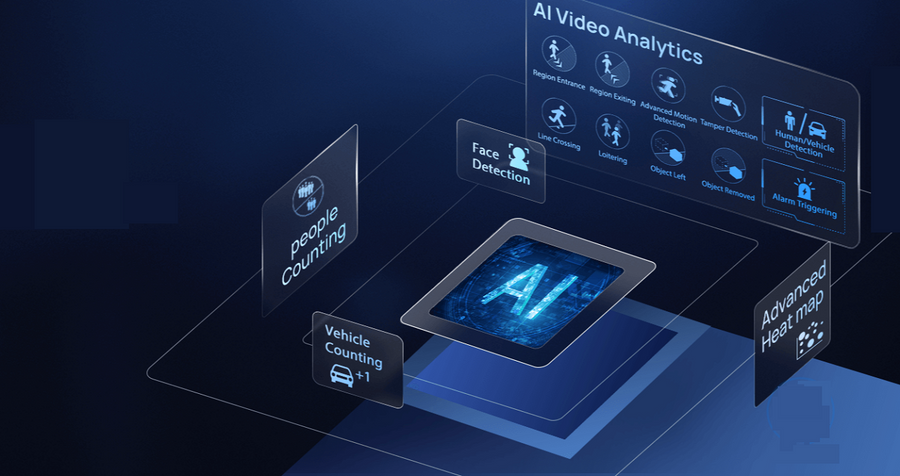

AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.
120dB Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.
Smart IR II Technology
The upgraded IR LEDs technology offers videos with a viewing range of up to 60m (100m), ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.
0.005 Lux Ultra Low Light
Milesight AI Camera Series, with top-notch Sony STARVIS Starlight Sensor, can provide detailed color images in low and near-infrared light conditions down to 0.005Lux (Color) and 0Lux (B/W), without additional lighting.
IP67 Weather-proof Housing
Equipped with industry-leading IP67-rated weather-proofing, the camera is well protected against adverse impacts to ensure stable operation in all weather conditions.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
Technical Specifications
| Manfucaturer Code | MS-C5362-FPE |
|---|---|
| Name | AI Motorized Pro Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux @ F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 60m(3.0~10.5mm/2.7~13.5mm) |
| Lens | Motorized Motorized 2.7~13.5mm |
| Field of View | H89°~H30°/D111°~D37° /V66°~V22° |
| Focus Control | Auto/Manual |
| Video Max. Image Resolution | 2592x1944 |
| Frame Rate | 60Hz: 30fps @ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps @ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps @ (704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps @ (704x576, 640x480, 640x360, 352x288, 320x240 |
| Tertiary Stream | 60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Supported |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS IGMP, ICMP, SSL |
| Storage Support | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General Working Temperature | -40?~60? |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 5W MAX, 7W MAX(With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing (Optional) |
| Dimensions | 134mmx126mmx285mm |
| Weight | 1080g |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Bullet Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
