MS-C5364-PD - Milesight NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera
Features

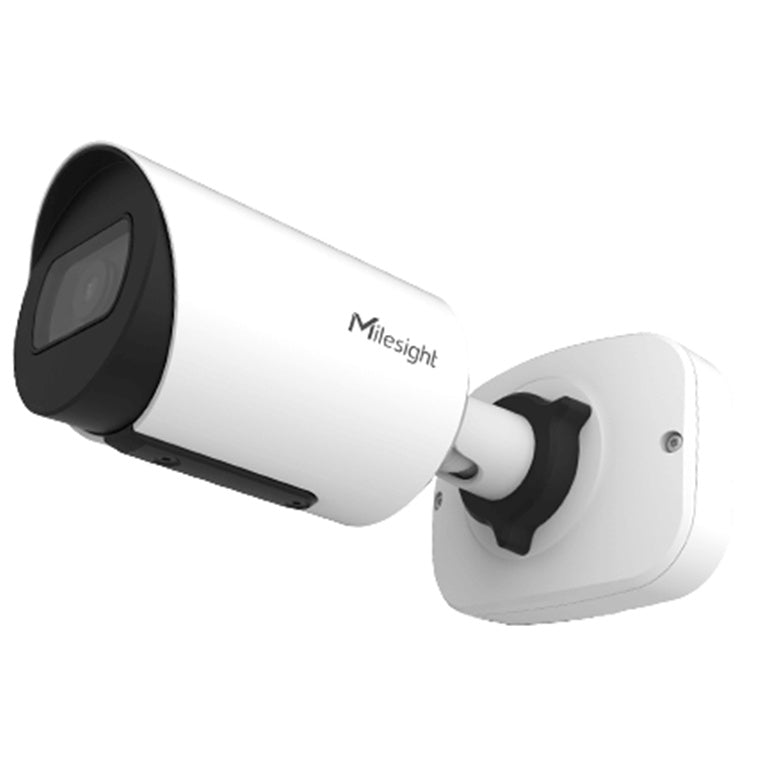

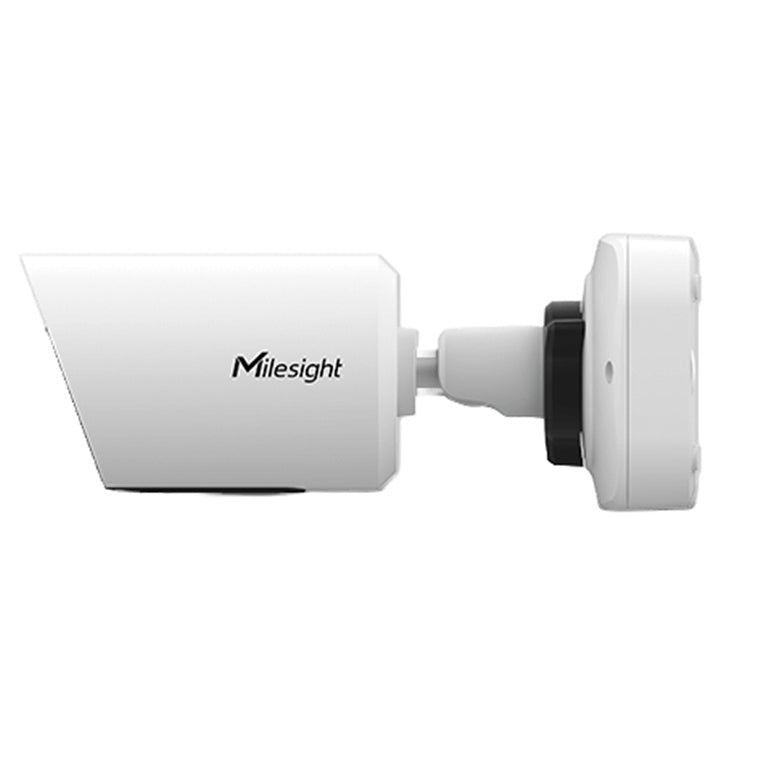

Milesight MS-C5364-PD NDAA 5MP AI Vandal-proof Mini Bullet Network IP Camera - White
The Milesight AI Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 30m
- Junction Box Version
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
Milesight AI Camera Series feature Super Wide Dynamic Range
Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

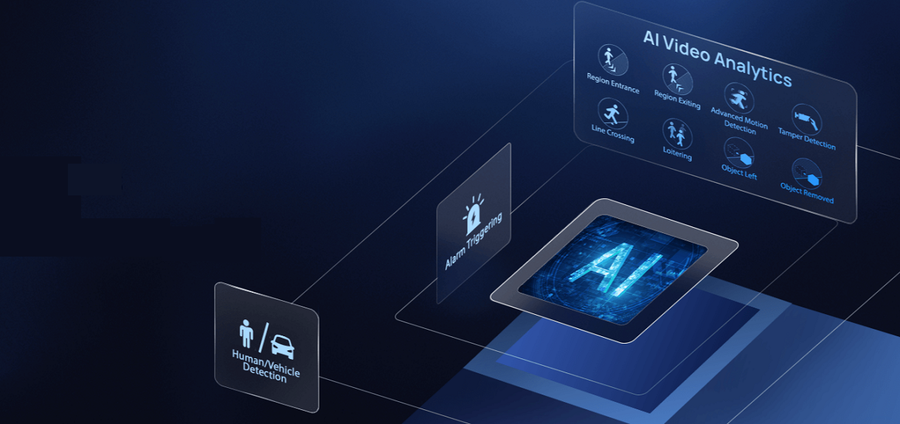

AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

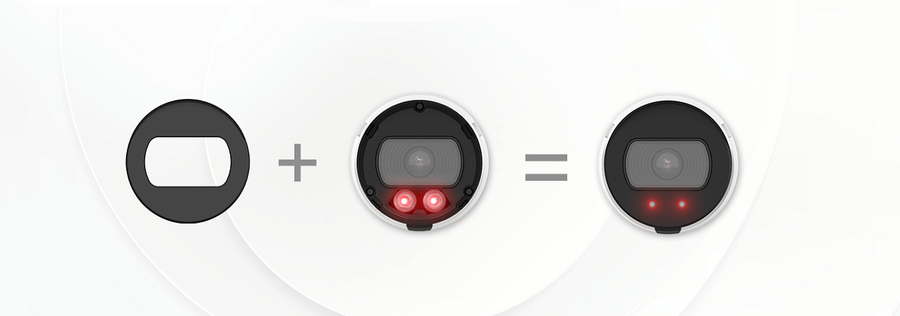

Revolutionary IR Performance
To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

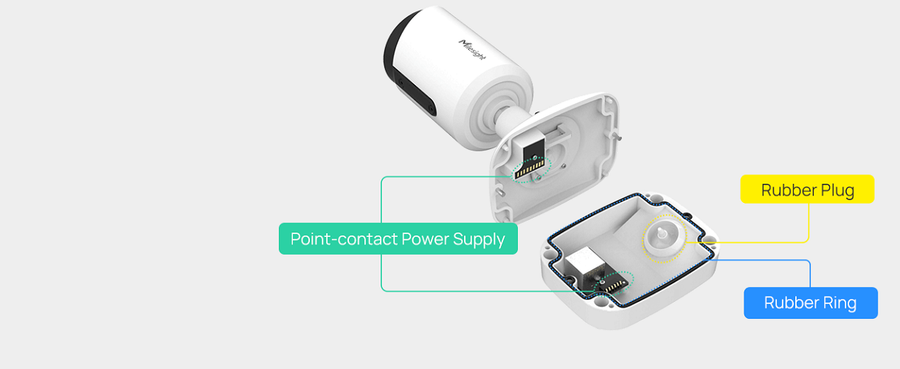

Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

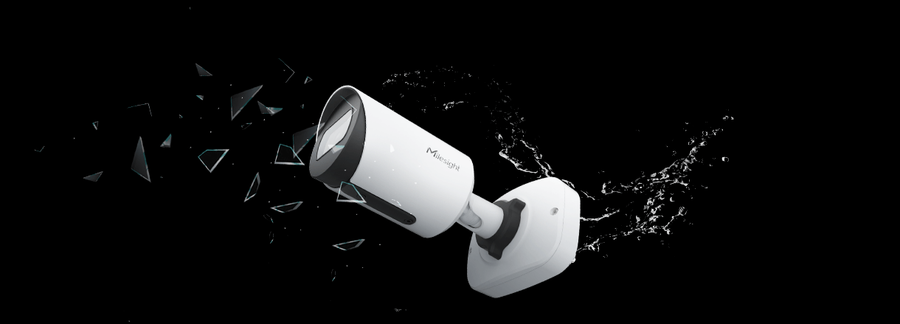

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications
Technical Specifications
| Model | 5MP: MS-C5364-PD |
|---|---|
| Image Sensor | 1/2.8? Progressive Scan CMOS |
| Min. Illumination | 5MP: Color: 0.008Lux @ F1.6, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm |
| Mount | M12 |
| Field of View | 5MP: H105°/D131°/V78°(2.8mm) |
| IR Distance | Up to 30m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| Max.Image Resolution | 5MP: 2592x1944 |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Storage Support | microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Temperature | -40°C~60°C |
| Working Humidity | 0~90%(Non-condensing) |
| Power Method | PoE (802.3af) |
| Power Consumption | 5MP: 3.5W MAX, 5.4W MAX (With IR on |
| Housing | Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing |
| Dimensions | 97mm x 74mm x 180mm |
| Accessories | A01 Pole Mount, A03 External Corner Bracket |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Bullet Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
