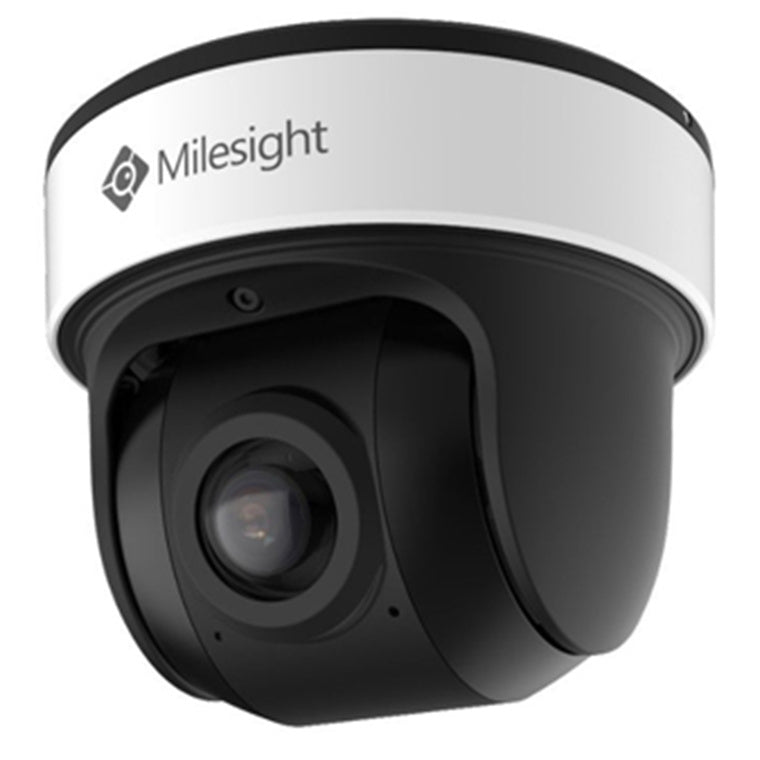

MS-C5376-PE - Milesight 5MP 180° Panoramic H.265 Mini Dome Network Camera
Features
Milesight MS-C5376-PE 5MP 180 Panoramic H.265 Mini Dome Network Camera
As a dome-shaped camera, Milesight 180° Panoramic H.265+ Mini Dome Network Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 180° Panoramic View
- 120dB Super WDR
- 0.005Lux Starlight
- Panoramic IR Technology
- Heat Map
- IP67 & IK10
- Built-in Microphone
- Integrated Junction Box
- Support microSD/SDHC/SDXC Card Local Storage, up to 256G
- vGRID SaferCity Platform Compliant
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

180° Panoramic View
Milesight AI 180° Panoramic Mini Dome Network Camera catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the dome model.

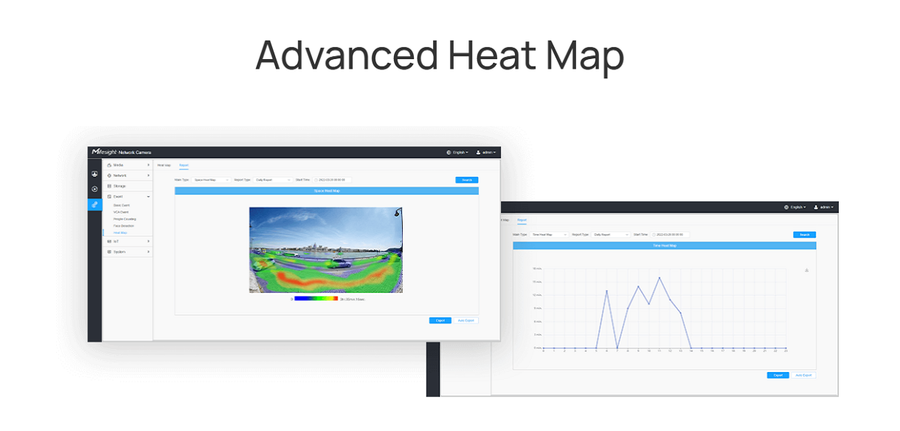

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.008 Lux Ultra Low-light and 120dB Super WDR features make it well-suited for various special circumstances.

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications
Technical Specifications
| Product Code | MS-C5376-PE |
|---|---|
| Product Name | 5MP AI 180° Panoramic Mini Dome Network Camera |
| Min. Illumination | Color: 0.008Lux @ F2.0, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm @ F2.0 |
| Mount | M12 |
| Field of View | H180°/V95° |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | 180° IR Illumination Up to 15m |
| S/N | >55dB |
| Max. Image Resolution | 2592x1944(Original) |
| Primary Stream | 60HZ:30fps @ (2560x1440, 1920x1080, 1280x720) 50HZ:25fps@(2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 areas |
| Region Of Interest | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interfaces | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| StorageSupport | microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP | Supported - Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Condition | Temperature: -40?~60? / Humidity: 0~90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions/Weight | 127mm x 127 x 107mm/850g |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Dome Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
