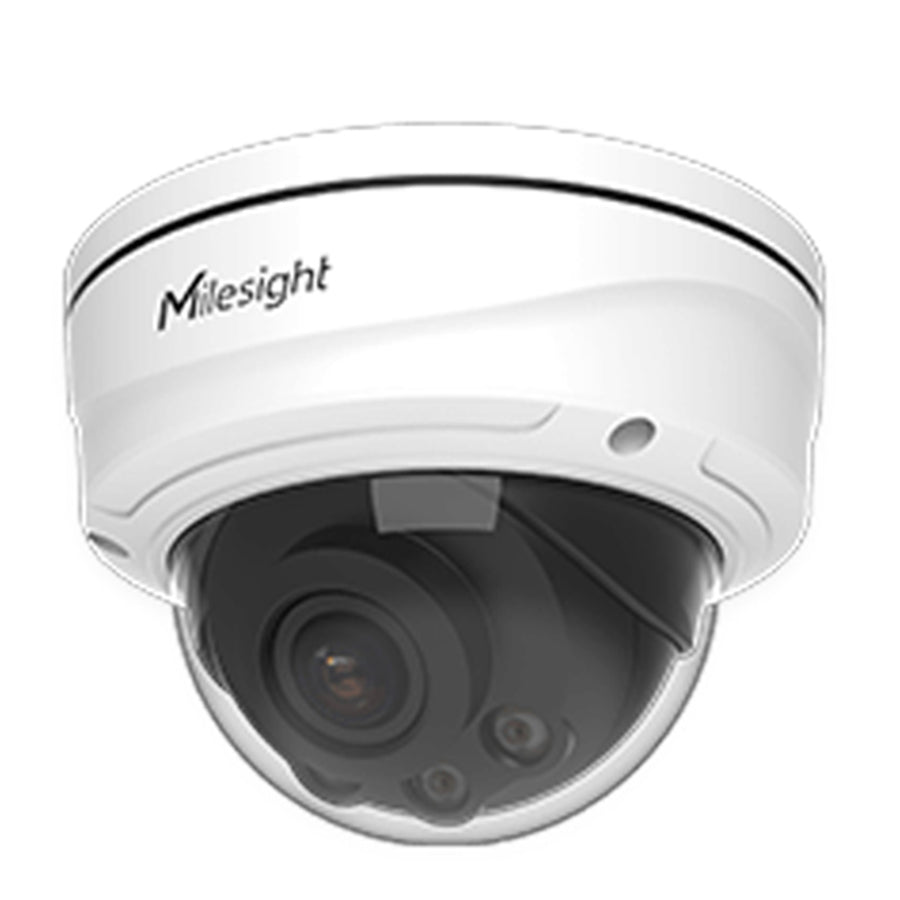

MS-C6772-FPE - Milesight 6MP NDAA AI Motorized Zoom Pro Dome Network IP Camera
Features

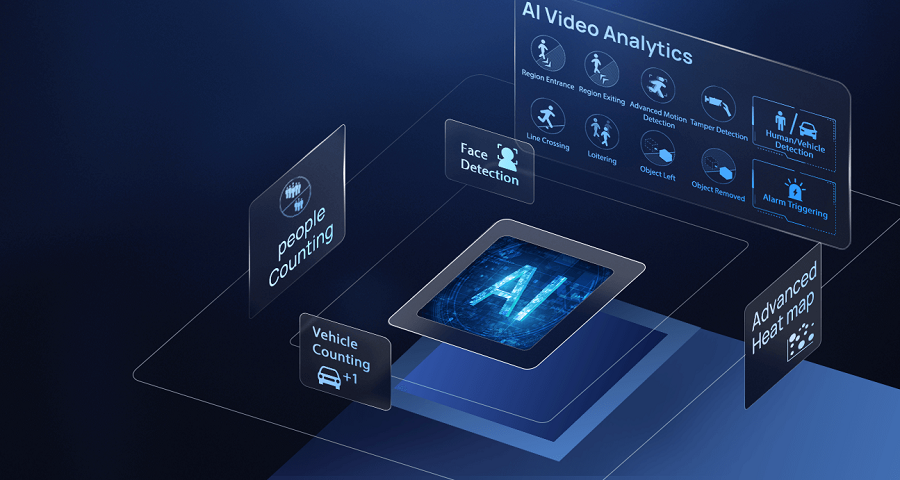

AI Empowers Security
Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.
120dB Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.

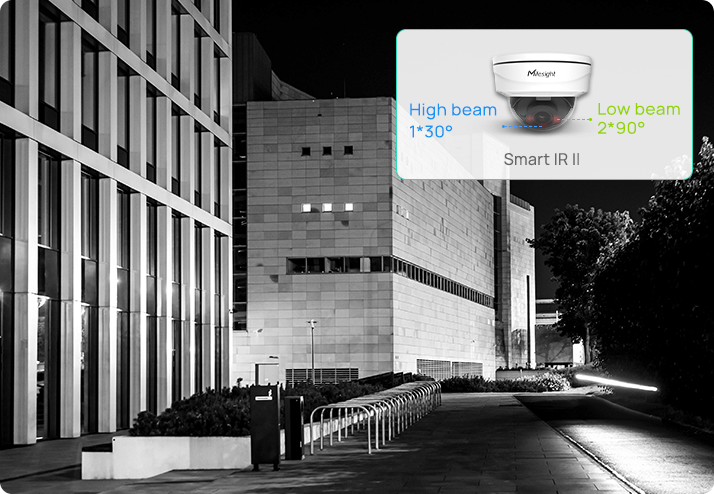

Smart IR II Technology
The upgraded IR LEDs technology offers videos with a viewing range of up to 50m, ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.

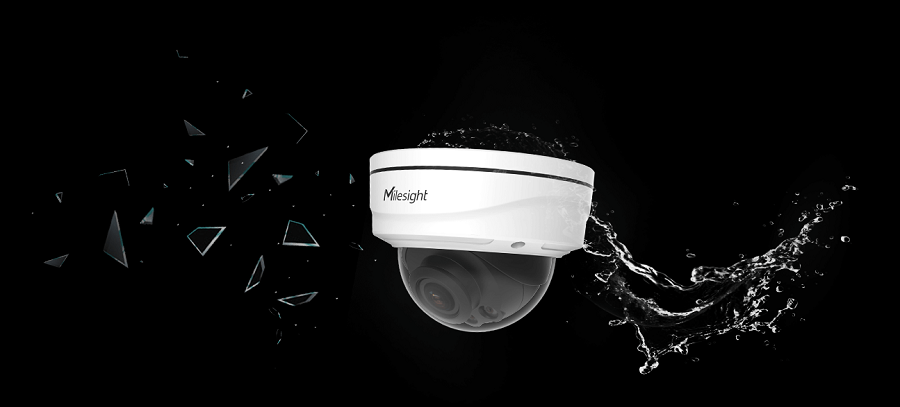

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

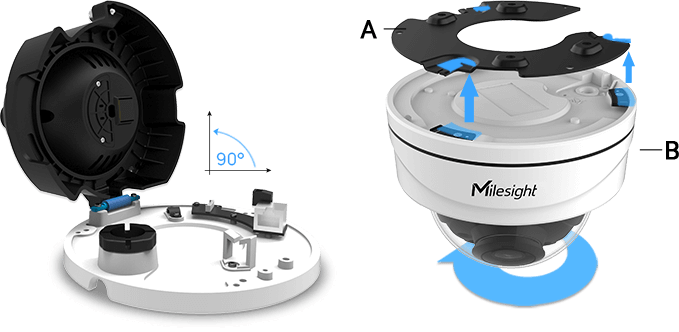

Efficient & Simple Installation
Milesight's innovative clamshell design for the dome base simplifies installation by enlarging the space for easy cable connection, significantly reducing effort for installers.

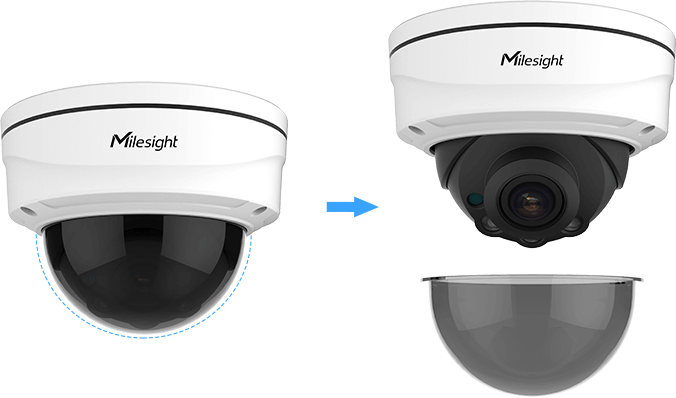

Smoked Dome Cover
Hide the direction of the camera for not letting people see where the camera is pointed.

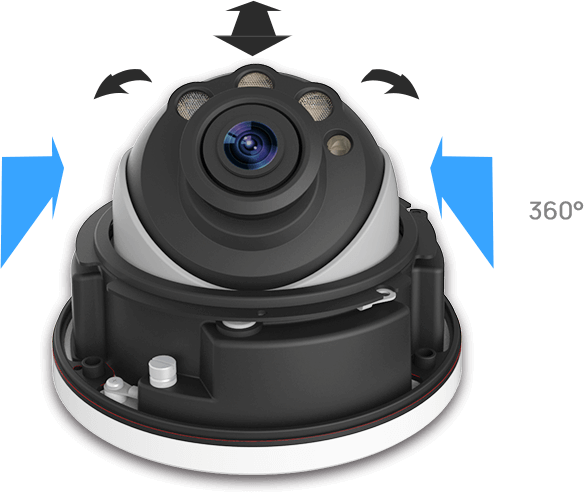

3-Axis Mechanical Design
Fast and easy adjustment of the camera's viewing angel allows you to position the camera precisely.

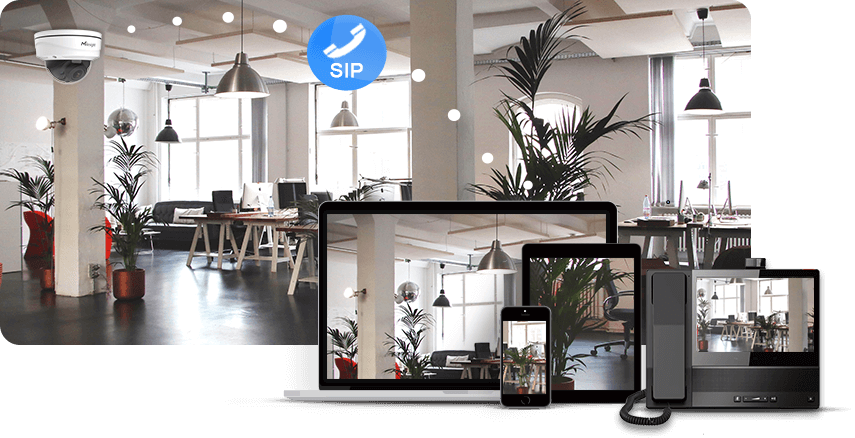

SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
Technical Specifications
| Name | 6MP AI Motorized Pro Dome Network Camera |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@ F1.6B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 78.5~219m O: 31~86m R: 15.5~43m l: 8~21.5m |
| IR Distance | Up to 50m |
| S/N | >55dB |
| Lens | Motorized 2.7-13.5mm@ F1.6 |
| Field of View | H112°~H38°/D129°~D44° /V61°~V22° |
| Mount | F14 |
| Focus Control | Auto/Manual |
| Max. Image Resolution | 3200x1800 |
| Primary Stream | 60Hz: 30fps@ (3200x1800, 2560x1440, 1920x1080, 1280x720)50Hz: 25fps@ (3200x1800, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@ (1280x720, 640x480, 640x360)50Hz:25fps@ (1280x720, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps(1280x720, 640x480, 640x360)50Hz: 25fps(1280x720, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone and 1 Audio Output interface |
| Alarm I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle,Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| Working Temperature | -40°C~60°C |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.2W (DC 12V), 4W(PoE)Max.: 5.6W (DC 12V), 7W(PoE) |
| Weight | 1100g |
| Dimensions | F143mmX108.4mm |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Dome Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
