Milesight

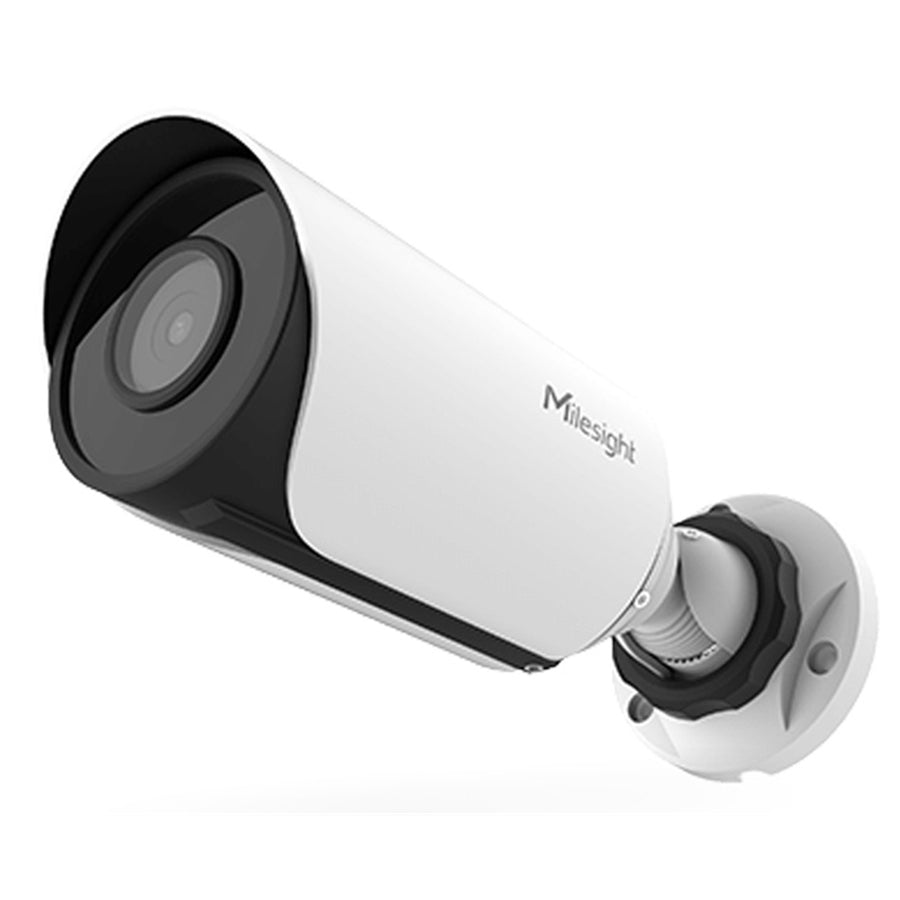

MS-C8163-PE - Milesight 4K NDAA AI Weather-proof Mini Bullet Network Camera

SKU: MS-C8163-PE ● In Stock
$515.64
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

The Milesight AI Weather-proof Mini Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit and around your home or business.

Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.

Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.

- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 50m
- Suitable for outdoor applications (IP67 & IK10)
- ONVIF Profile Support for profiles G & Q & S & T, API
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- Face Detection & Face Attribute Recognition: Detect and capture faces, get real-time snapshots
- People Counting & Reporting: Count the number of people entering or exiting, up to 4 detection areas for regional people counting
- Track and record the path and actions of your customers in your stores in real-time with Milesight AI Advanced Heat Map
- vGRID SaferCity Platform Compliant

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

Super Wide Dynamic Range

Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications

Technical Specifications

Model MS-C8163-PE
Name AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8? Progressive Scan CMOS
Min. Illumination Color: 0.012Lux@ F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm
Mount M12
Field of View H110°/D126°/V60°
IR Distance Up to 50m
Day/Night Mode Day/Night/Auto/Customize/Schedule
Max.Image Resolution 3840x2160
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O N/A
Alarm I/O N/A
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Yes
Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically
People Counting & Reporting Count the number of people entering or exiting, up to 4 detection areas for regional people counting
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~95%(Non-condensing)
Power Method PoE (802.3af)
Power Consumption 7W MAX, 10W MAX (With IR on)
Housing Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions 76mm x 214.5mm
