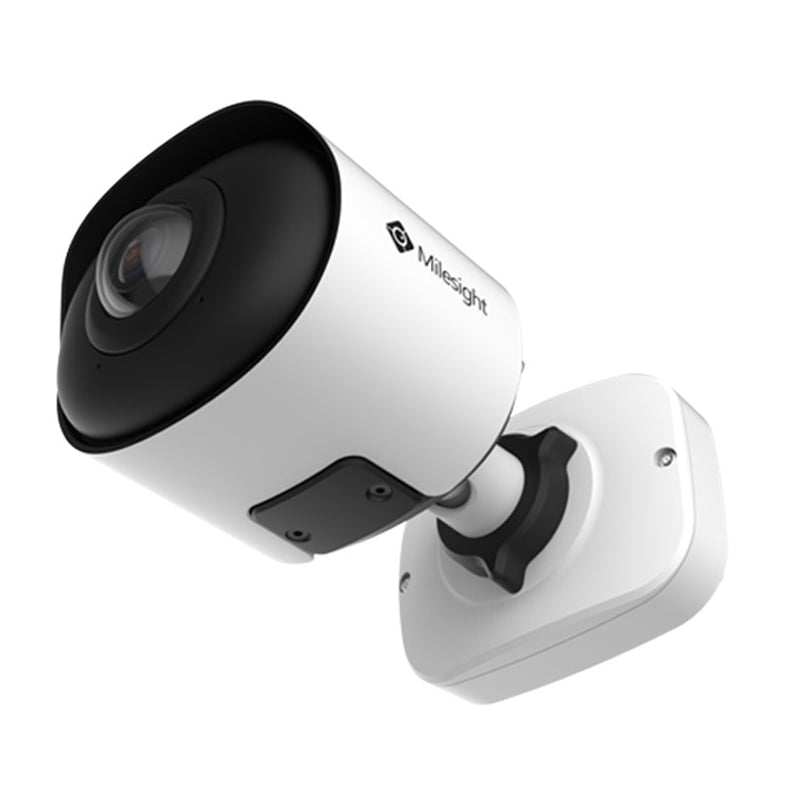

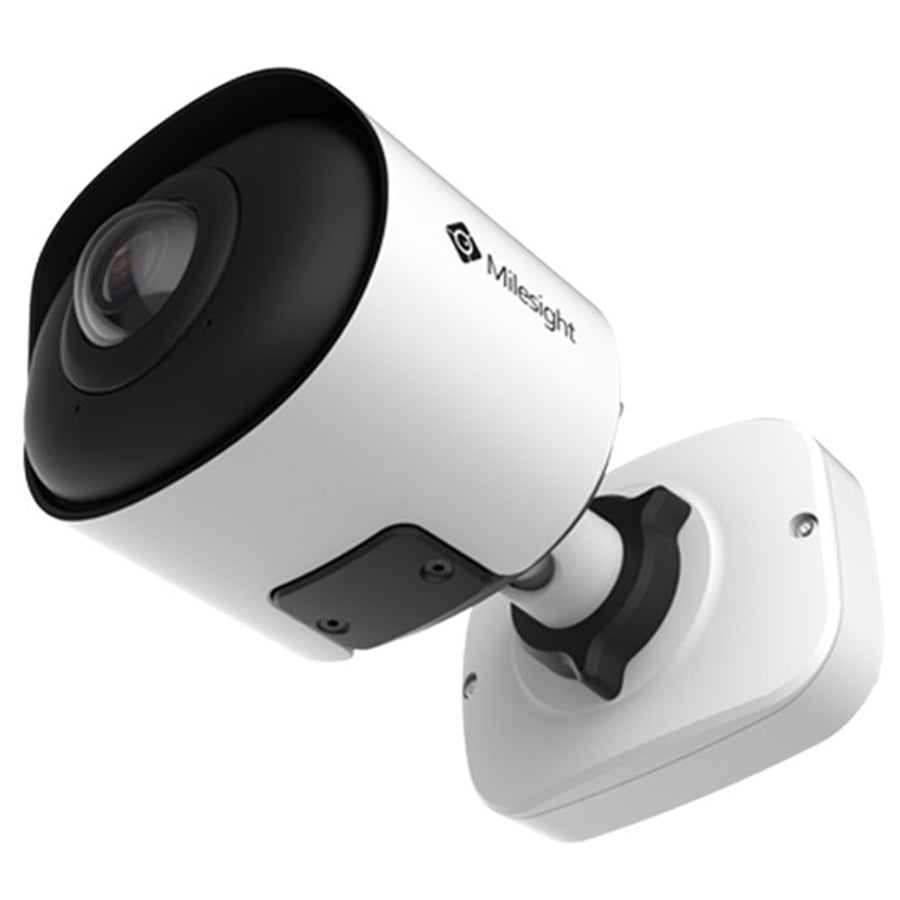

MS-C8165-PE - Milesight 4K NDAA AI 180° Panoramic Mini Bullet Network IP Camera - Junction Box
Features
Milesight MS-C8165-PE 4K NDAA AI 180 Panoramic Mini Bullet Network IP Camera - Junction Box
Milesight AI IP Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
With the built-in microphone which adopts the advanced codec, the AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 180° Panoramic View
- AI
- 120dB Super WDR
- Privacy Mask
- 0.005Lux Starlight
- Heat Map
- IP67 & IK10
- 15m IR Distance
- Smart IR II
- Support microSD/SDHC/SDXC Card Local Storage, up to 256G
- vGRID SaferCity Platform Compliant
180° Panoramic View
Milesight AI 180° Panoramic Mini Bullet Network Camera catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.
4K Ultra High Definition
It features with 4K ultra high definition which better restores the images to guarantee superb image quality. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

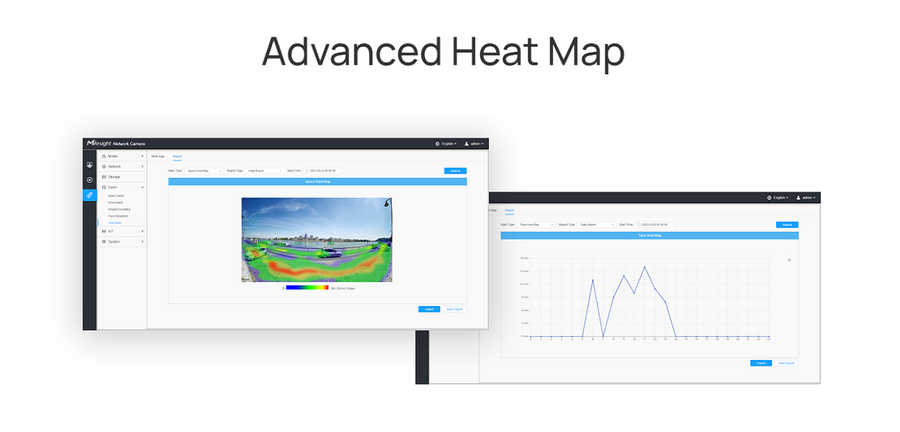

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

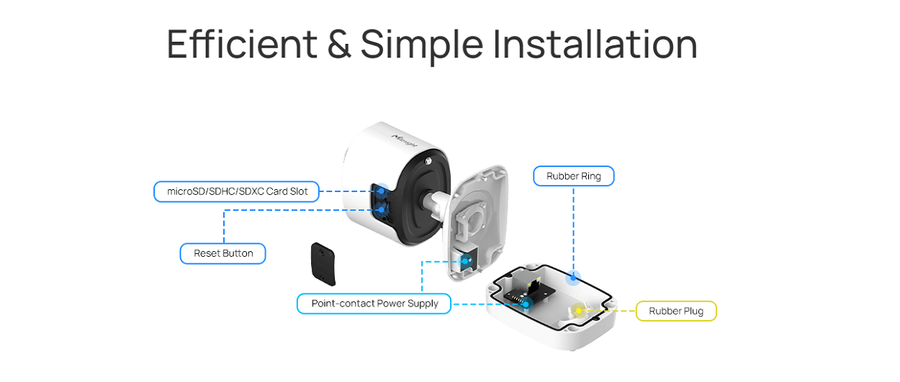

Efficient & Simple Installation
The well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications
Technical Specifications
| Product Code | MS-C8165-PE |
|---|---|
| Product Name | Milesight 4K AI 180° Panoramic Mini Bullet Network Camera |
| Min. Illumination | Color: 0.01Lux @ F1.2, Color: 0.012Lux @ F2.0, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm @ F2.0 |
| Field of View | H180°/V86° |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | 180° IR Illumination Up to 15m |
| S/N | >55dB |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps @ (3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz/50Hz:25fps @ (704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz/50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 areas |
| Region Of Interest | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interfaces | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP | Supported - Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Condition | Temperature: -40?~60? / Humidity: 0~90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions/Weight | 97mm x 74mm x 160mm/630g |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Bullet Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
