Milesight

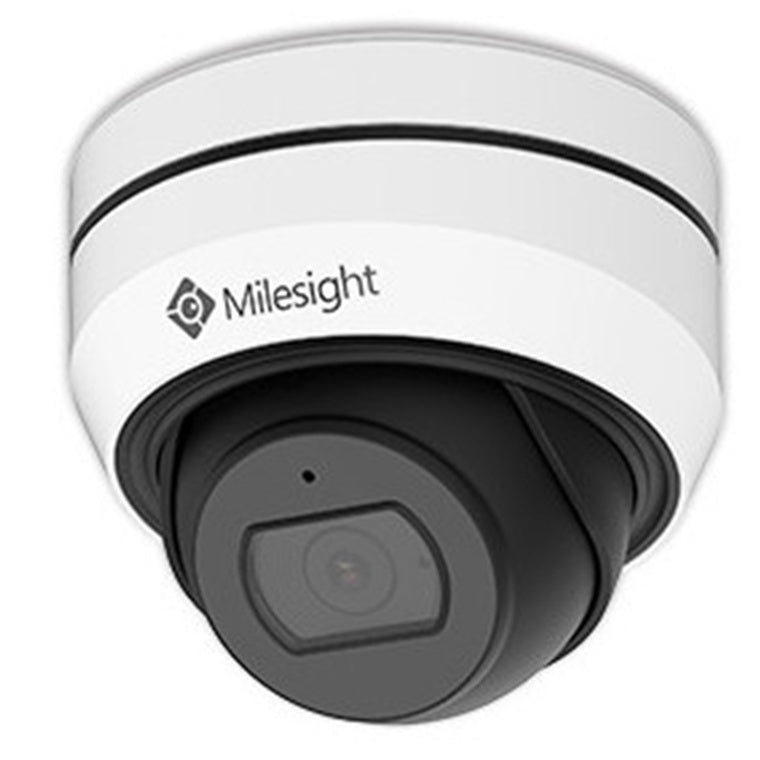

MS-C8175-PD - Milesight 4K NDAA AI Weather-proof Mini Dome Network Camera- Cable out

SKU: MS-C8175-PD ● In Stock
$525.21
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Milesight MS-C8175-PD  4K NDAA AI Weather-proof Mini Dome Network Camera

The Milesight AI Weather-proof Mini Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit and around your home or business.

Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.

Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.

- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 25m
- Suitable for outdoor applications (IP67 & IK10)
- Reduced lens flare reflection with its no dome cover design
- Cable Out Version
- Built-in Microphone
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant

Milesight AI Camera Series feature Super Wide Dynamic Range

Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

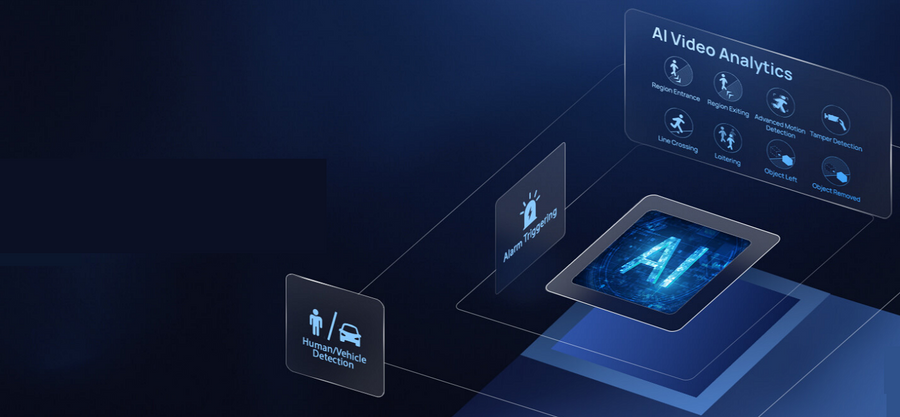

AI Video Analytics

Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

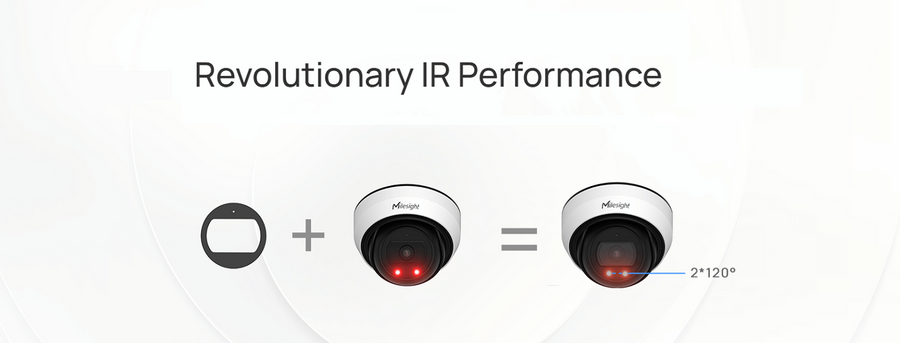

Revolutionary IR Performance

To maximize the IR performance, the camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

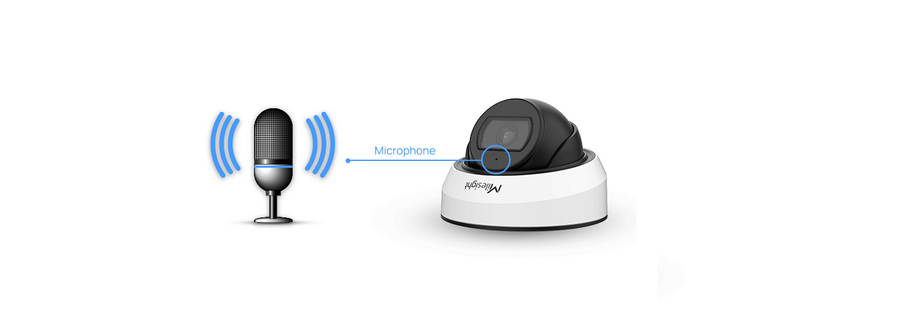

Advanced Built-in Microphone

With the built-in microphone which adopts the advanced codec, the camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance.

SIP/VoIP Support

Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

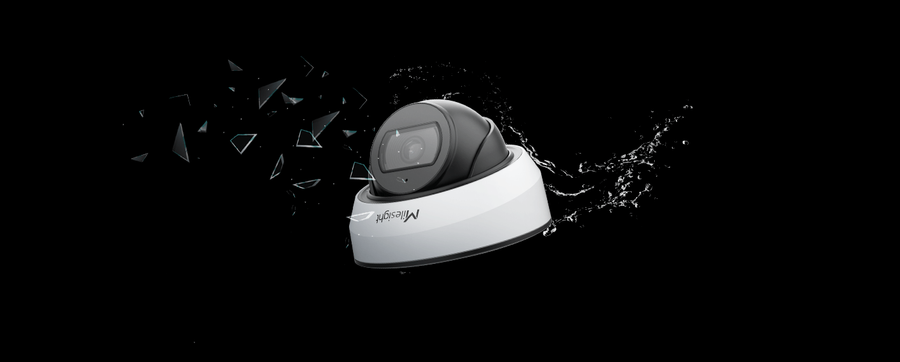

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications

Technical Specifications

Model MS-C8175-PD
Image Sensor 1/2.8? Progressive Scan CMOS
Min. Illumination Color: 0.012Lux @ F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm
Mount M12
Field of View H110°/D126°/V60°(2.8mm)
IR Distance Up to 25m
Day/Night Mode Day/Night/Auto/Customize/Schedule
Max.Image Resolution 4K: 3840x2160
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone
Alarm I/O N/A
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~90%(Non-condensing)
Power Method PoE (802.3af)
Power Consumption 4.6W MAX, 6.6W MAX (With IR on)
Housing Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions 106mm x 76.5mm
Accessories A01 Pole Mount, A03 External Corner Bracket, A71 Wall Mount, A81 Recessed Mount, A83 Junction Box
