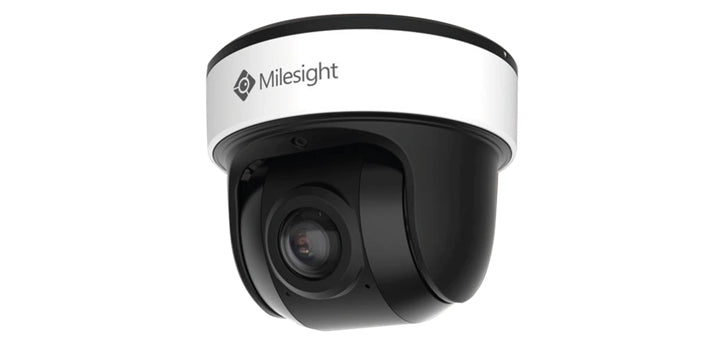

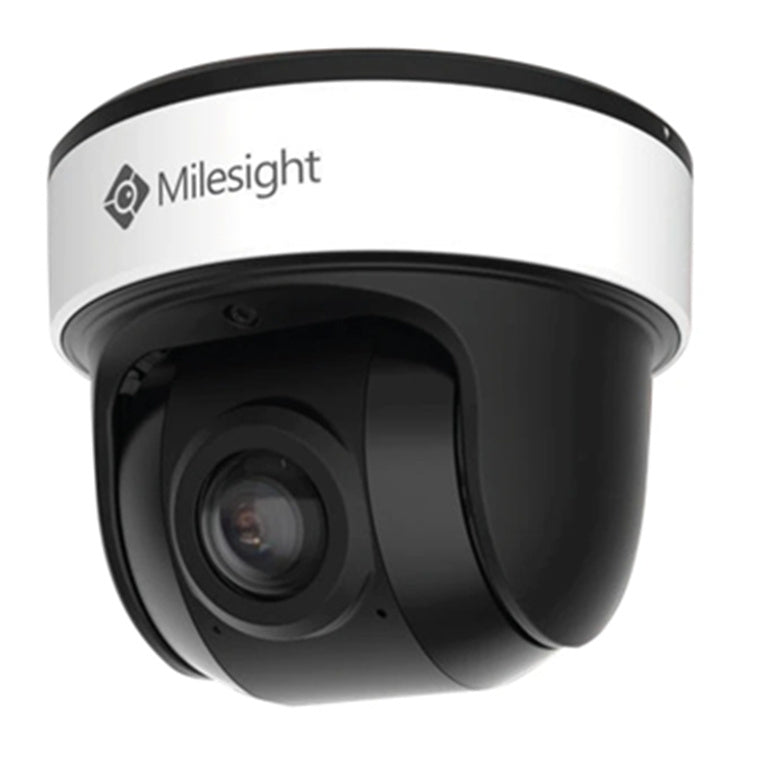

MS-C8176-PE - Milesight 4K NDAA AI 180° Panoramic Mini Dome Network Camera
Features
Milesight MS-C8176-PE 4K NDAA AI 180 Panoramic Mini Dome Network Camera
Milesight 180deg 4K Panoramic Mini Dome IP Camera. As a dome-shaped camera, Milesight 180° Panoramic H.265+ Mini Dome Network Camera is perfect for ultra-wide area monitoring, especially because it can great merge itself into surroundings. It catches 180° horizontal and 86° vertical coverage, achieving extra wide angle viewing with only one single sensor.
- ONVIF Profile G & Q & S & T, API Compatible
- Supports 802.3at PoE
- Supports H.265+/H.265/H.264+/H.264
- 180° Panoramic View
- 4K Ultra High Definition
- 120dB Super WDR
- 0.005Lux Starlight
- Panoramic IR Technology
- 180° IR Coverage
- Heat Map
- IP67 & IK10
- Built-in Microphone
- Integrated Junction Box
- Support microSD/SDHC/SDXC Card Local Storage, up to 256G
- vGRID SaferCity Platform Compliant
Revolutionary IR Performance
Milesight new generation panoramic IR technology comprehensively levels up the night vision quality. The sophisticated structure design guarantees the industry-leading 15m IR distance with fully uniform coverage.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like AI Video Analytics, People Counting and Heat Map, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

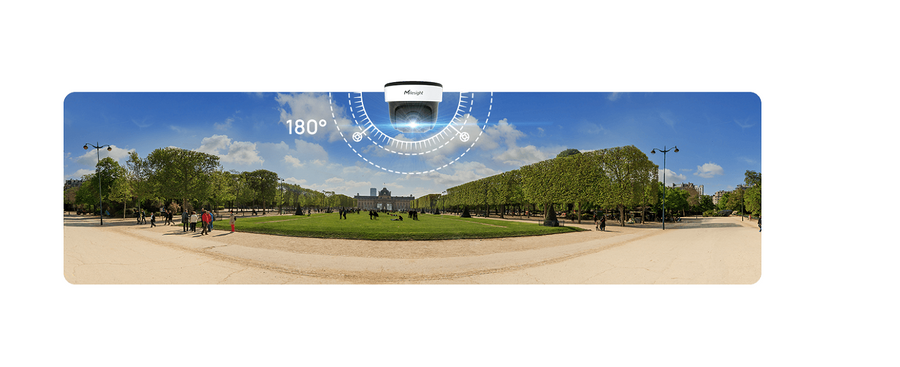

180° Panoramic View
Milesight AI 180° Panoramic Mini Dome Network Camera catches 180° horizontal coverage and 86° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the dome model.

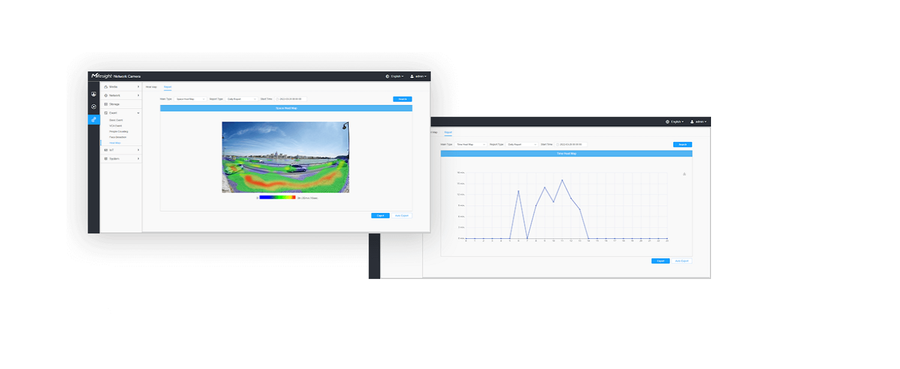

Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

4K Ultra High Definition
It features with 4K ultra high definition which better restores the images to guarantee superb image quality. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

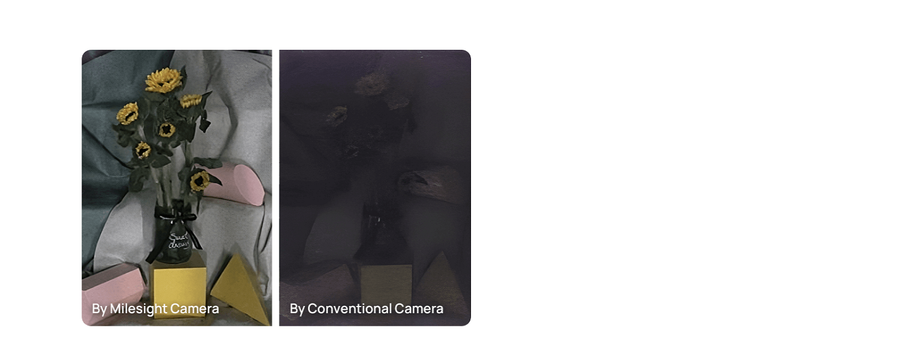

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

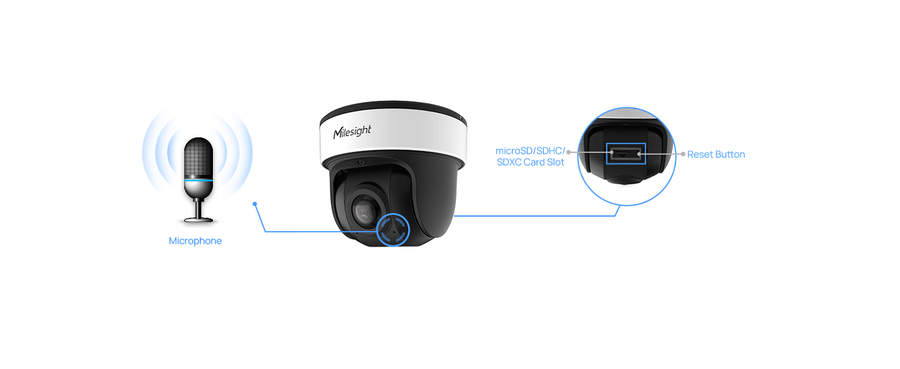

Delicate & Exquisite Design
The dome-shaped design is able to seamlessly blends into any environment while ensuring user-friendly operation for an excellent experience. Also with the built-in mic, the bullet camera is able to provide clearer voice, making it stand out beyond others.

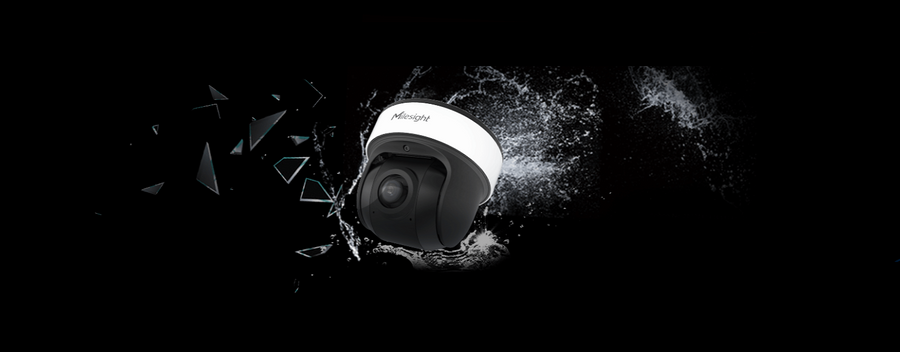

IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications
Technical Specifications
| Product Code | MS-C8176-PE |
|---|---|
| Product Name | 4K AI 180° Panoramic Mini Dome Network Camera |
| Min. Illumination | Color: 0.012Lux @ F2.0, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm @ F2.0 |
| Mount | M12 |
| Field of View | H180°/V86° |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | 180° IR Illumination Up to 15m |
| S/N | >55dB |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps @ (3840x2160,3440x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz/50Hz:25fps @ (704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz/50Hz: 25fps @ (1280x720, 704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| Region Of Interest | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Web Access | Support IE/Firefox/Chrome/Safari Browser |
| Interfaces | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP | Supported - Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Condition | Temperature: -40?~60? / Humidity: 0~90%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 7W MAX, 10W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated metal housing |
| Dimensions/Weight | 127mm x 127mm x 107mm/853g |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Dome Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
