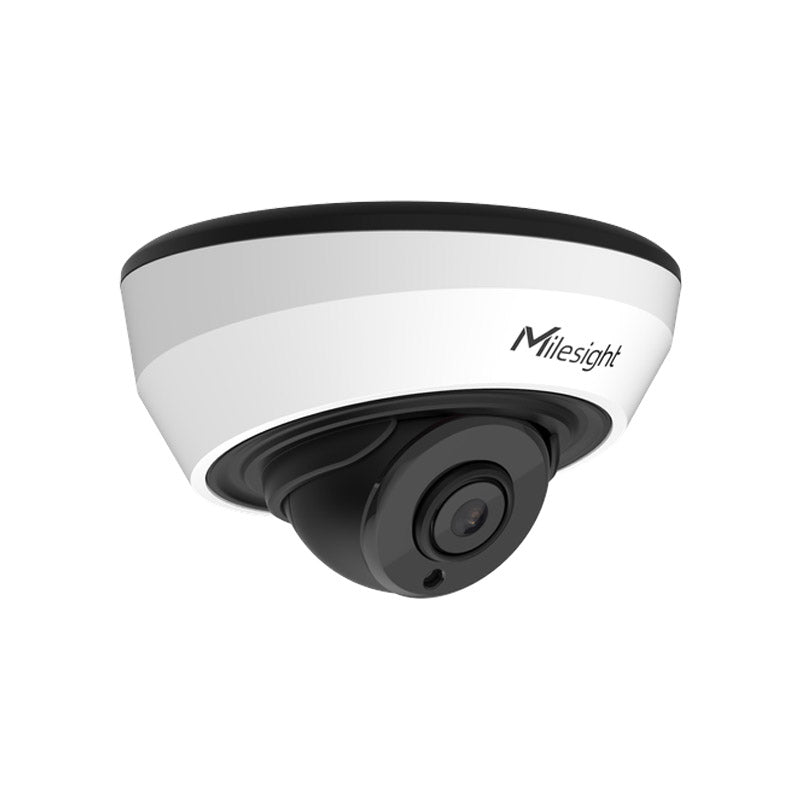

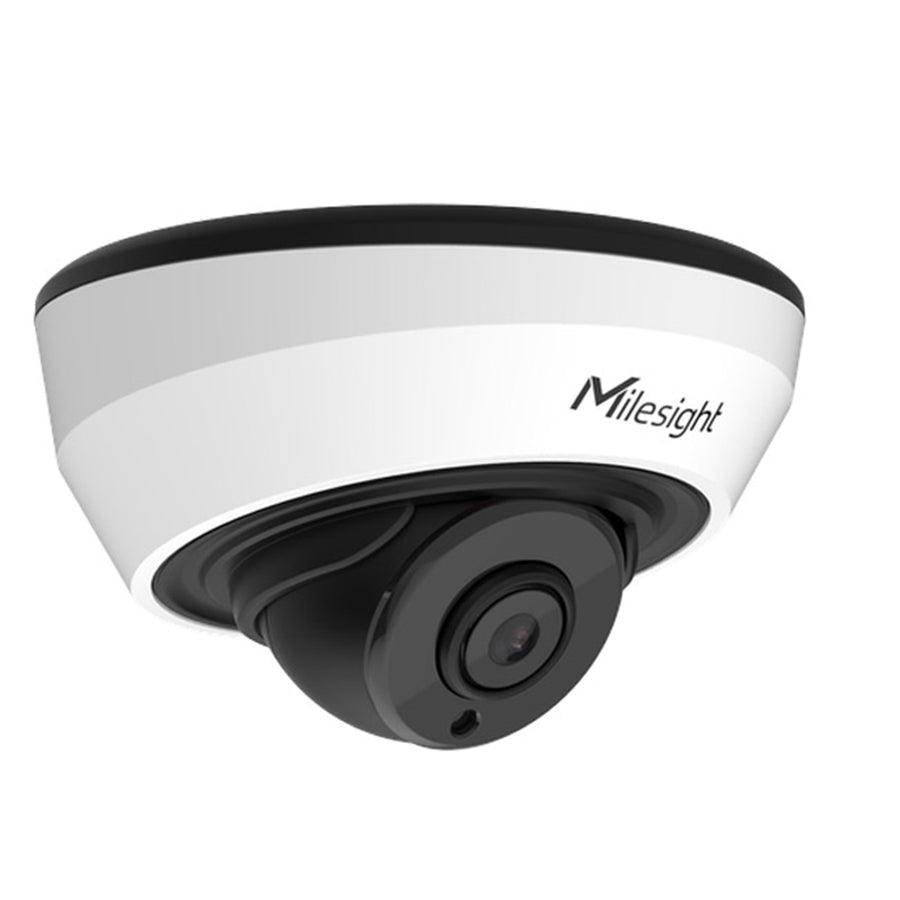

MS-C8183-PD - Milesight 4K NDAA AI IR Mini Dome Network Camera
Features

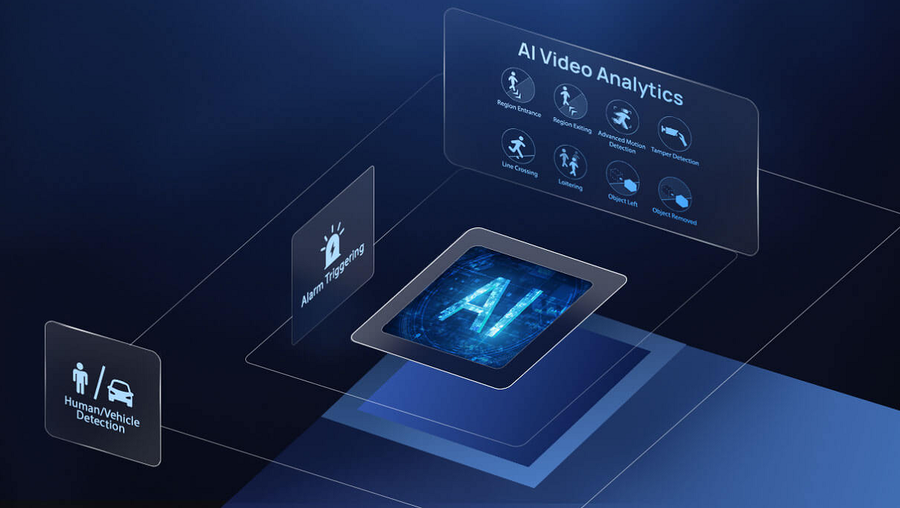

AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

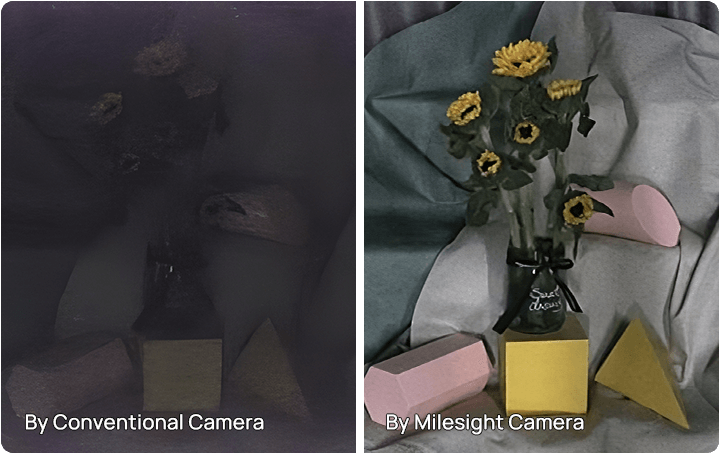

Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, up to 4K Video Viewing Experience, and 60fps High Frame Rate features make it well-suited for various special circumstances.

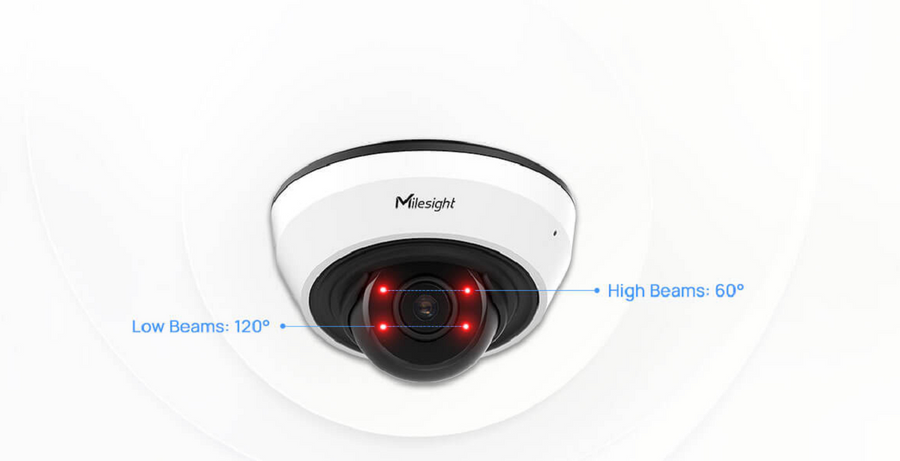

Smart IR II Technology
The IR distance is up to 20m with upgraded IR LEDs of which brightness can be adjusted. Moreover, with the IR anti-reflection panel, the infrared light transmittance is highly increased.

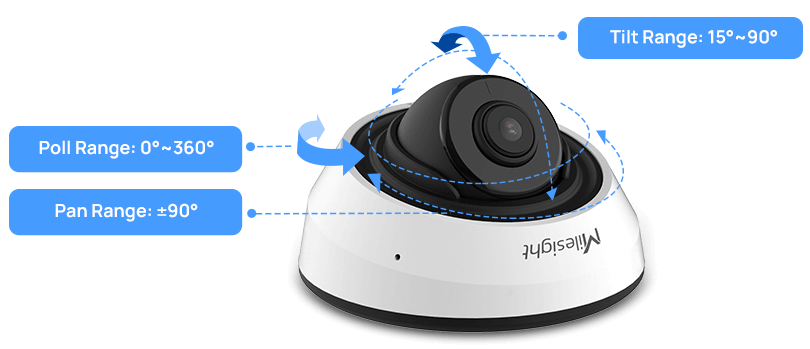

3-axis Mechanical Design
3-axis mechanical design with 180° pan, 15°-90° tilt and 360° roll for fast and easy adjustment of the camera's viewing angle.

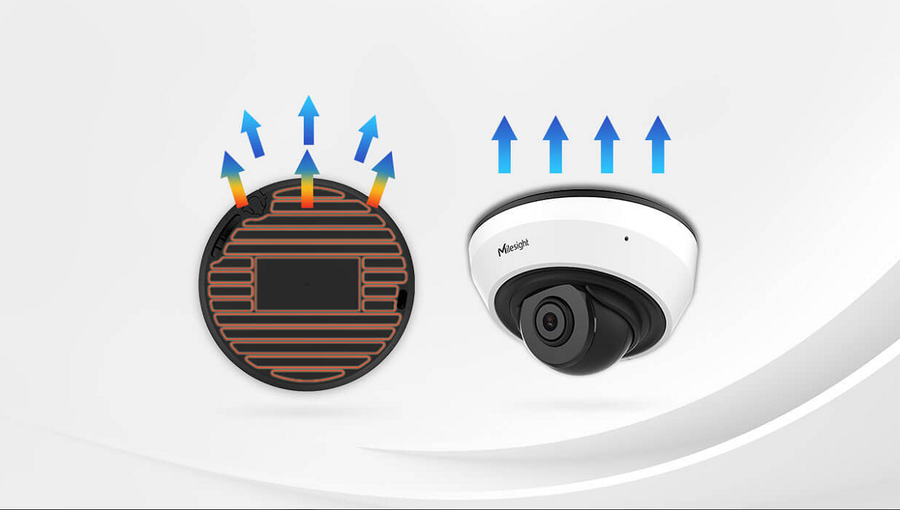

Better Thermal Design
The base of the new AI IR Mini Dome Network Camera has been upgraded with bulged strips to enlarge the heat dissipating area for improved heat dissipation.

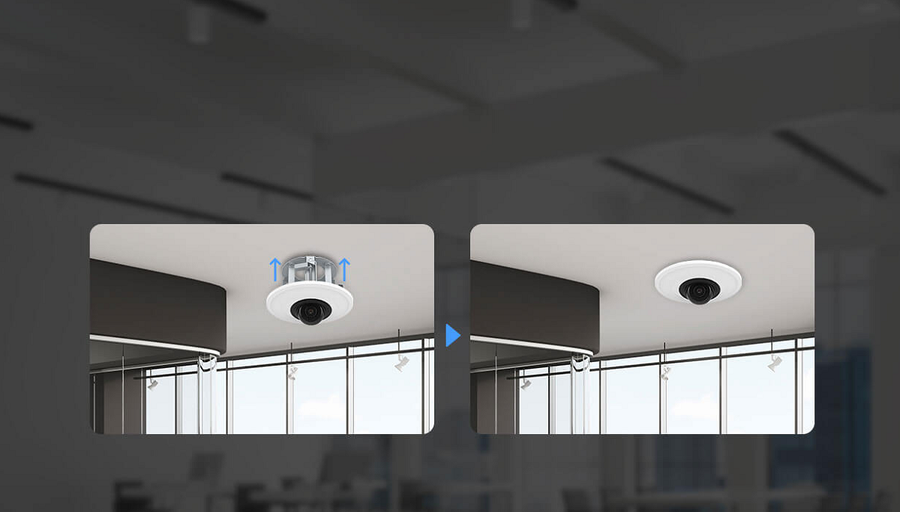

Discreet Installation
With recessed installation available, the camera can skillfully blend in with the environment and easily hide the direction, bringing discreet monitoring performance.

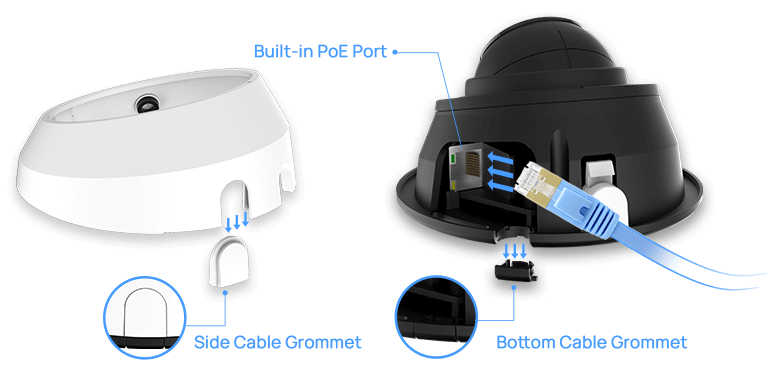

Simple to Install & Adjust
Milesight specially designs a press button, a unique panel on the side of cover and built-in PoE port, making the installation a piece of cake.

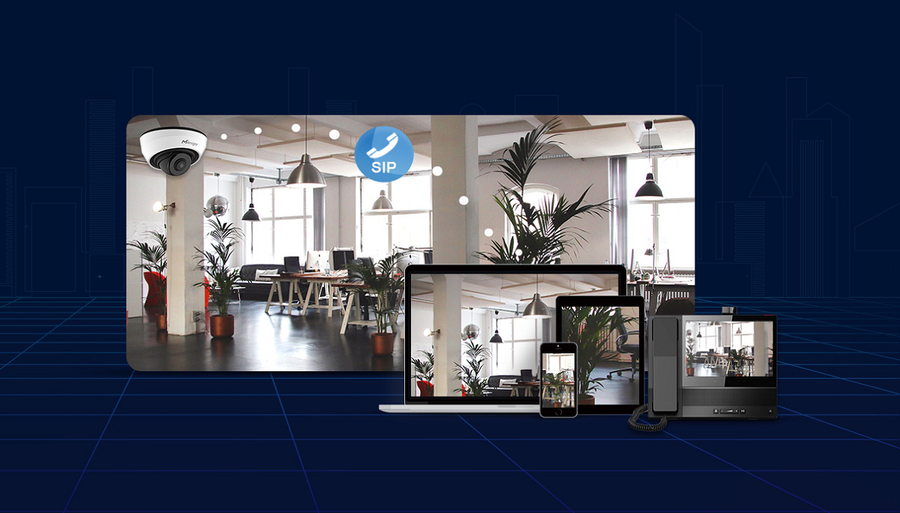

SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
Technical Specifications
| Model No. | MS-C8183-PD |
|---|---|
| Name | 4K AI IR Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux @F1.6B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm |
| Mount | M12 |
| Field of View | H110°/D126°/V60°(2.8mm) |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 20m |
| S/N | >55dB |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps @(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps @(3840x2160)(Optional for S Series) |
| Secondary Stream | 60Hz: 30fps @(704x576, 640x480, 640x360, 352x288)50Hz: 25fps @(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps @(1280x720, 704x576, 640x480, 640x360, 352x288)50Hz: 25fps @(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | Network Storage NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | N/A |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T, API |
| Working Temperature | -40°C~60°C |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 3.7W MAX, 5.4W MAX (With IR on) |
| Weight | 200g |
| Dimensions | F97.8mmx57.9mm |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > Dome Cameras |
| Weight | 0.5 kg |
| Warranty |
|---|
