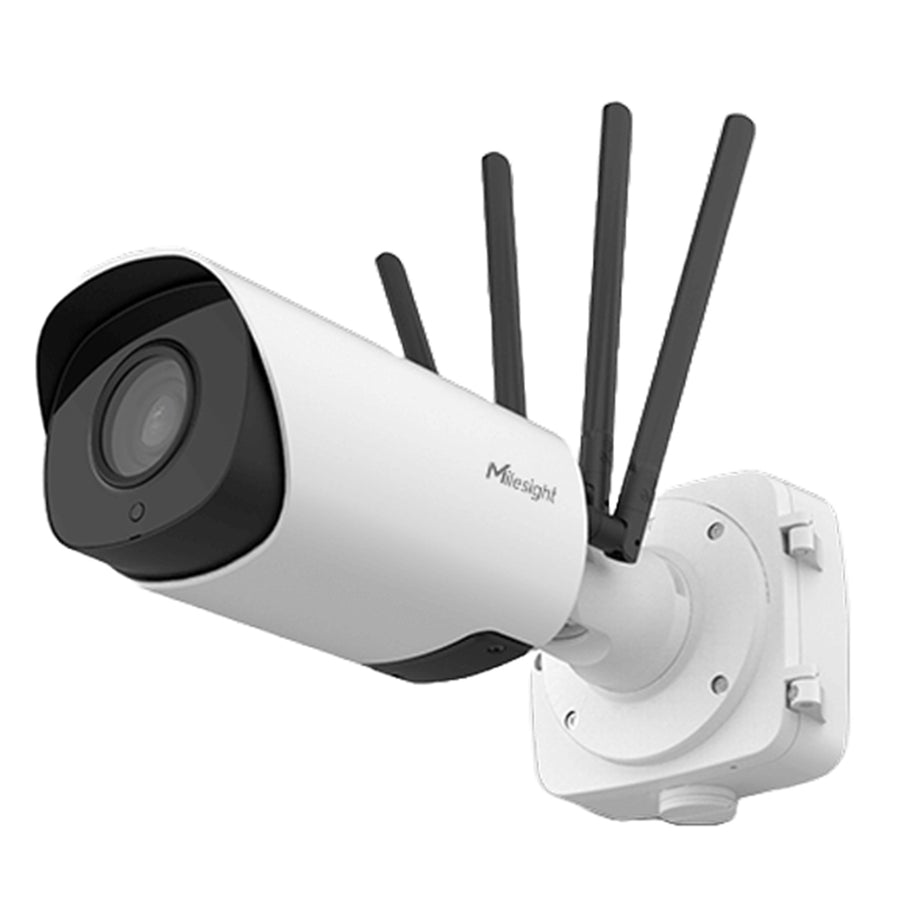

MS-C8266-X4GPE - Milesight 4K 5G AI 4X Pro Bullet Plus Network Camera

SKU: MS-C8266-X4GPE ● In Stock
$2,535.64
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Milesight 4K 5G AI 4X Pro Bullet Plus Network Camera

- Up to 4K High Resolution
- AI Deep Learning
- 5G Technology
- 4x Optical Zoom
- 1/1.8" STARVIS Starlight Sensor
- IP67
- Support microSD/SDHC/SDXC Card Local Storage, up to 1TB

5G High Bandwidth

5G's spectrum is higher in frequency than the bands used in 4G and earlier generations of cellular networks. Thanks to the high bandwidth and massive network capacity of 5G networks, the camera is qualified to stream ultra high definition videos up to 4K even 8K, supporting upload and download ultra high resolution footages within few seconds.



5G Low Latency

5G technology differs from previous generations of cellular technology in that the response time required for a set of data to be transmitted between two points is significantly reduced. Benefit brought by higher data speed of 5G technology, it can greatly reduce the network latency and camera response time, providing a smooth real-time monitoring with almost no lagging time.



5G Broad Extensibility

Empowered by 5G and AI technology, the camera has enriched connectivity feature for unparalleled flexibility and scalability. Compared with traditional video surveillance, smart video surveillance expands the scope of security monitoring, bringing new possibilities for industries such as Smart City, Smart Retail, Smart Medical, Smart Transportation and other fields.



5G High Mobility

Leveraging the high transmitted power of 5G, the camera can transmit or receive video signals over Internet wirelessly by simply powering the camera and inserting a SIM card. Days of complicated cable and fiber connections are gone. Compared with add-on routers, the built-in 5G module provides a more flexible while reliable security solution.



Edge Computing

5G will further open up the use cases for edge computing, benefiting AI algorithm running on the edge to deliver advanced video analytics solutions such as face detection, license plate recognition, etc. The decentralization greatly releases the computing power in central management, reducing the time cost, thus improving the comprehensive working efficiency.





AI Empowers Security

Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

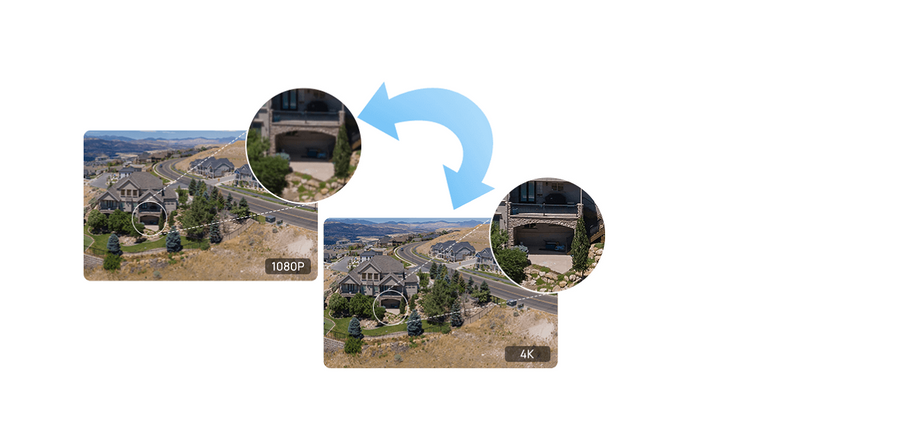

4K High Resolution

Delivering up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), the camera provides users with ultra-high-definition video viewing experience.

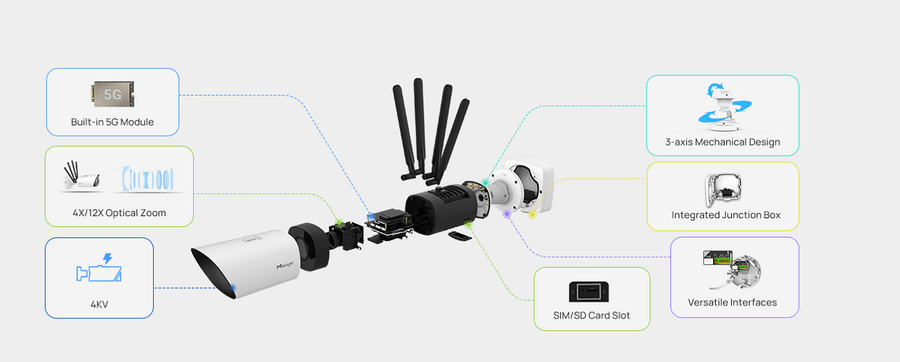

Easy Deployment and Compact Structure

Featuring 4x Optical Zoom Lens, the camera achieves a clear visual experience perfectly for long distance. 5G antenna and LoRa antenna are built outside the camera and the 5G module is directly merged inside the camera.

Specifications

Technical Specifications

Name 4K 5G AI 4x Pro Bullet Plus Network Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.009Lux@ F1.6B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Lens 8~32mm, 4x Optical Zoom
Field of View H44°~H13°/D51°~D15°/V25°~V7°
Mount F14
Focus Control Auto/Manual
Aperture F1.6-F1.7
Iris Control Auto
Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Brightness/Contrast/Saturation/Sharpness
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Wireless Communication Support 5G/4G/3G
Frequency Bands 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66 /n70/n71/n75/n76/n77/n78/n79LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20 /B25/B26/B28/B29/B30/B32/B66/B71LTE-TDD: B34/B38/B39/B40/B41/B42/B48LAA: B46WCDMA: B1/B2/B4/B5/B8/B19
Wireless Transmission SA: DL 2.4Gbps; UL 900Mbps
Speed NSA: DL 3.4Gbps; UL 550MbpsLTE: DL 1.6Gbps; UL 200Mbps
SIM Card Nano SIM
Network Storage NAS(Support NFS, SMB/CIFS
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Video Analysis Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap;Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting& Report Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & M & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 8W MAX 16W MAX (With IR on)
Surge Protection 4KV
Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body)
Dimensions 320mm x 134mm x 126mm320mm x 134mm x 292mm (With 5G Antennas)
Weight 1608g
Naming Convention P - PoE SupportedG - 5G Supported
