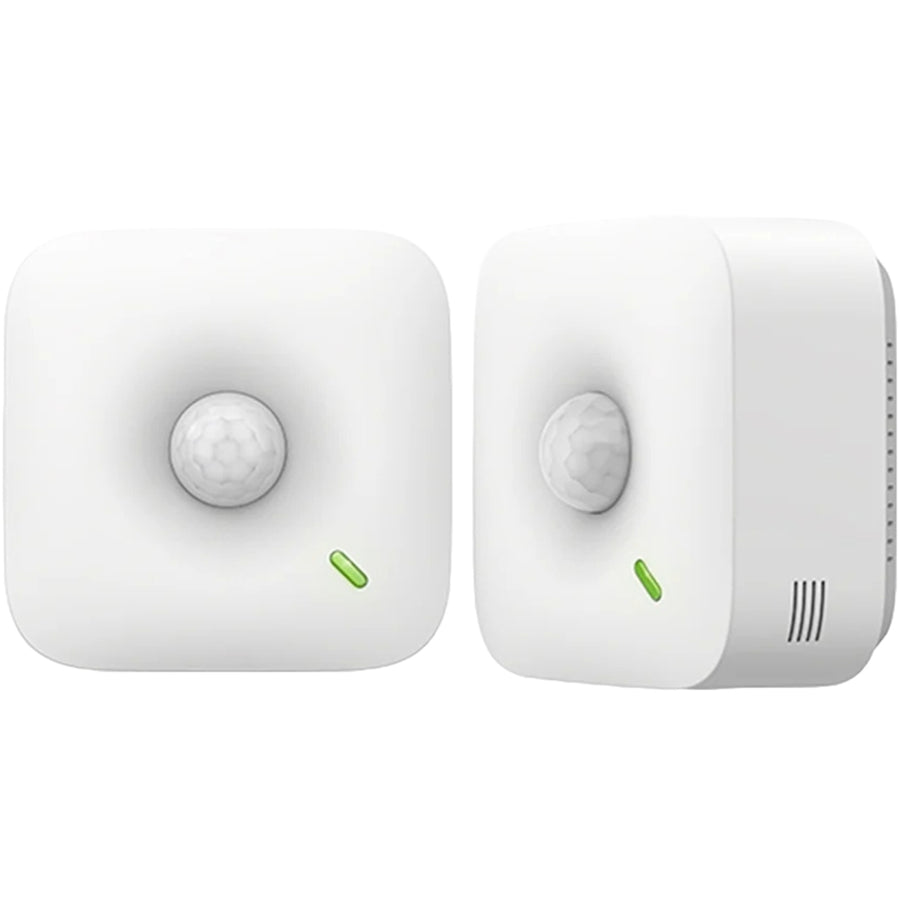

MS1 - Ubibot MS1 Cloud-Supported WiFi Remote Infrared Motion Sensor
MS1 - Ubibot MS1 Cloud-Supported WiFi Remote Infrared Motion Sensor
Features

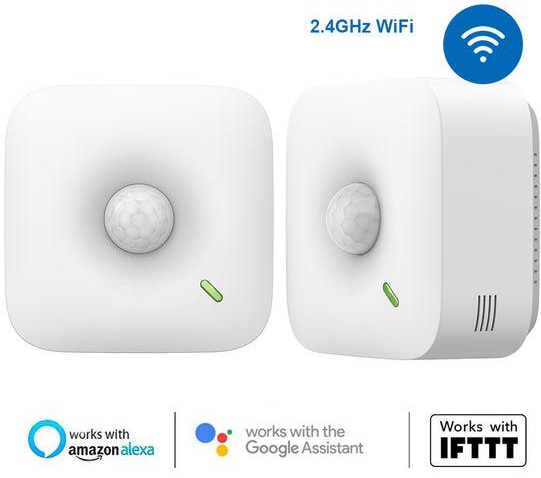

Ubibot MS1 Cloud-Supported WiFi Remote Infrared Motion IoT Sensor
Motion sensor MS1 supports WiFi connectivity. When installed in a place with wide field of view, the motion sensor can accurately sense the slight movement of people or animals. The trigger log is recorded on the IoT cloud platform of UbiBot®, which allows you to download anytime and anywhere.
UbiBot® motion sensor MS1 is connected to the IoT big data platform through wireless WiFi/RJ45 Ethernet cable. The data of motion from people or animals collected by the built-in sensor are uploaded in real time, and can be accessed on mobile phones, tablets, computers and other terminals of the Internet of Things.

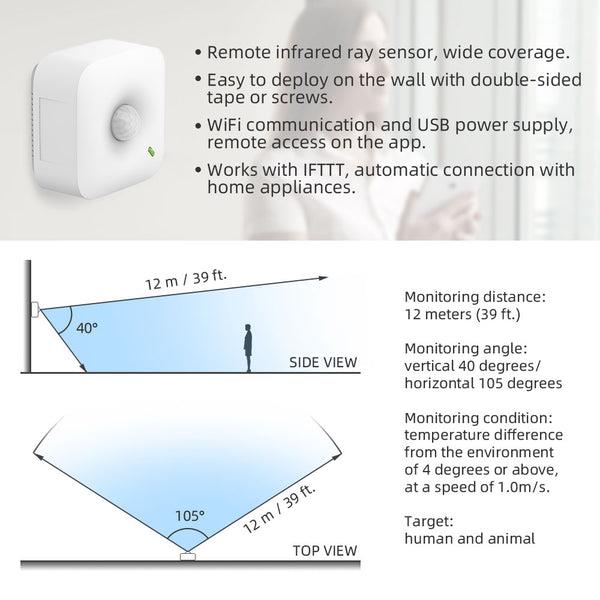

Detection distance is 0-12 meters and detection angle is vertical 40 degrees & horizontal 105 degrees. Easily cover all kinds of scenes to ensure your safety. Please avoid to install on glass doors and windows, air conditioners, heat sources and other air temperature change sensitive places to avoid false alarms.

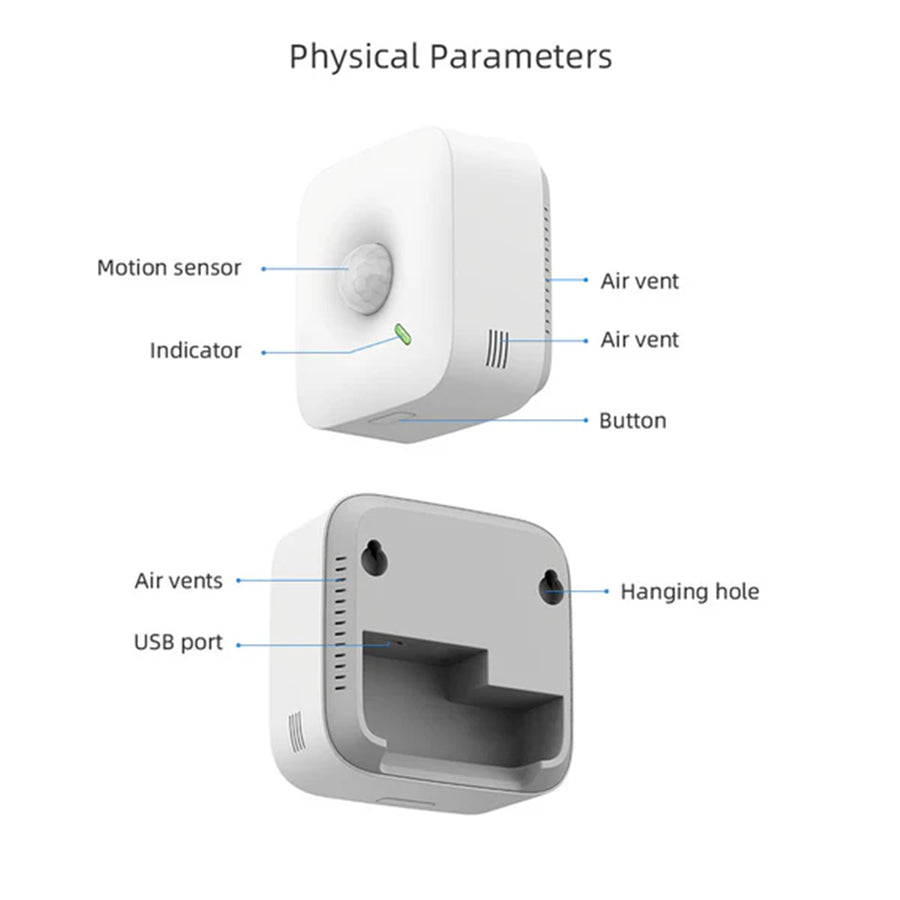

- Powered by Micro USB cable, painless in deployment
- Real-time notifications via app, email, SMS text, voice call, etc.
- Keep your home, office, warehouse safe and under guard
- No hub required

Supports 2.4 GHz WiFi connection, easy to set up

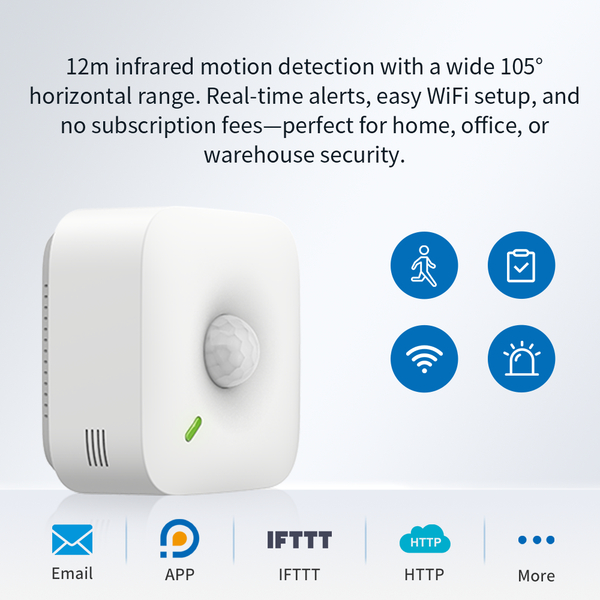

Remote infrared motion sensor, up to 12 meters detection distance; Wide detection range: horizontal 105 degrees, vertical 40 degrees.

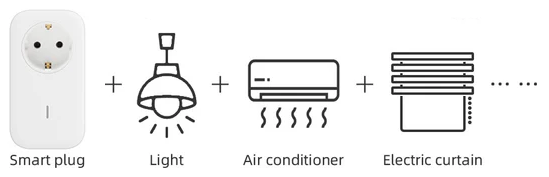

Works with Ubibot smart plug, easy to trigger automation with home appliances.

Cloud-based platform, free to access, no subscription fees.

Blends into any home design

Specifications
Technical Specifications
| Product Type | Infrared Motion Sensor |
|---|---|
| Model | UbiBot MS1 |
| Detection Distance | Up to 12 meters |
| Detection Angle | Horizontal 105°, Vertical 40° |
| Power Supply | Micro USB (5V) |
| Network Connectivity | 2.4GHz WiFi (802.11 b/g/n) |
| Bluetooth Support | BT4.2, Classic BT & BLE |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | = 90% RH, Non-condensing |
| Memory Capacity | Stores up to 300,000 records |
| Dimensions | 80 × 80 × 48 mm |
| Material | Flame-resistant ABS + PC |
| Colour | Matte white |
| Alerts | App notifications, email, SMS, voice call, HTTP |
| Smart Integration | Compatible with IFTTT, Alexa, Google Assistant |

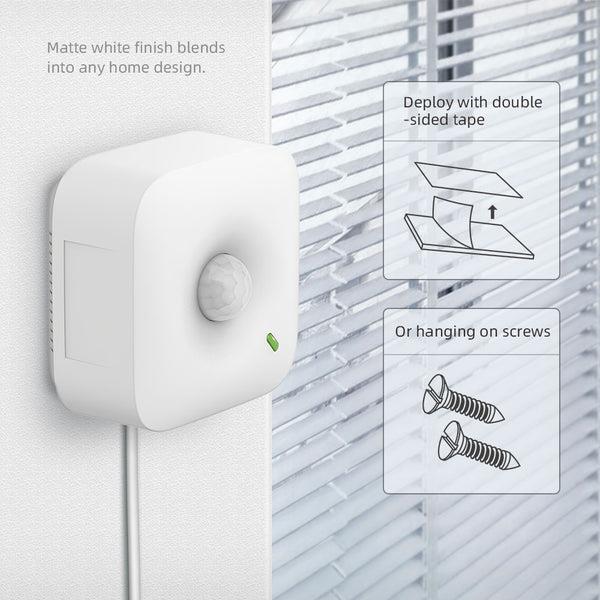

| Installation | Wall-mountable with screws or adhesive |
