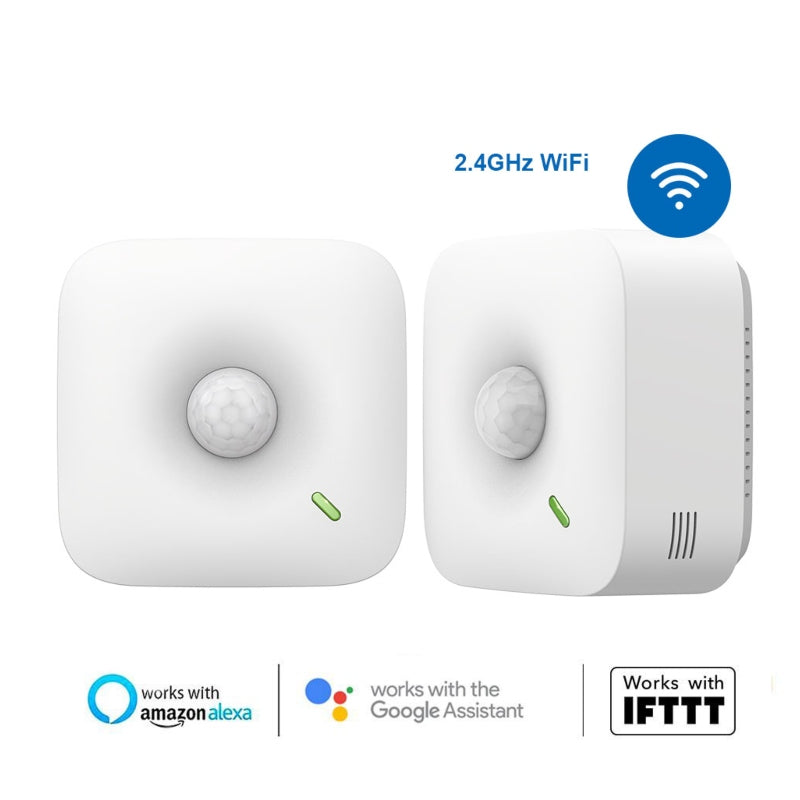

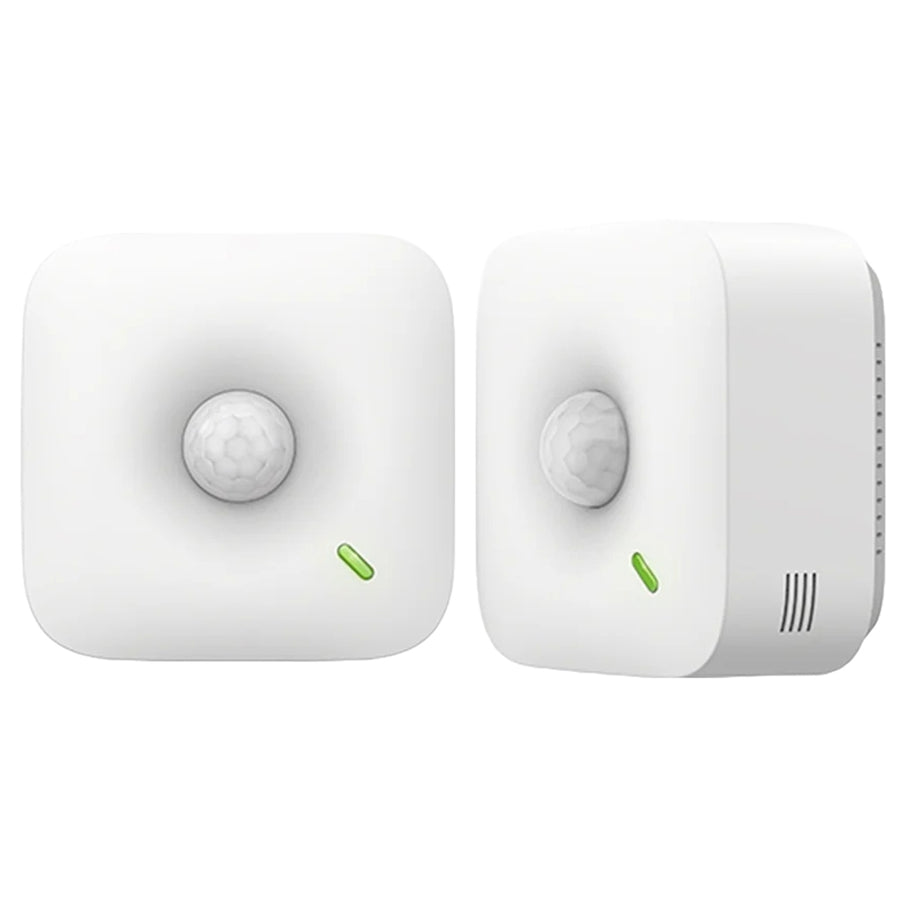

MS1P - Ubibot MS1P Cloud-Supported WiFi, PoE Ethernet Powered Remote Infrared Motion Sensor
Features
Ubibot MS1P Cloud-Supported WiFi, PoE Ethernet Powered Remote Infrared Motion IoT Sensor. Motion sensor MS1P supports WiFi and RJ45 Ethernet cable connection. When installed in a place with wide field of view, the motion sensor can accurately sense the slight movement of people or animals. The trigger log is recorded on the IoT cloud platform of UbiBot®, which allows you to download anytime and anywhere.
Supports WiFi and RJ45 Ethernet cable connection. POE network ensures much easier deployment, stability and real-time update. Support 220V power supply or USB, POE power supply. Multiple ways of communications and power supply fit different monitoring environments, reducing wiring density.

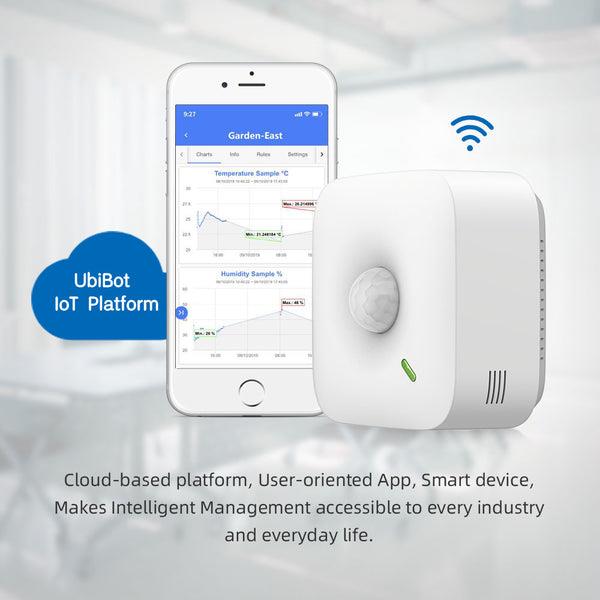

UbiBot® motion sensor MS1 is connected to the IoT big data platform through wireless WiFi/RJ45 Ethernet cable. The data of motion from people or animals collected by the built-in sensor are uploaded in real time, and can be accessed on mobile phones, tablets, computers and other terminals of the Internet of Things.
Detection distance is 0-12 meters and detection angle is vertical 40 degrees & horizontal 105 degrees. Easily cover all kinds of scenes to ensure your safety.Please avoid to install on glass doors and windows, air conditioners, heat sources and other air temperature change sensitive places to avoid false alarms.

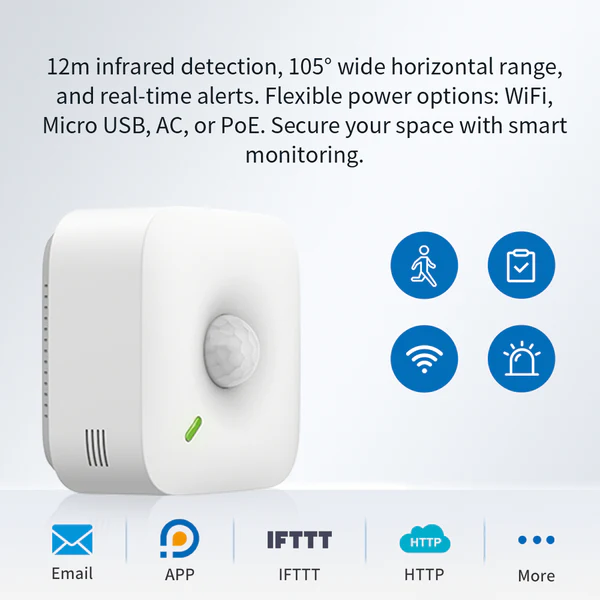

- Supports Micro USB cable, AC power, POE power supply
- Real-time notifications via app, email, SMS text, voice call, etc.
- Keep your home, office, warehouse safe and under guard
- No hub required

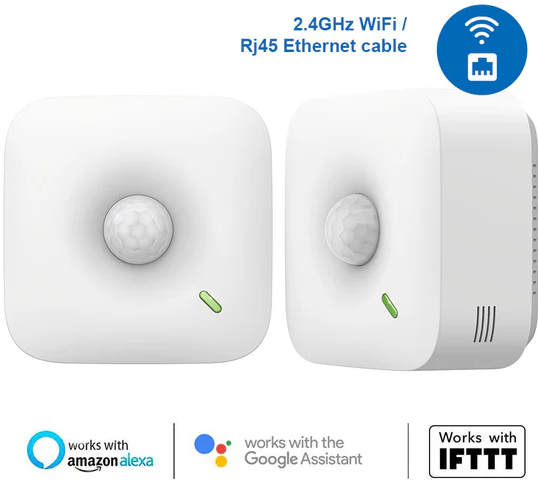

Supports 2.4 GHz WiFi / Rj45 Ethernet connection, easy to set up.

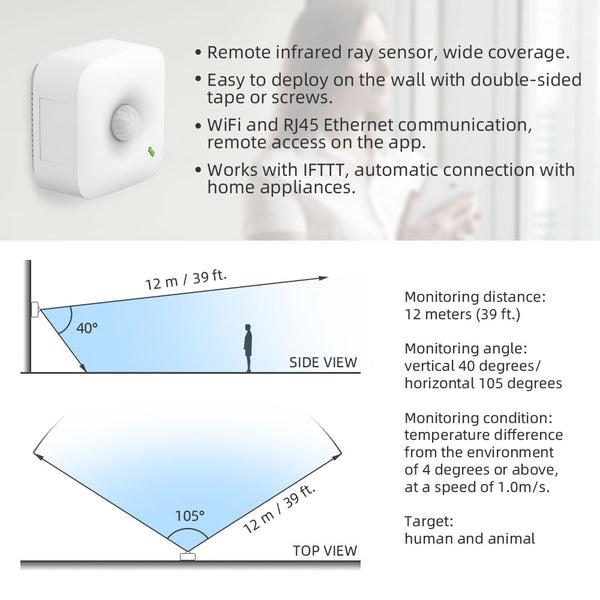

Remote infrared motion sensor, up to 12 meters detection distance; Wide detection range: horizontal 105 degrees, vertical 40 degrees.

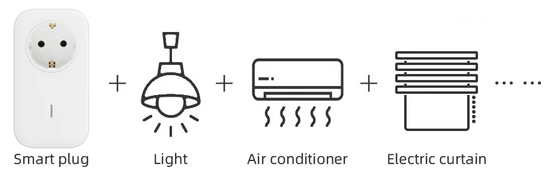

Works with Ubibot smart plug, easy to trigger automation with home appliances.
Cloud-based platform, free to access, no subscription fees.
Blends into any home design
Specifications
Technical Specifications
| Product Type | Infrared Motion Sensor |
|---|---|
| Model | UbiBot MS1P |
| Detection Distance | Up to 12 meters |
| Detection Angle | Horizontal 105°, Vertical 40° |
| Power Supply Options | Micro USB (5V), POE (IEEE 802.3-2005), AC 220V |
| Network Connectivity | 2.4GHz WiFi, RJ45 Ethernet |
| Bluetooth Support | BT4.2, Classic BT & BLE |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | =70% RH, Non-condensing |
| Memory Capacity | Stores up to 300,000 records |
| Dimensions | 80 × 80 × 48 mm |
| Material | Flame-resistant ABS + PC |
| Colour | Matte white |

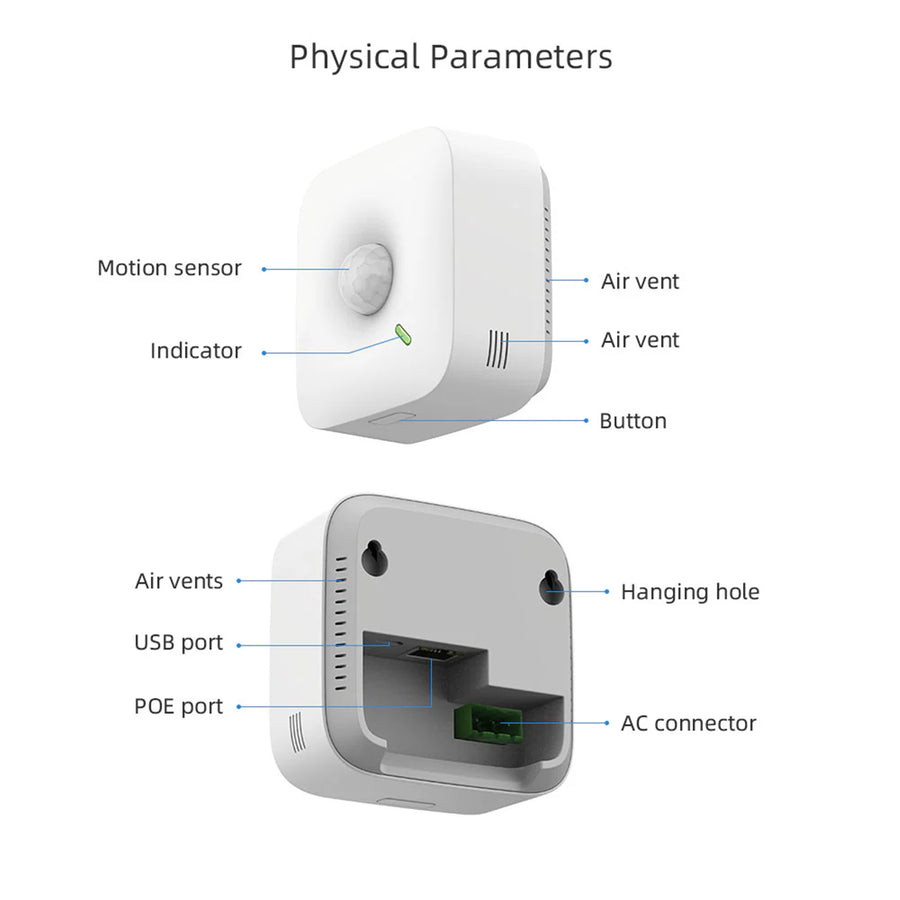

| Ports | 1 × Micro USB, 1 × RJ45 |
| Brand | UbiBot |
|---|---|
| Product Type | Smart Home & Security > Smart Security |
| Weight | 0.5 kg |
| Warranty |
|---|
