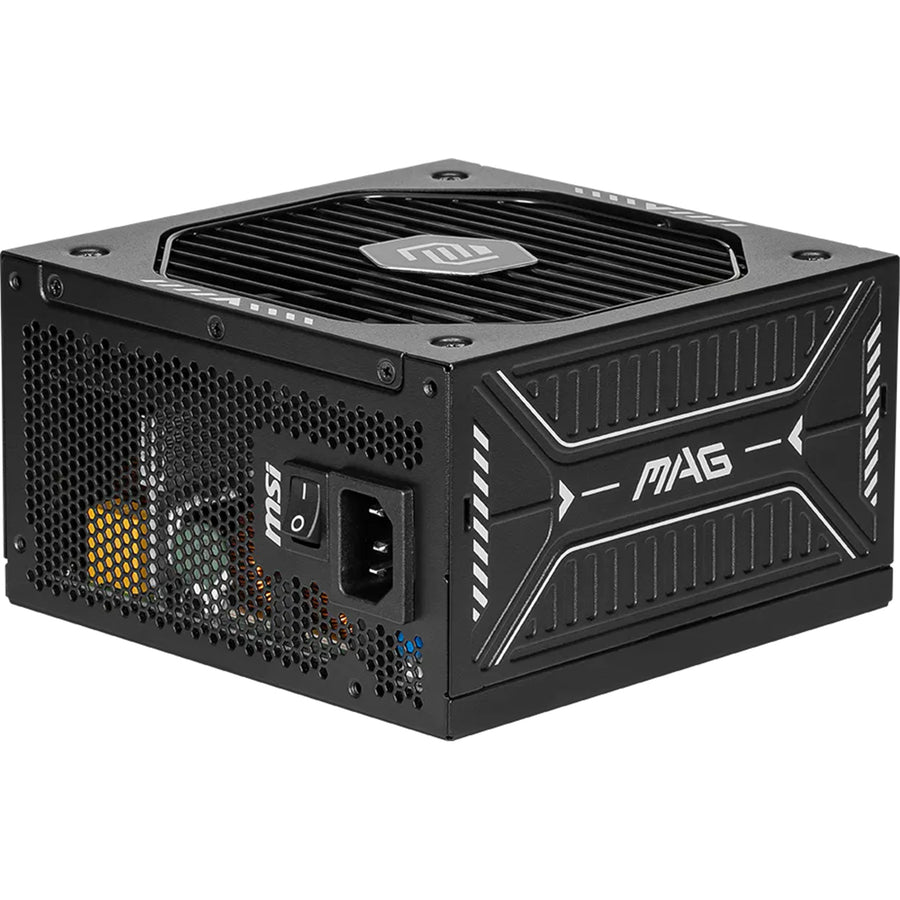

MSI MAG A750GLS PCIE5 750W Power Supply

MAG A750GLS PCIE5

- Supports Nvidia® GeForce RTX™ 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

MAG A750GLS PCIE5

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MAG MSI ARSENAL GAMING

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Reliable Connector Design

The power supply features the latest 12V-2x6 (H++) connector, designed with an optimized structure that complies with the PCIe CEM 5.1 standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.

Semi Digital

This power supply comes with IC to control PFC, LLC significantly enhance accuracy. This architecture enables managing dynamic adjustments, delivering more stable and efficient power output.

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 220% total power excursion and 3x GPU power excursion.

Gold Efficiency Certification

The efficiency of your power supply significantly impacts overall power consumption. The Gold certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

Midnight Sound Level

This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.

Fan Curve

Fluid Dynamic Bearing

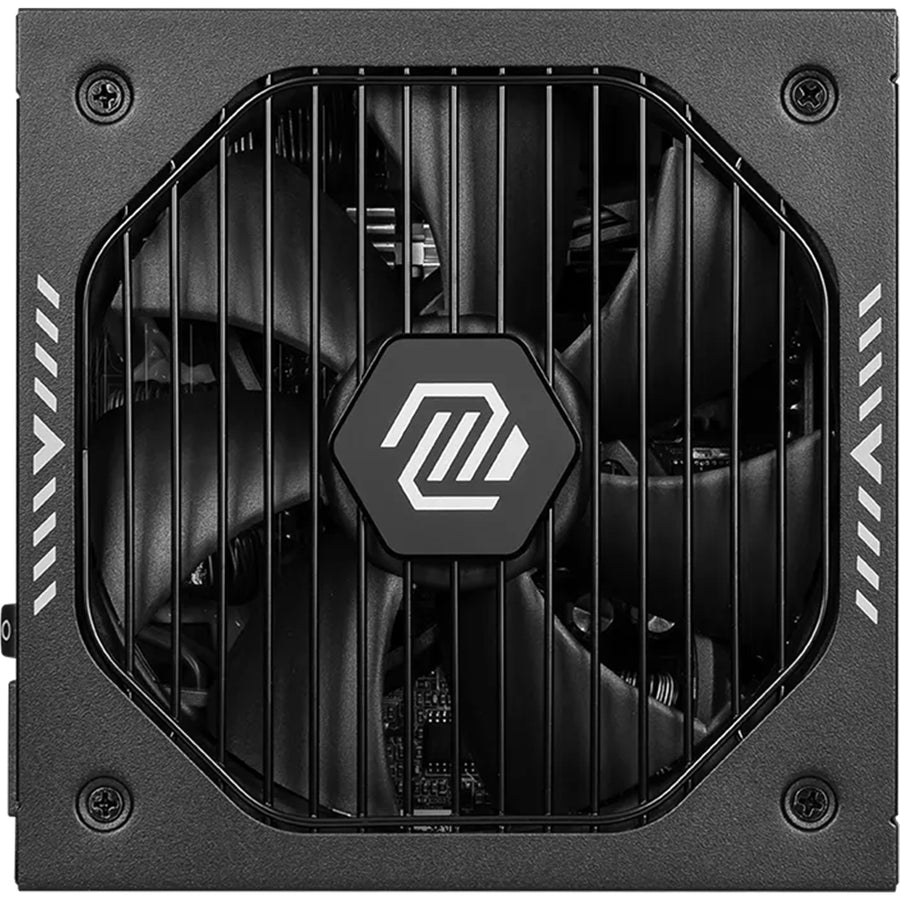

This power supply comes with 135 mm fluid dynamic bearing fan, chosen to increase the life span of the fan while maintaining low noise level.

Alloy Copper Connector Terminals

The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.

Built for Maximum Safety

The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

Protection Mechanisms

To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.

- OCP
- OTP
- OPP
- SCP
- OVP
- UVP
- SIP
- NLO

Dual-color 12V-2x6 cable

The 12V-2x6 cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

Embossed Jacket Modular Cable

Using premium materials to enhance the cable's flexibility and bendability, the sleek matt black design not only elevates its appearance but also makes cable management significantly easier and more sophisticated for users.

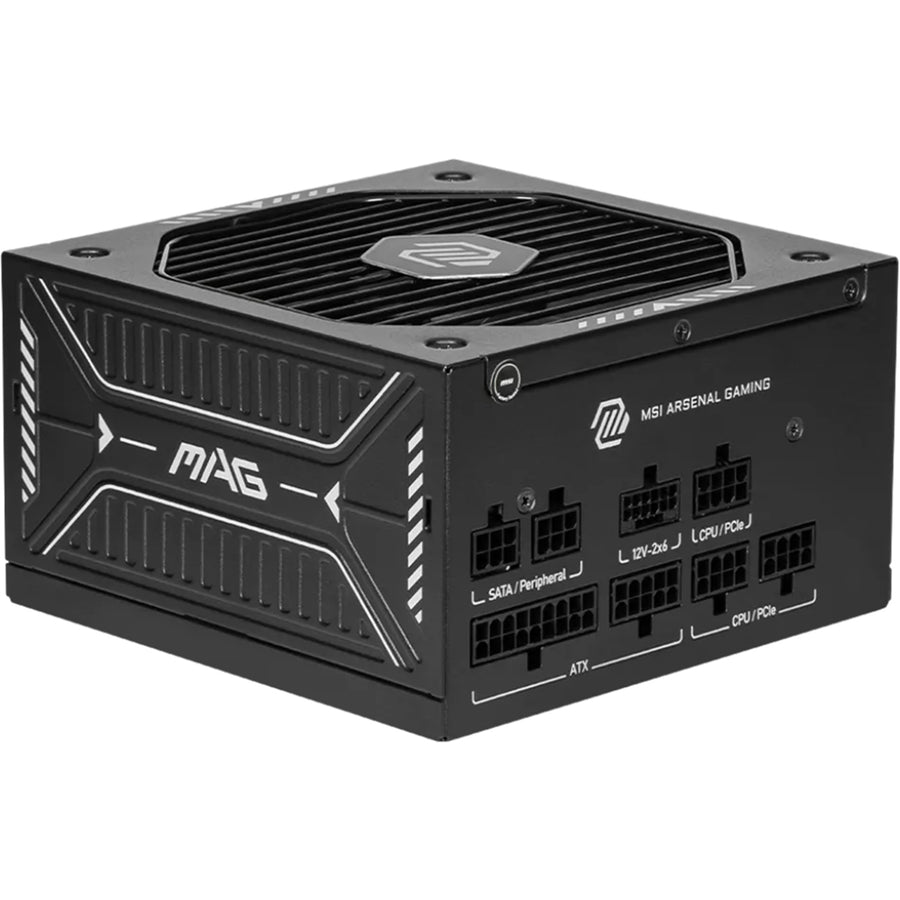

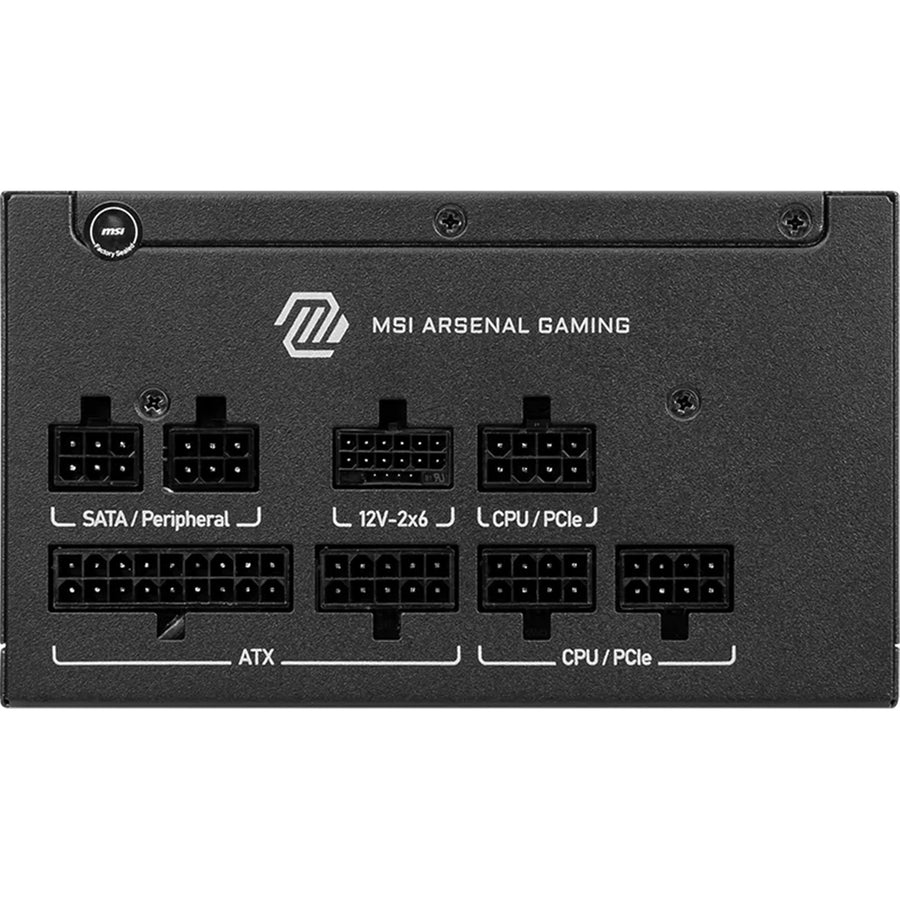

Connectors

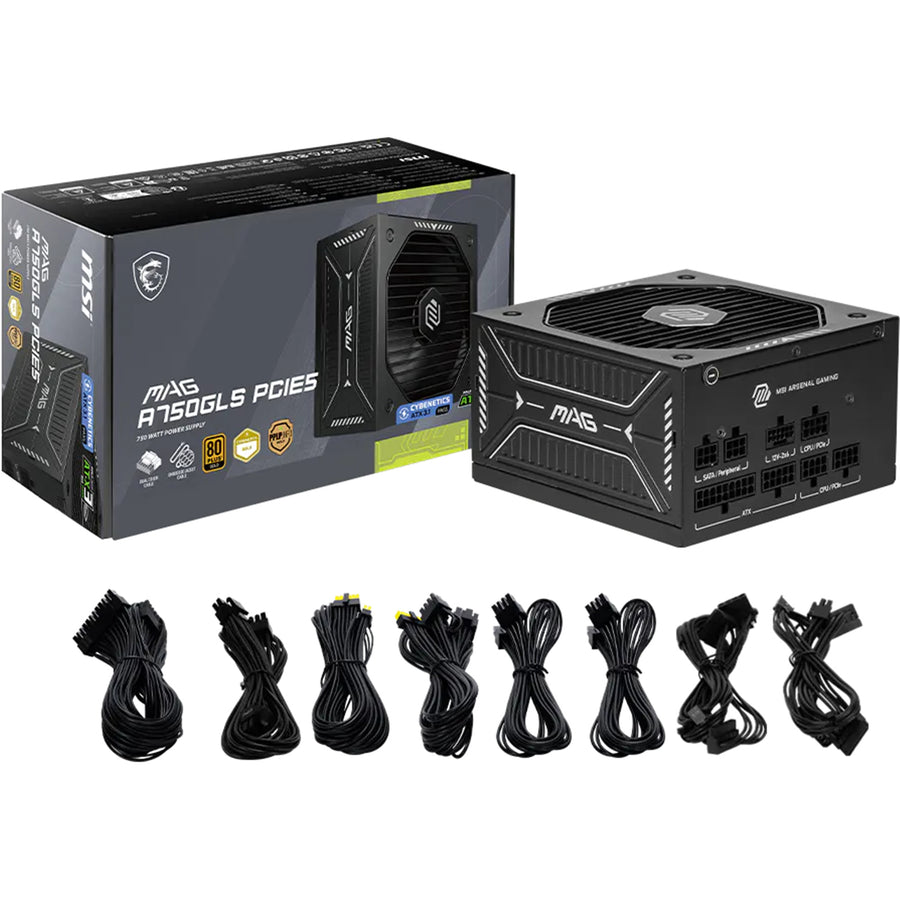

Cables

Versatile ways of connection according to the power com-cable design of different graphics cards.
