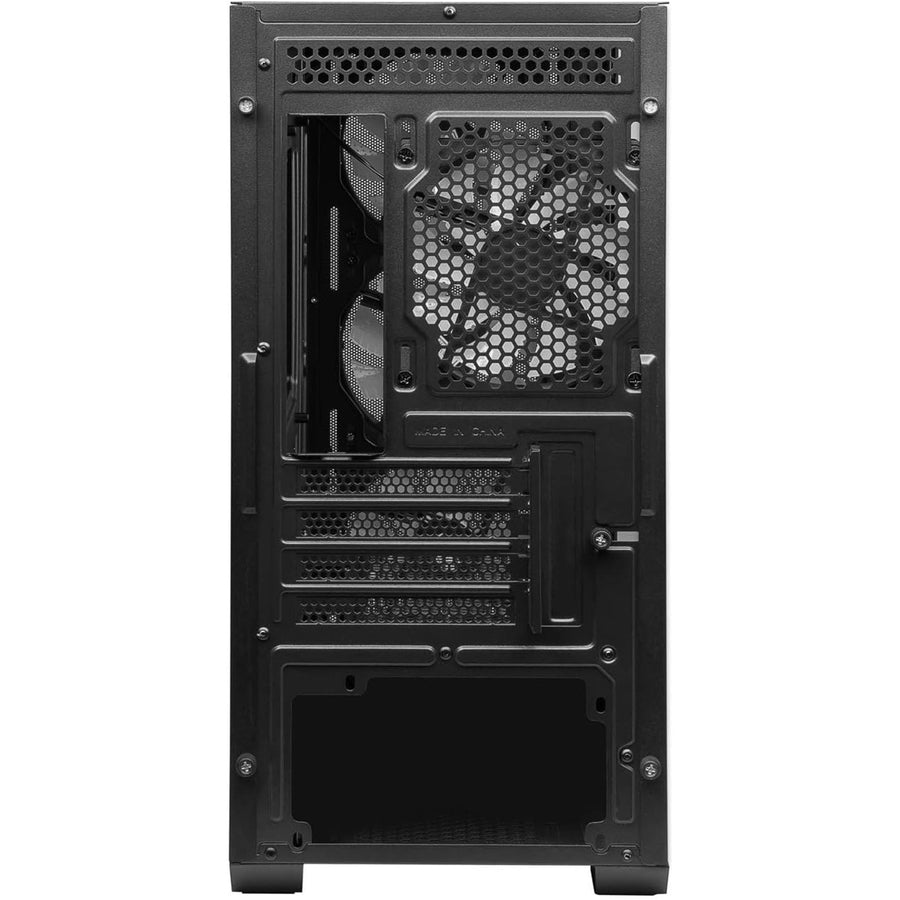

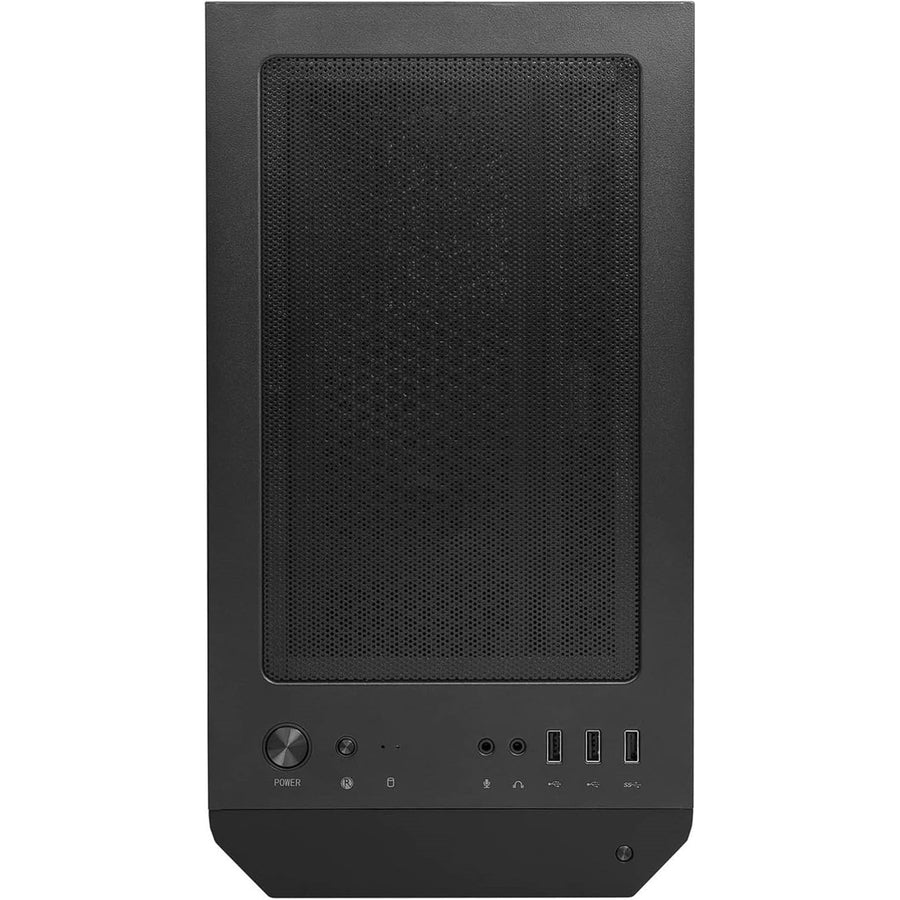

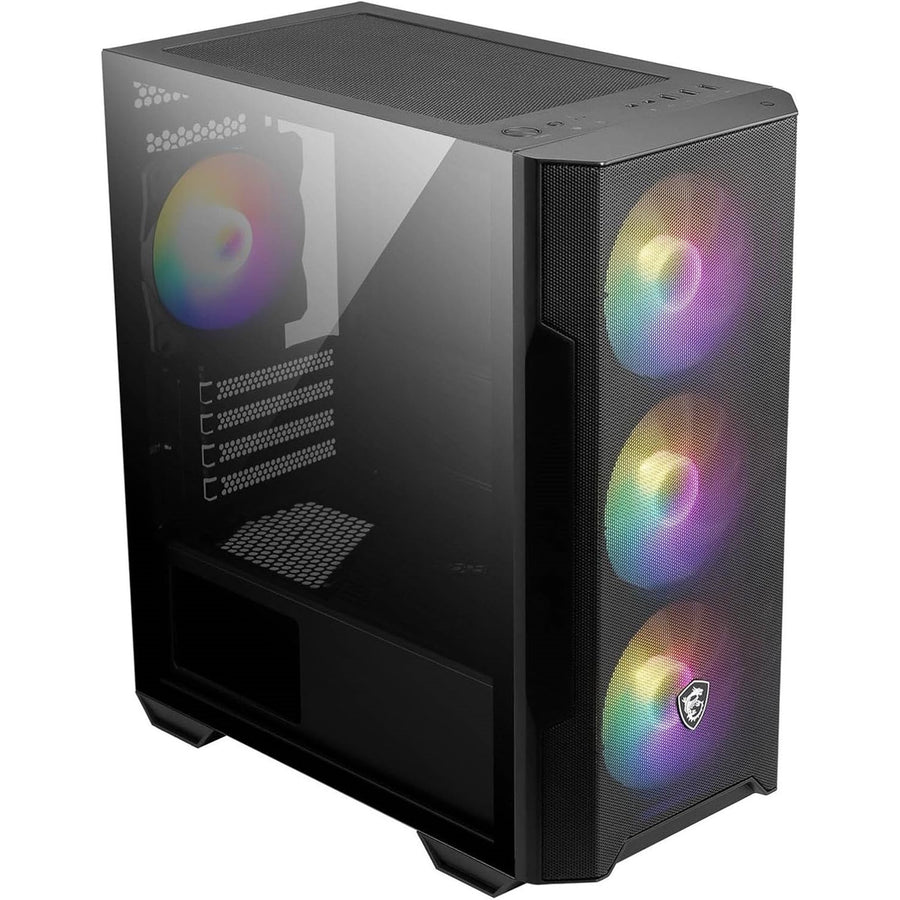

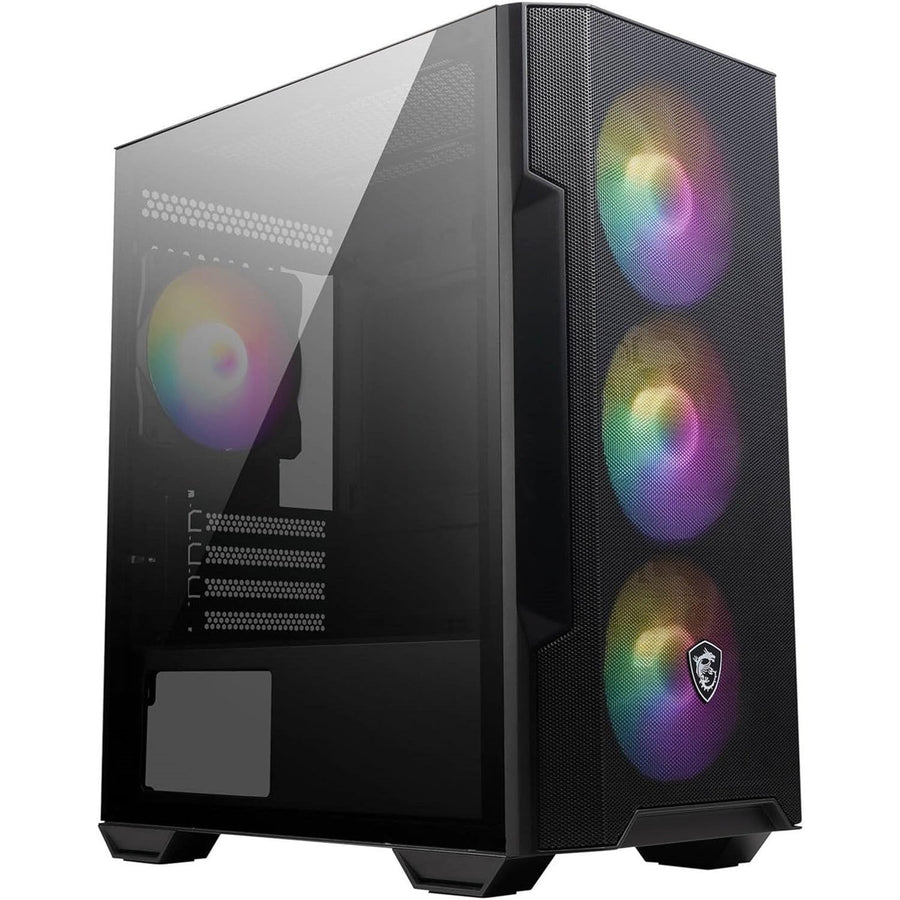

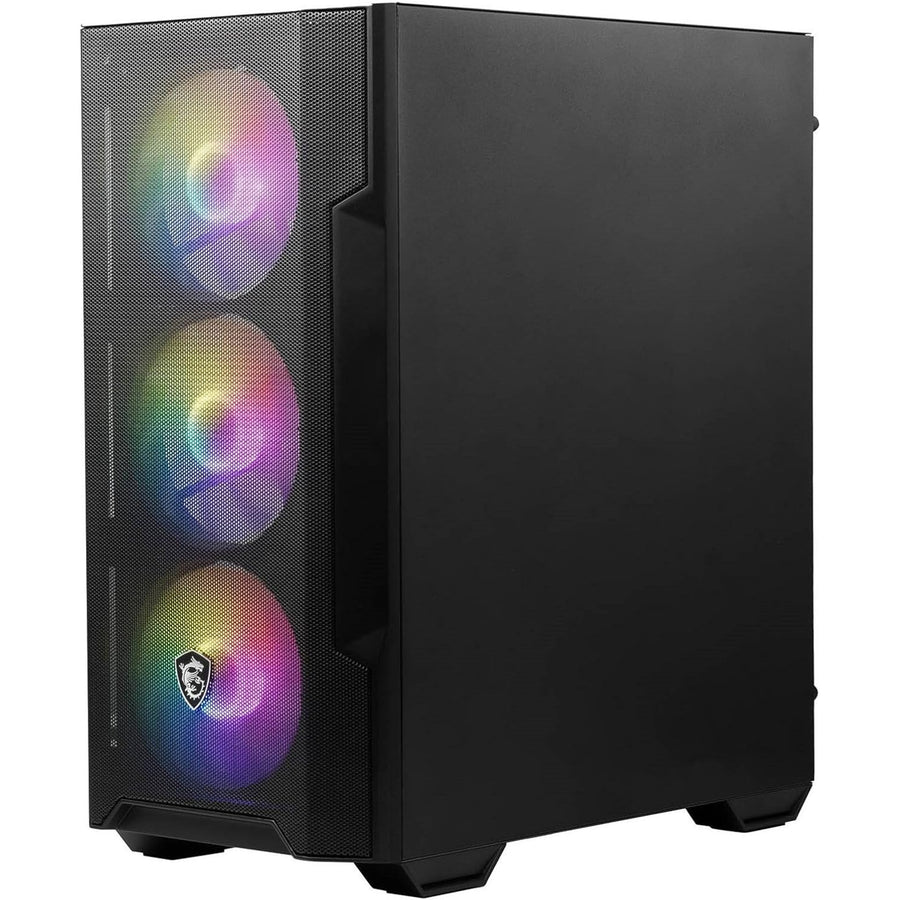

MSI MAG FORGE M100R Tempered Glass Mini Tower Case - Black
Features
MAG FORGE M100R
- Can install up to 6x system fans, providing ventilation and stable performance to the whole system.
- Tempered Glass Side Panel displaying RGB lighting effects.
- The magnetic filter on the top vents being easily remove for cleaning.
- Use the fan cable to create more possibilities for adding more fans to your system.
- Click through the profile at ease and choose a favorite.
- Built-in ARGB fans with striking lighting and vivid lighting effects.
- Through the LED Switch button can intuitively control & switch 9 lighting effects.

MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big performance.

HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.
OPTIMIZED AIRFLOW
The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.

COMPONENTS CLEARANCE

HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5"+1x3.5" or 2x2.5" + 2x3.5" storages.

MOTHERBOARD SUPPORT

EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
1 TO 6 ARGB CONTROL BOARD
User can intuitively control & switch 9 lighting effects through the LED switch button.

1-TO-4 FAN CABLE
Use the 1-to-4 Fan Cable to create more possibilities for adding more fans to your system.

FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.
TEMPERED GLASS WINDOW
The 3mm tempered glass window offers the best durability and sytem accessibility.

INSTA-LIGHT LOOP BUTTON
Quickly control the fan and front LED strip's lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

ARGB SHOWROOM
Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.

Connectable Front I/O

Specifications
Technical Specifications
| Product Name | MAG FORGE M100R |
|---|---|
| Case Form Factor | Micro ATX Tower |
| Motherboard Form Factor Support | Micro-ATX / Mini-ITX |
| I/O Ports | 2x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-A1x Audio1x Mic |
| Drive Mount Support | 2x 2.5"1x 2.5" / 3.5"1x 3.5" |
| Expansion Slots | 4 |
| Maximum GPU Length | 300 mm / 11.81 inches |
| Maximum CPU Cooler Height | 160 mm / 6.3 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 300 mm / 11.81 inches (without 3.5" HDD tray installed) |
| Fan Size Support | Front: 3 x 120 mmTop: 2 x 120 mmRear:1 x 120 mm |
| Pre-installed Fan Size | Front: 3 x 120mmRear: 1 x 120mm |
| Pre-installed Fan Type | Front: 3 x ARGB FanRear: 1 x ARGB Fan |
| Radiator Size Support | Front: 120 / 240 mmTop: 120 / 240 mmRear: 120 mm |
| Dimensions (DxWxH) | 388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches |
| Net Weight | 4.14 kg / 9.13 lbs |
| Gross Weight | 5.03 kg / 11.09 lbs |
| Connection | Power ButtonReset ButtonMic in / Audio out2x USB 2.0 Type-A1x USB 3.2 Gen 1 Type-ALED Switch Button |
| Brand | MSI |
|---|---|
| Weight | 5.05 kg |
| Warranty |
|---|
