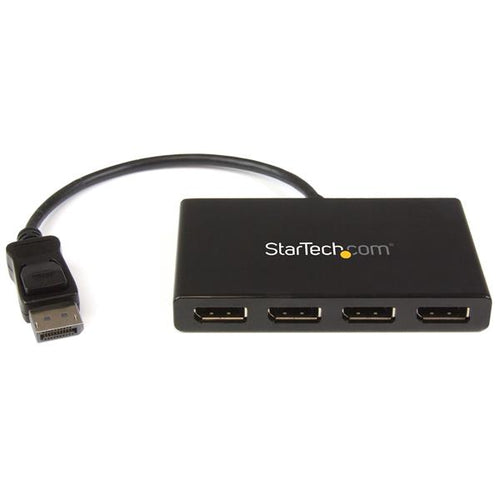

StarTech.com MSTDP124DP - MST Hub - DisplayPort to 4x DisplayPort
Features

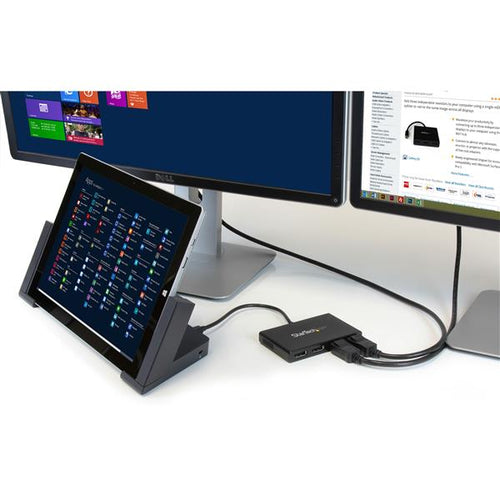

This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display

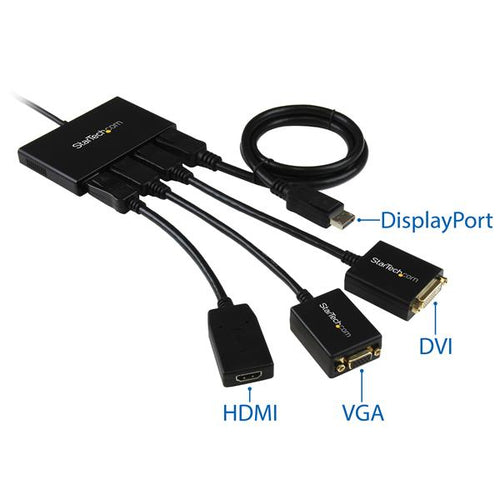

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment

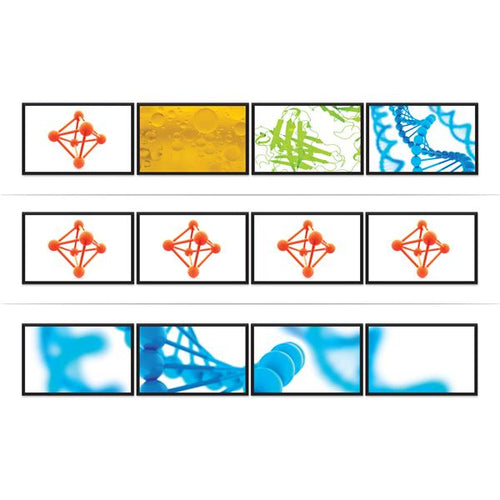

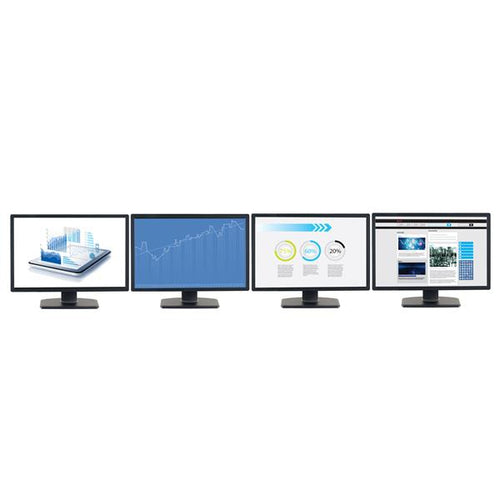

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources

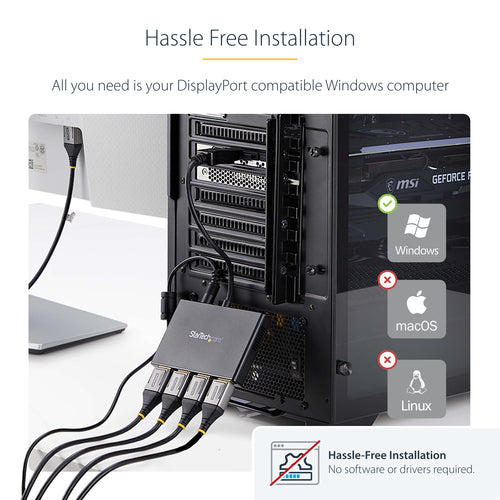

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging. Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply. The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Technical Specifications
| Audio | Yes |
|---|---|
| Chipset ID | STDP4320 |
| Converter Type | MST Hub |
| Output Signal | DisplayPort |
| Ports | 4 |

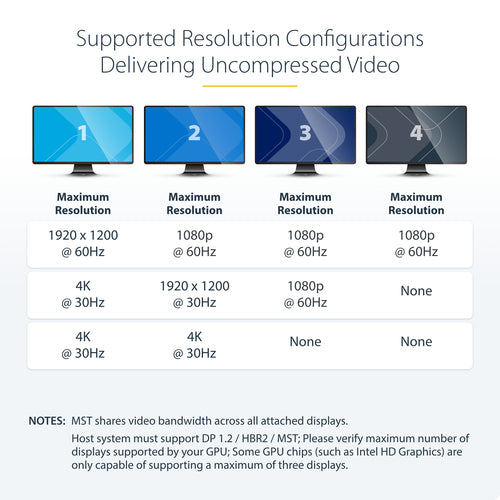

| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @30hz |
| Wide Screen Supported | Yes |

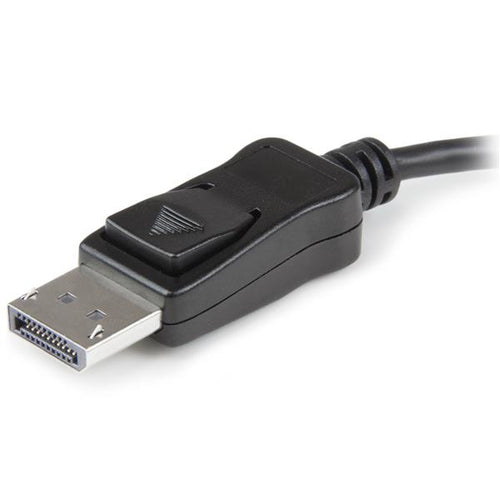

| Connector A | 1 - DisplayPort (20 pin) Male Input |

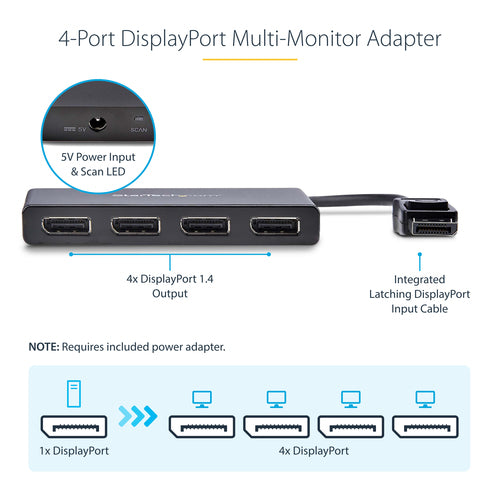

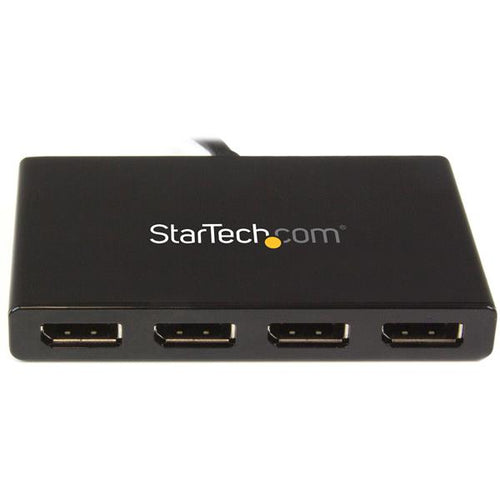

| Connector B | 4 - DisplayPort (20 pin) Female Output |
| OS Compatibility | Windows 10 (32/64)Windows 8/8.1 (32/64)Windows 7(32/64) |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |

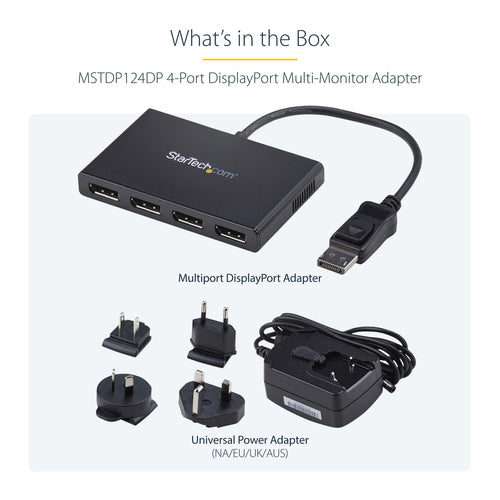

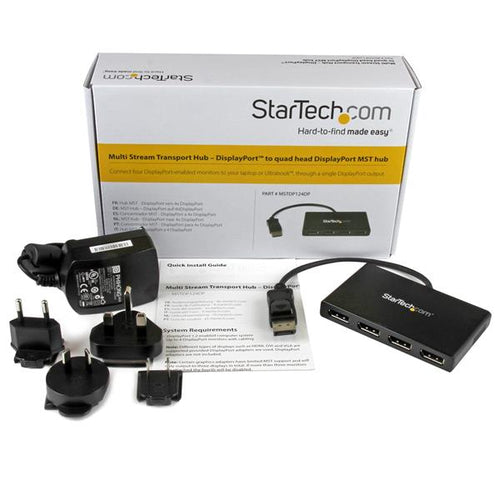

| Power Source | AC Adapter Included |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to |
| Brand | StarTech.com |
|---|---|
| Product Type | TV & Home Theatre > AV Splitters & Switches |
| Weight | 0.22 kg |
| Warranty |
|---|
