MVC S98-C5U-004
Features

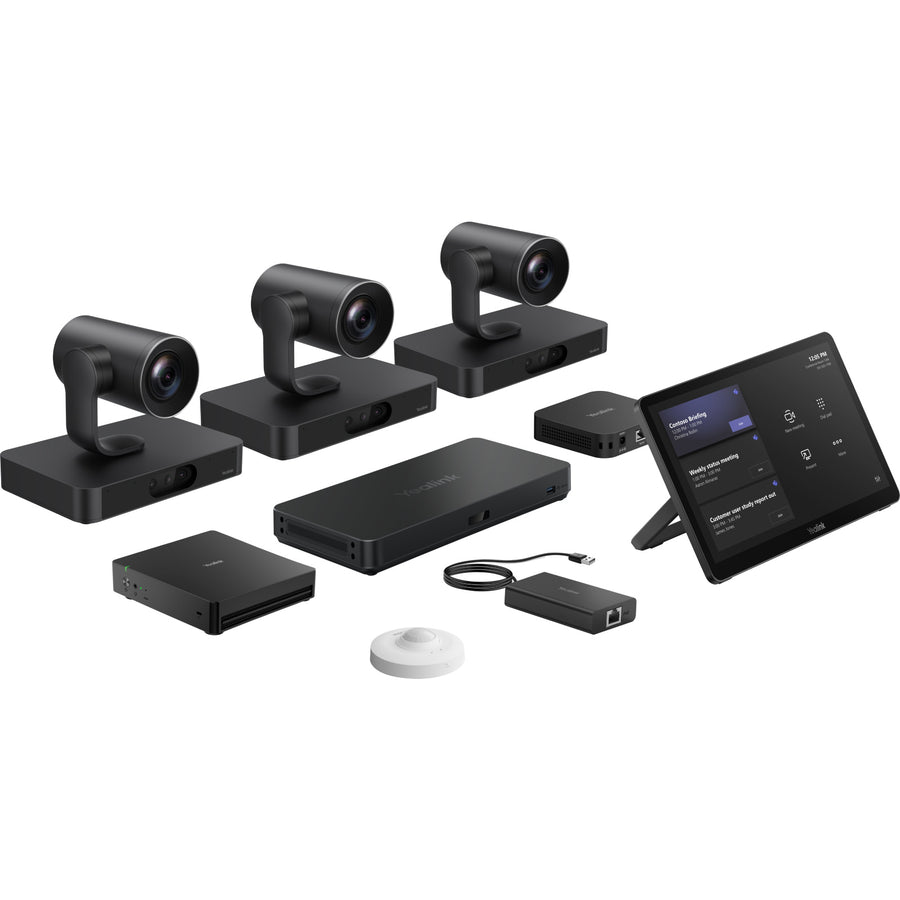

MVC S98 - Microsoft Teams Rooms System for ProAV Rooms
Designed for ProAV rooms, MVC S98 is a bundle solution with multiple SmartVision 80 cameras, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled four-lens camera system and future-proof computing power, supporting easy deployment & flexible design and seamless ProAV integration.
Multi-Camera Best View
Multiple SmartVision 80 cameras work together as a system to cover large rooms, ensuring everyone is clearly seen from the best possible angle.
Multi-Camera IntelliFocus
The IntelliFocus feature smoothly displays real-time close-ups of the recent speakers, enhancing major focus on active speakers and face-to-face experience.
Multi-Stream IntelliFrame
Each participant has their own video stream and name tag, clearly and equally visible in Teams. Every speaker is presented front and centered.
Presenter Tracking
Presenter Tracking delivers smooth, lossless tracking with up to 20x optical zoom, maintaining crystal-clear image quality even at distances of up to 20 meters.
Future-Ready AI Power
Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module, CEC support, and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control.
With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.
Control Freely
The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.
Designed for ProAV Rooms
Flexible Audio Solutions
MVC S98 can be seamlessly integrated with Yealink pro audio solutions. Choose from a range of voice pickup devices, such as CM50 ceiling microphone, CS10-D ceiling loudspeaker, and AP08 digital signal processor to meet your specific audio needs.
Specifications
Technical Specifications
| Package Content | MCore 4MTouch PlusRoomSensorSmartVision 80 x 3AVHubRCH40 E2BYOD-Extender |
|---|---|
| Preload | Windows 11 IoT Enterprise X64Windows 11 IoT Enterprise LicenseMicrosoft Teams Rooms AppYealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | Processor: Intel Ultra5 125HMemory: 16GB(2*8GB) DDR5Storage: 256GB SSDBIOS feature:3x HDMI video output-CEC-EDIDTPM2.0Kernel DMAInterfaces:1 x HDMI-Out 2.1 port2 x HDMI-Out 2.0 port1 x HDMI-In port4 x USB3.0 Type-A Port1 x MTouch Port (RJ-45)1 x LAN port for AV network1 x 10/100/1000 Gigabit Ethernet Port1 x Power Supply Port1 x 3.5mm headphone Port1 x Reset port1 x Security SlotWiFi: IEEE 802.11 a/b/g/n/ac/axBluetooth: BT 5.2 |
| MTouch Plus | Physical Features:11.6-inch narrow bezel IPS displayAngle between screen and desktop (30° ~ 70°)Adjustable angle of support frame (50° ~ 180°)Function Features:1920 x 1080 video resolutionSupport wired and wireless (with WPP30) content sharingSupport external PD power supply to power the sharing deviceSupport HDMI/USB-C video inputSupport desktop placement, desktop fixed, wall-mounted deployment |
| RoomSensor | Detection angle: 120°Adjustable detection angle: ±20°Operating temperature: 0-40?Operating humidity: 10-95% |
| SmartVision 80 | Camera:PTZ Camera: 20×optical zoom69° DFOV, 61.5° HFOV, 36° VFOV(PTZ Camera)110° DFOV, 98° HFOV, 82° VFOV(Panoramic Camera)51° DFOV, 41.6° HFOV, 32° VFOV(Telephoto Camera)AI Feature:IntelliFrameParticipant IdentificationIntelliFocusSpeaker TrackingPresenter TrackingVideo FencePIPAuto FramingInterfaces:1×USB 3.0 Type-B port1×USB 2.0 Type-A port2×VCH port(RJ45)1×Network Port (RJ45)1×HDMI out port1×Line in port1×Line out port1×Reset Button1×DC Power Port |
| AVHub,audio and video processor | Interfaces2 x USB-A port1 x USB-B port1 x Codec port7 x Yealink VCH port(RJ-45)1 x RCA in/out interface1 x 6.3mm Line in interface1 x 6.3mm Line out interface1 x power interfaceFunction Features:Dividable and merging meeting rooms are supportedSupport intelligent multi-speaker tracking |
| RCH40 E2 | Interface&LED:4 x 10/100/1000Mbps Port1 x LED indicates Power state1 x LED indicates PoE BudgetPhysical Feature:Multiple deployment method90w total PoE Budget(30w per port)Support standard PoE Supply(802.3af)Power adapter: PSE 48V 2ADimension(WDH):100mm x 100mm x 23mmOperating Humidity: 5%-90% |
| BYOD-Extender | Interfaces:1.5m USB2.0 Type-A cable1 x VCH port (RJ45)Physical Feature:Operating humidity: 10~95%Operating temperature: 0~40?Dimension:89mm x 48mm x 17mm |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 11.156 kg |
