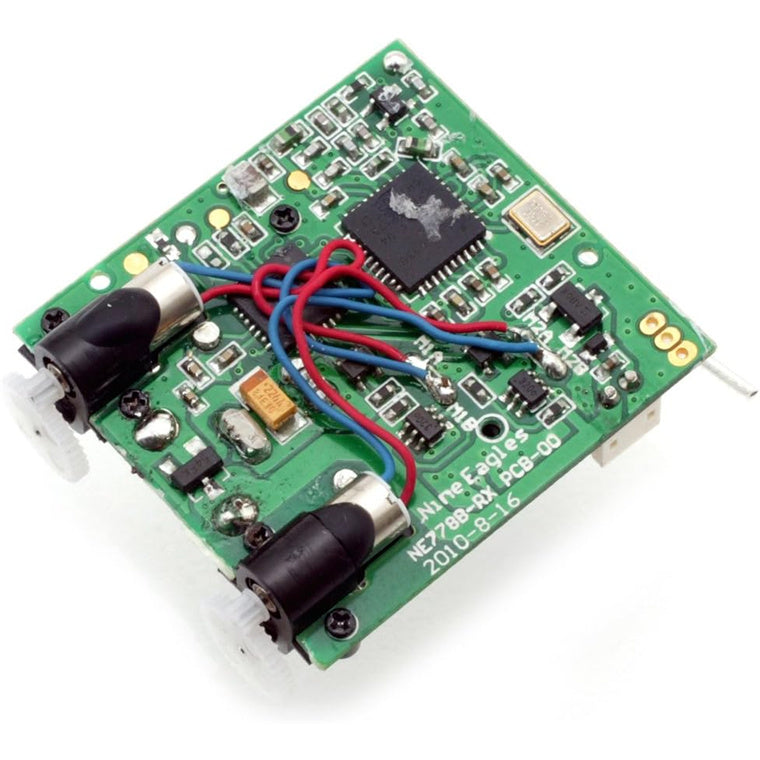

NE407639001A - NINE EAGLES  SKY 500 RECEIVER

The Nine Eagles NE407639001A is a combined receiver, ESC, servo controller, and mixer unit designed for the Nine Eagles SKY 500 RC aircraft. It serves as the central electronic control module inside the plane, linking the radio receiver with the motor speed controller (ESC) and servos that operate the control surfaces. In essence, it's the "brain" that interprets your radio transmitter's signals and drives the appropriate components of the model.

Receiver Functionality - Radio Control Link

This NE407639001A module includes a 2.4 GHz radio receiver designed to bind with the SKY 500's compatible transmitter. The 2.4 GHz frequency is standard for modern RC aircraft and provides reliable, interference‑resistant communication between the transmitter and the plane during flight. This allows the pilot to control throttle, rudder, elevator, and other functions effectively.

ESC Integration - Motor Speed Control

One of the key roles of this unit is acting as the Electronic Speed Controller (ESC) for the model's electric motor. The ESC component regulates motor power based on throttle input from the pilot's transmitter. Because it's integrated into this single board with the receiver and servos, it simplifies wiring and reduces the need for separate modules inside the airframe.

Servo & Mixer Support - Control Surface Management

Beyond just receiving radio signals, this module includes servo outputs and mixing functions. The mixer logic is important especially in multi‑control‑surface models like the SKY 500, where coordinated movement of elevator, rudder, and potentially ailerons is required to achieve smooth flight. With the mixer built in, this unit directs the correct mix of servo movements.
