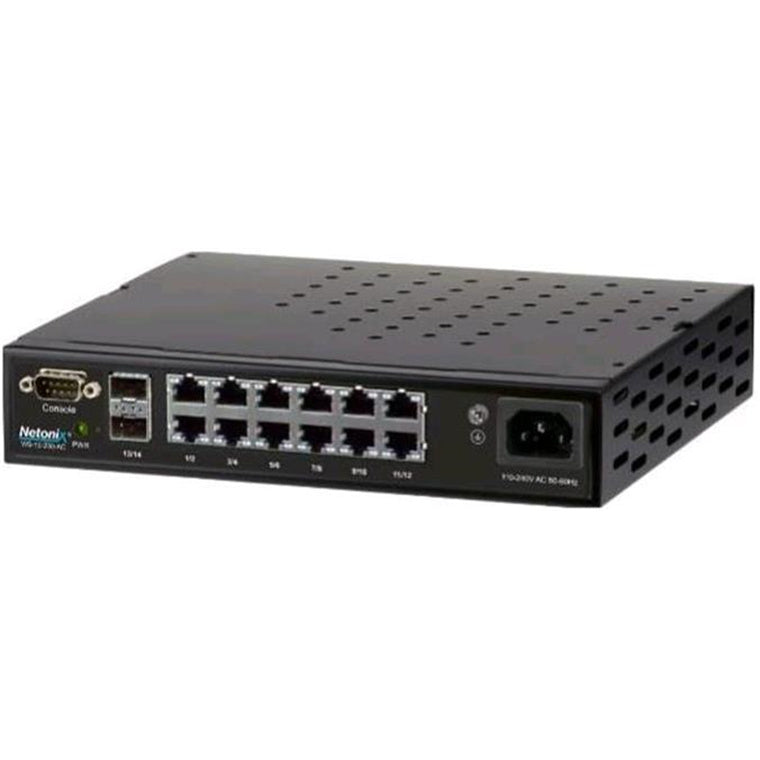

Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch
Features
The Netonix WISP Switch model WS-12-250-AC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).
- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
- The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- The only switch line on the market that has current sensors on all passive POE ports
Specifications
Technical Specifications
| Power Input | 210-230 VAC |
|---|---|
| Max. Power Consumption | 250 Watts |
| Operating Temperature | -25 to 55°C |
| 24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) | 01-12 |
| 48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) | 01-12 |
| 24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) | 01-04 |
| 48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) | 01-04 |
| Ethernet Ports | (12) Gbps POE Ports, (2) SFP Uplink Ports |
| Dimensions | 223 mm x 181 mm x 44 mm |
| Brand | Netonix |
|---|---|
| Product Type | Networking |
