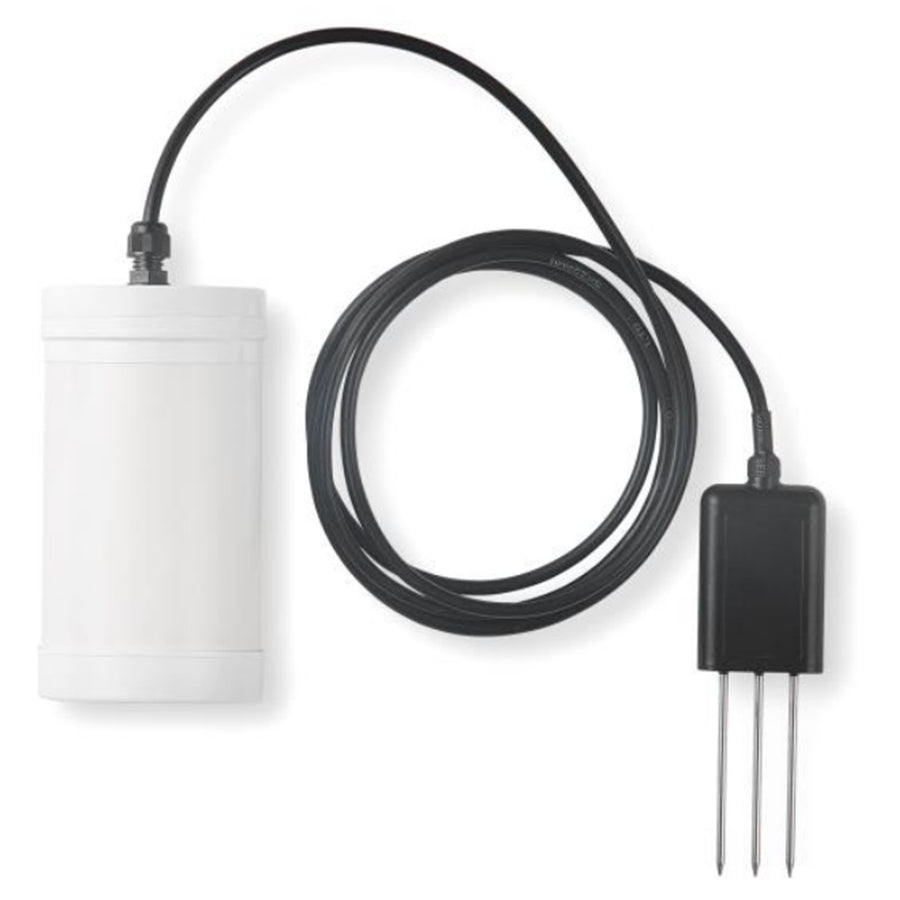

Netvox R718PB15A
Netvox R718PB15A
Netvox

Netvox Wireless Soil Moisture / Temperature / Electrical Conductivity Sensor with a Waterproof Housing

SKU: R718PB15A ● In Stock
$591.23
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Netvox Wireless Soil Moisture / Temperature / Electrical Conductivity Sensor with a Waterproof Housing

Specifications

Technical Specifications

Power Supply 2 ER14505 lithium batteries (3.6 V, 2400mAh / section) in parallel
Battery Life 2.7 years (condition: ambient temperature 25 ° C, 60 min report once, TX power = 20 dBm, LoRa spreading factor SF = 10)
Standby Current 20 uA
Wakeup Current Wakeup current range 0.8mA-20 mA * When not transmitting /receiving LoRa data
Battery Measurement Accuracy ± 0.1V
Wake-up Current 0.8mA - 8mA/ 3.3V
RF Receiving Current 11mA/ 3.3V
RF Transmitting Current 120mA/ 3.3V * Specific electrical characteristics will vary depending on the power supply voltage.
Frequency Range 863MHz-928MHz 470MHz-510MHz
TX Power US915 20dbm AS923 16dbm AU915 20dbm CN470 19.15dbm EU868 16dbm KR920 14dbm IN865 20dbm
Receiving Sensitivity -136 dBm (LoRa, Spreading Factor=12, Bit Rate = 293bps) -121 dBm (FSK, Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Built-in antenna
Communication Distance Up to 10 km (visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate 0.3 kbps to 50 kbps (LoRaWAN) 1.2 kbps to 300 kbps (FSK)
Modulation System Mode LoRa/ FSK (Note: choose one of them)
Supportable LoRaWAN Band EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510, IN865 (Note: The frequency band is optional and needs to be configured shipment)
Operation Current 6mA/ 5VDC
Soil Temperature Resolution 0.1 ° C
Soil Temperature Measurement Accuracy ± 0.5°C
Soil Temperature Range -40 ~ 80°C
Soil Moisture Resolution 0.03% within 0-50% 1% within 50-100%
Soil Moisture Accuracy ± 2% within 0-50% ± 3% within 50-100%
Soil Moisture Range 0-100%
Sensor Detection Range The detecting radius of the sensor is about 7 cm, meaning that the percentage of soil moisture will vary significantly when there is water permeability within a radius of 7 cm.
Electrical Conductivity Resolution 0.1 ds/m
Electrical Conductivity Accuracy In the range of 0-10 ds/m: ±0.3 ds/m In the range of 10-20 ds/m: ±1 ds/m
Electrical Conductivity Range 0-20 ds/m
Main Unit Dimension L: 112 mm*W: 65 mm*H: 32 mm
Cylinder Dimension ?80mm, length 134mm
Main Unit Weight About 160g (excluding shell cylinder)
Ambient Temperature Range -20°C ~ 55°C
Ambient Humidity Range <90% RH (No condensation)
Storage Temperature Range -40 °C ~ 85 °
Warranty 12 months
