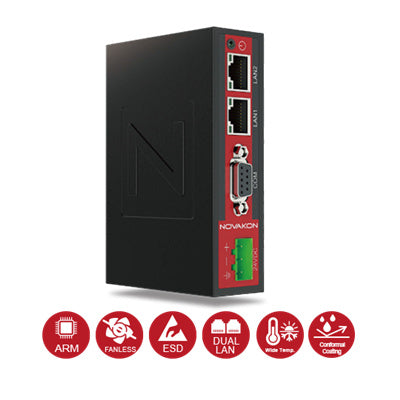

Novakon Protocol gateway DIN-rail Protocol Conversion Gateway ARM Cortex-A8 (1GHz) CPU, 512MB RAM, 4GB eMMC, dual Ethernet ports, 19.2 ~ 28.8V isolated power, metal chassis, iM-Connect Protocol Conversion Software Runtime
$180.46
$925.40
Free shipping over $299
Genuine product
7-day returns
Features
- TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU
- Ethernet ports x 2 ; Serial port x 2 (DB9 x 1)
- 19.2 ~ 28.8V, Isolated Power
- Isolated Communication Port
- Fan-less, compact design
- PCB conformal coating protection
- -20°C~70°C wide operating temperature
- Metal chassis, DIN-rail mounting
- Powered by Novakon Software iM-Connect®
Specifications
Technical Specifications
| Processor | TI SitaraTM AM3352 ARM® CortexTM-A8 1GHz CPU |
|---|---|
| Memory | 512MB SDRAM (1GB option) |
| Thermal Design | Fanless |
| PCB Conformal Coating | Yes |
| Storage | 4GB eMMC (8GB option) |
| USB Host | 1 |
| RS-232/422/485 | RS-232 x 1, RS-422/485 x 1 (DB9 x 1) |
| LAN | 2 x 10/100 Mbit Ethernet Port |
| Power Connector | 3-Pin terminal block |
| Dimensions (mm) | 120 x 85.45 x 31.25 |
| Net Weight (kgs) | 0.45 |
| Power Input Range | 19.2 ~ 28.8V, Isolated Power |
| LED Indicator | 1 |
| Chassis Material | SECC |
| Mounting | 25mm DIN-rail mounting |
| Accessories | Setup Manual x 1, 25mm DIN Rail Clip x 1, M3x6mm flat head screw x 2, Recovery USB Drive x 1 |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -20°C~80°C |
| Storage Humidity | 10%~90% @40°C (non-condensing) |
| ESD Protection | Contact Discharge 4kV, Air Discharge 8kV |
| Certification | CE/FCC (EN 61000-6-4, EN 61000-6-2, EN55032, EN55035), Class A |
| Built-in Software | iMConnect® Protocol Conversion Software Runtime |
| Operating Systems | Linux Kernel 3.14 |
| Brand | Novakon |
|---|---|
| Product Type | Computers & Tablets |
