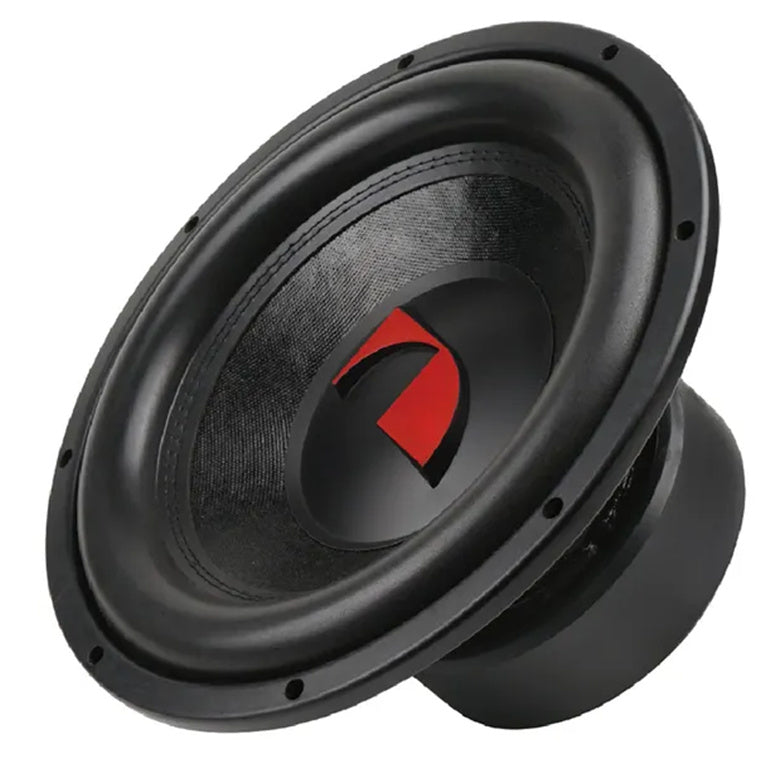

NSW-Z1206D2 - NAKAMICHI 12" DVC SUBWOOFER 2000W - DUAL 2 OHM - 600W RMS
$142.87
Free shipping over $299
Genuine product
7-day returns
NSW-Z1206D2 - NAKAMICHI 12" DVC SUBWOOFER 2000W - DUAL 2 OHM - 600W RMS
Features
Nakamichi 12" DVC Subwoofer 2000W
Specifications
Technical Specifications
| Nominal Diameter | 12" (310mm) |
|---|---|
| Nominal Impedance | 2+2 ohms |
| PMS Power | 600W |
| Peak Power | 2000W |
| Depth | 150mm |
| Sensitivity | 85.4±3dB |
| Frequency Range | 45-1.3kHz |
| Voice Coil Diameter | ASV 60mm |
| Voice Coil Length | 40mm |
| Air Gap Height | 8mm |
| Resonant Frequency, Fs | 30.3±3Hz |
| D.C Voice Coil Resistance, Re | 2 ohm |
| Mechanical Quality Factor, Qms | 3.26 |
| Electrical Quality Factor, Qes | 0.78 |
| Total Quality Factor, Qts | 0.63 |
| Equivalent Air Volume to Cms, Vas | 63 MPL |
| Mechanical Compliance, Cms | 176 M/N |
| BL Factor, BL | 8.6 N/A |
| Effective Surface Area, Sd | 50.2mm |
| Linear Excursion, Xmax | 16mm |
| Basket | Die Cast Iron |
| Cone | Paper |
| Dust Cap | Paper |
| Surround | Treated Foam |
| Voice Coil Wire | EISV |
| Voice Coil Bobbin | BASV |
| Magnet Mass | 160X20 |
| Magnet Material | Ferrite |
