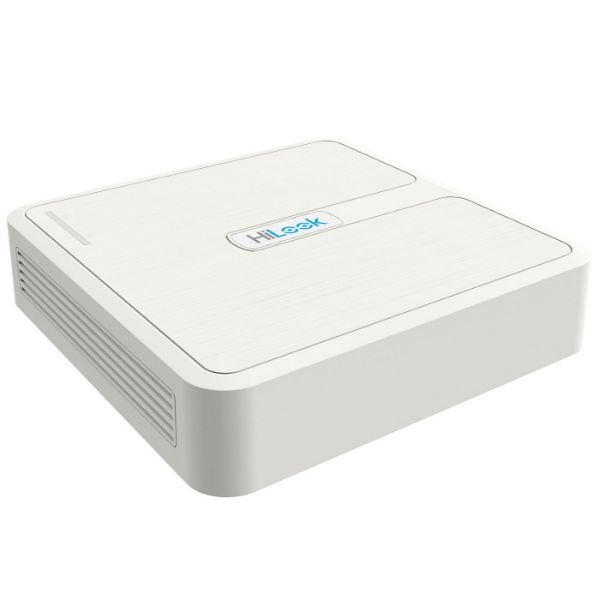

HiLook NVR-104H-D-4P - 4-Channel 1U 4 PoE NVR w/ Up to 6MP Resolution. Supports H.265/+ H.264/+ 36W
Features
Every angle all on one screen.
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle ‡ .
Dedicated 4 PoE+ ports (53 W budget) for simplified IP camera deployment § .
Features 4× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing footage is faster than ever.
4-Channel Simultaneous Playback ?
Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility ? .
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
Security for every hour and every day.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Keep an eye on things even when you are on the move.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Greet your visitors before they enter.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
Specifications
Technical Specifications
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
|---|---|
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Package Contents | VIGI Network Video RecorderPower AdapterHDD ScrewsMouseQuick Installation Guide |
| Operating Temperature | -10-55 °C |
| Dimensions( H X W X D ) | 200.3 × 200.3 × 43 mm |
| External Power Supply | 53.5V DC/1.31A |
| Power Consumption | 4.82 W (without disk) |
| Video Input | 4-Channel IP Video Input, up to 8MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,1280x720/60Hz |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Brand | HiLook |
|---|---|
| Product Type | Smart Home & Security > Video Recorders |
| Weight | 4.535 kg |
| Warranty |
|---|
