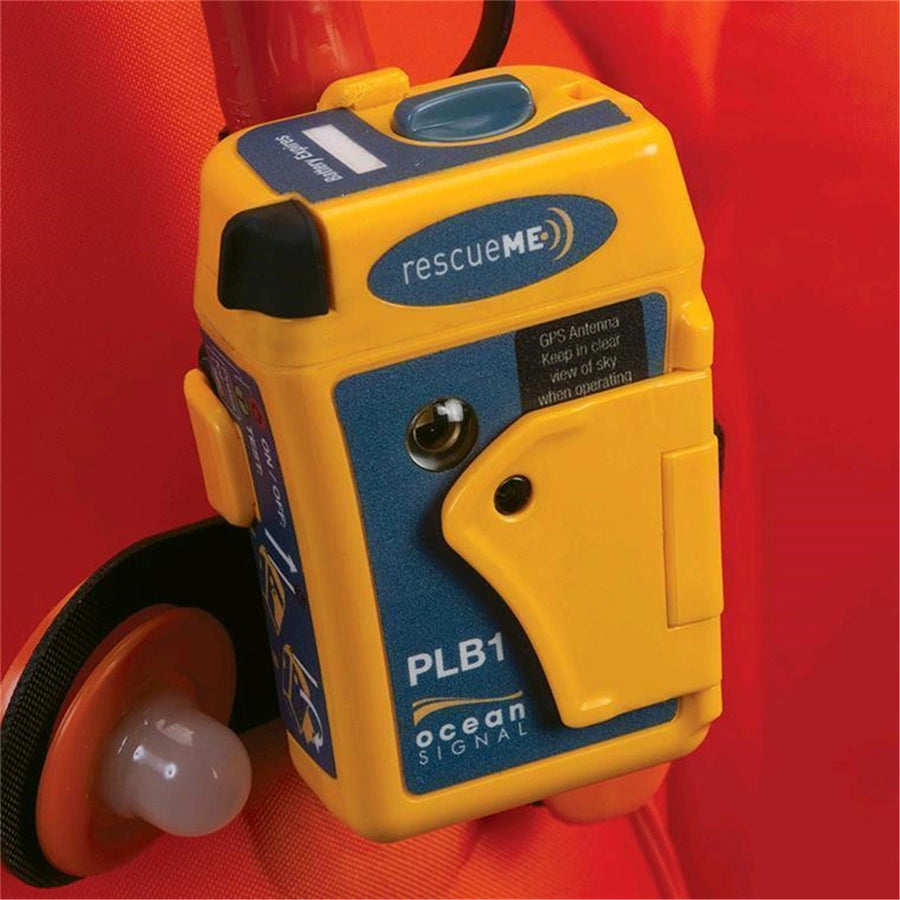

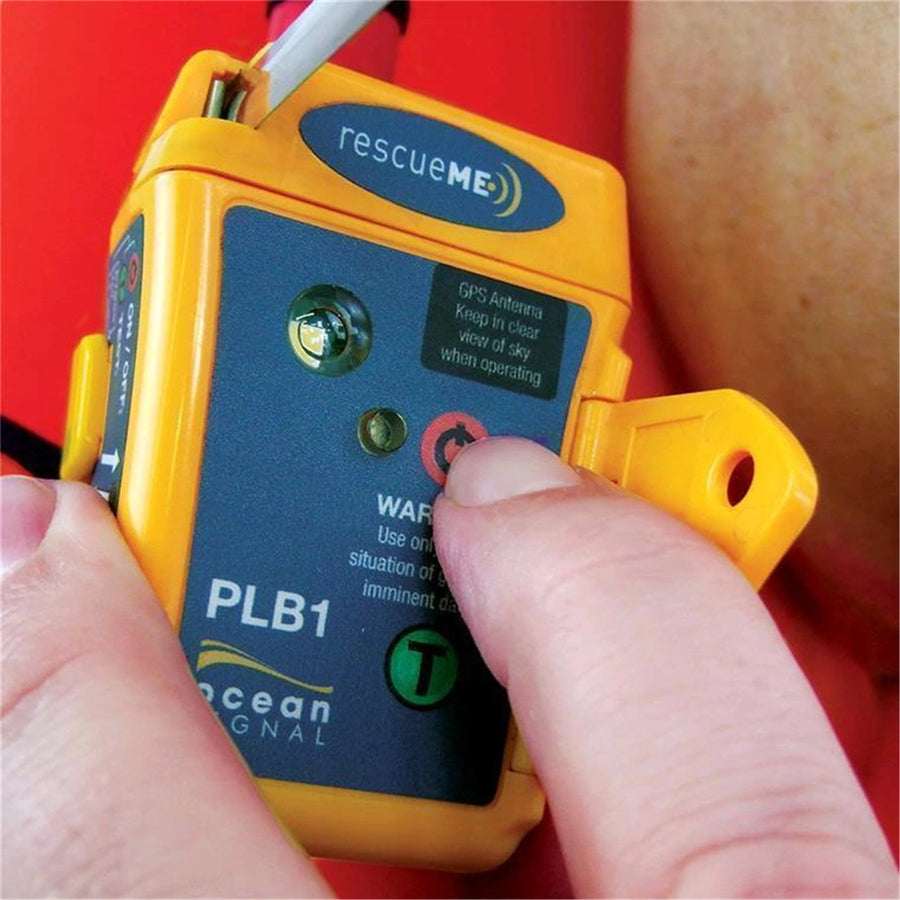

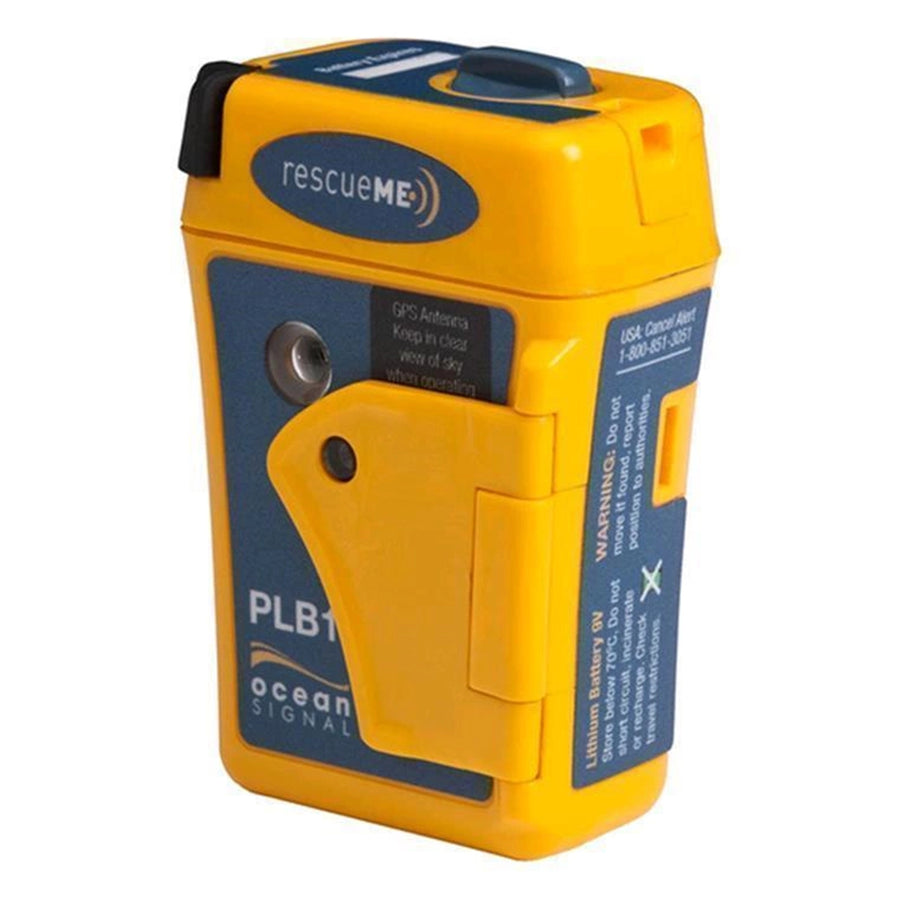

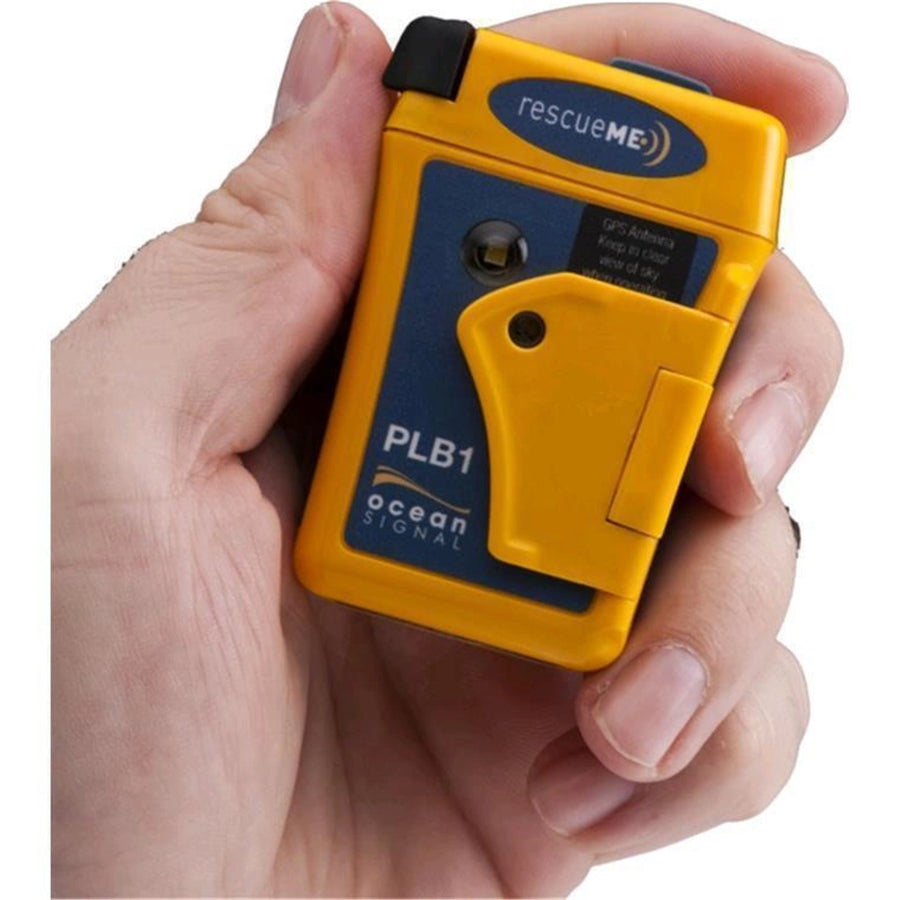

Ocean Signal 730S-04077 RescueMe PLB1 (Personal Locator Beacon) w/a floatation pouch & 66 channel GPS receiver & 7 Year Battery Life New Zealand and Pacific Island coded

SKU: 730S-04077 ● In Stock
$659.79 $718.49
Free shipping over $299 Genuine product 7-day returns

Features



The rescueME PLB1 works with the only officially recognized worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat).

As this is funded by governments there are NO CHARGES to use this service. When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to you are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.

Their is an option to purchase the rescueME PLB1 with a flotation pouch included (730S-04077). Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self-locking knots.

- 30% smaller (typ) by volume
- Easily fits in a lifejacket
- Retractable Antenna
- 7 Year Battery Life
- 24+ hour operational life
- High brightness strobe light >1candela
- 66 channel GPS receiver
- Unique mounting clip
- Operates on the global Cospas Sarsat rescue system
- Free to use, no subscription charges

Specifications

Technical Specifications

Frequency 406.040MHz
Tolerance ±1kHz
Output Power 5watts (nominal)
Stability 2ppb/100ms
Modulation Phase ±1.1radians (peak)
Emission Designator 16K0G1D
Encoding Bi-phase L
Data Rate 400bps
Frequency 121.5MHz
Stability ±50ppm
Output Power 25-100mW PERP
Modulation Swept Tone AM
Emission Designator 3K20A3X
Modulation Depth 85-100%
Sweep Range 400Hz - 1300Hz
Light Type High intensity LED
Output Power ~1candela
Sensitivity Cold Start -148dBm
Sensitivity Re-acquisition -163dBm
Satellites channels tracked 60
GPS Antenna Microstrip patch
Type Lithium Primary
Chemistry Manganese Dioxide (LiMnO2)
Operational Life >24hours @ -20°C
Operating Temperature Range -20°C to +55°C
Storage Temperature Range -30°C to +70°C
Waterproof 15metres at +20°C
Drop 1metre @ -30°C
Height 77mm (3.0")
Width 51mm (2.1")
Depth 32.5mm (1.3")
Weight 116g
Cospas-Sarsat T.001 / T.007
ETSI EN302 152
RTCM SC11020
FCC CFR47 part 95K
