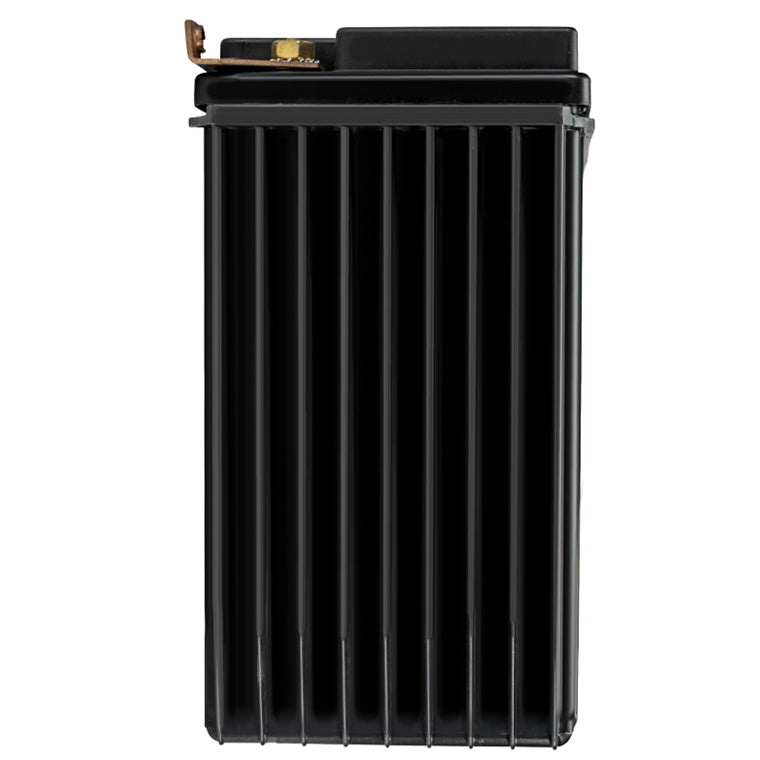

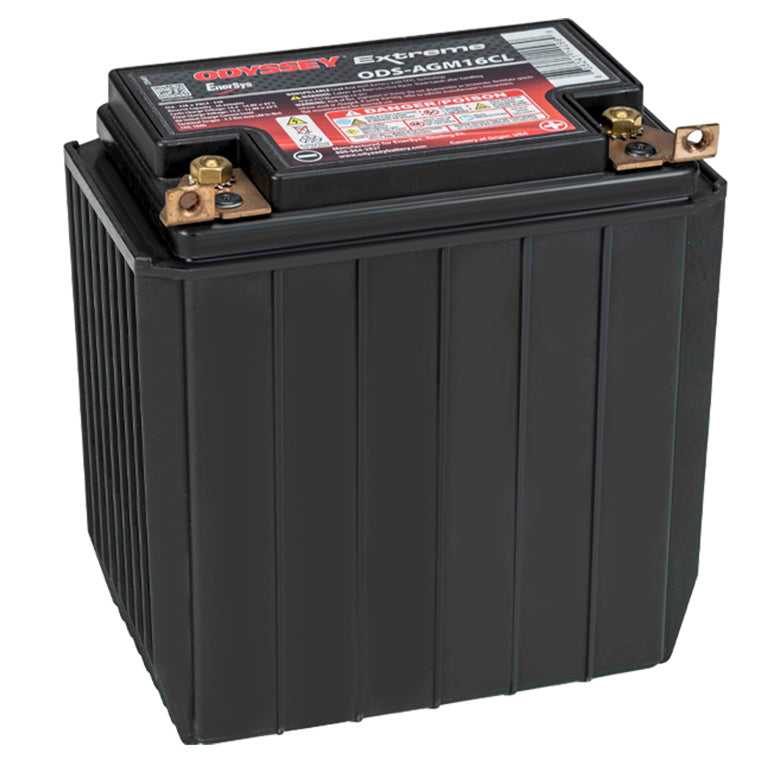

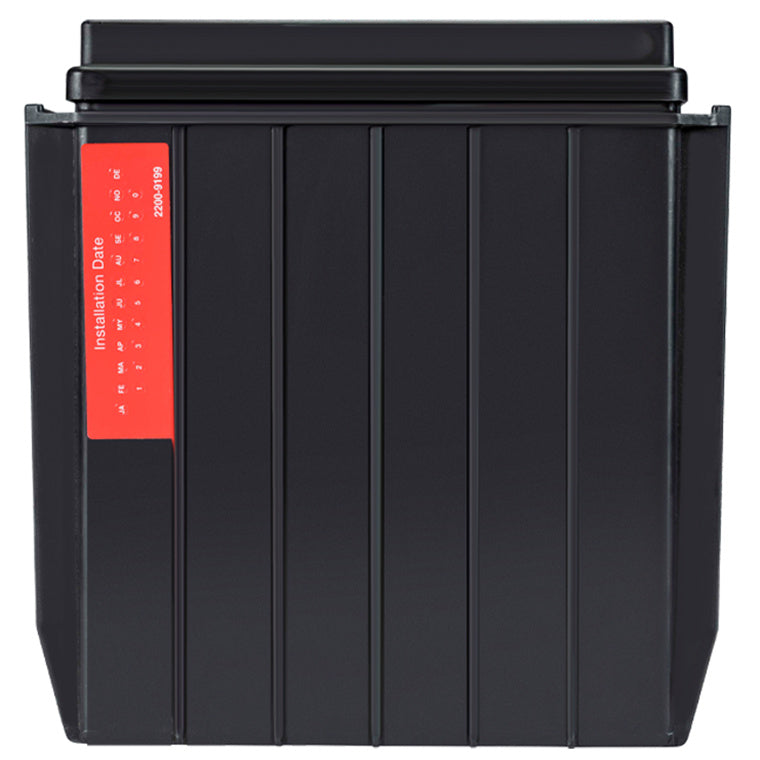

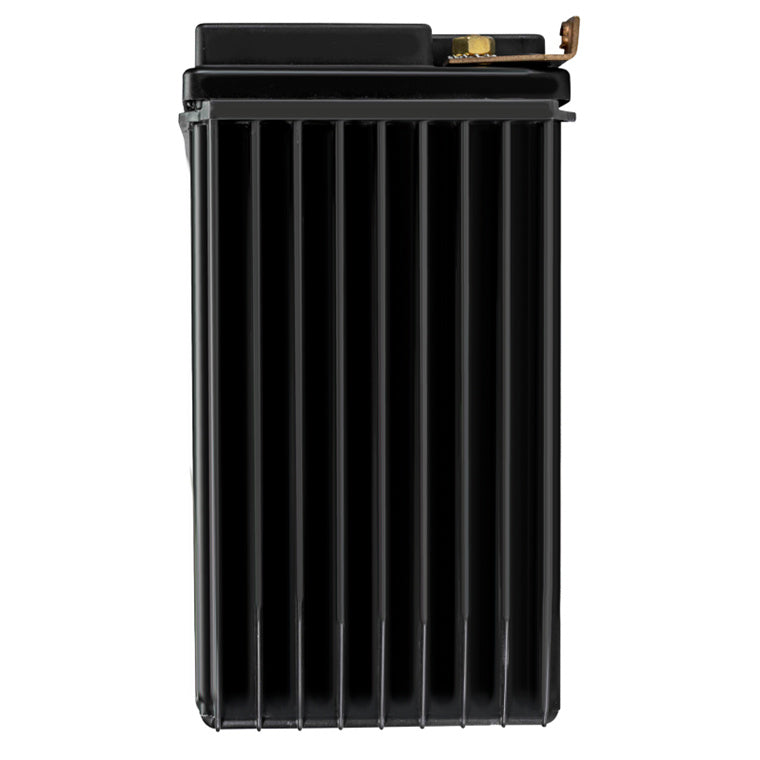

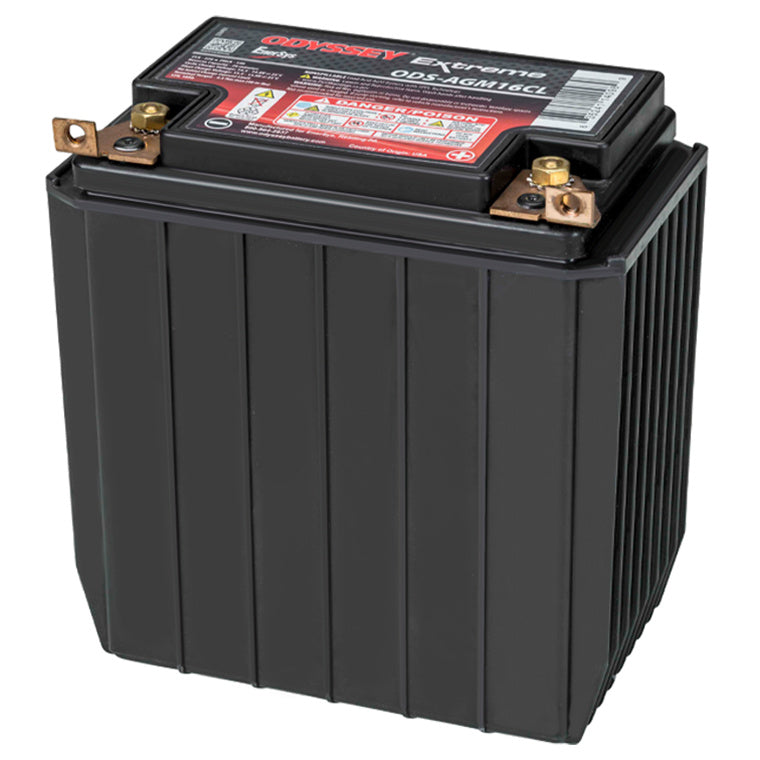

Odyssey PC625 12v 265ccA AGM Battery
Features
The Odyssey PC625 is part of the Odyssey Extreme Series AGM battery line, designed to deliver powerful and reliable energy for a wide range of vehicles and power systems. It uses absorbed glass mat (AGM) technology with pure lead plates, resulting in a sealed, non‑spillable design that resists shock, vibration and corrosion while offering enhanced performance compared to conventional batteries.
Exceptional Starting and Reserve Power
Built for impressive cranking performance, the PC625 delivers strong pulse and cold crank amps, making it ideal for applications where reliable engine starts are critical. Its design provides substantial reserve capacity to handle accessory loads and brief deep discharges without compromising overall performance.
Dual‑Purpose Capability
Unlike standard starter batteries, this Odyssey battery offers both starting power and cycling ability, meaning it can support engine ignition and power electrical accessories or onboard systems reliably. The advanced TPPL (Thin Plate Pure Lead) plates allow faster recharge and greater usable power, making the PC625 suitable for motorcycles, race cars, powersport machines, marine craft and other demanding applications.
Robust Durability and Long Service Life
Designed to last, the PC625 offers an 8‑12‑year design life under typical use, significantly outperforming many conventional batteries. Its rugged construction and robust internal connections ensure enhanced resistance to vibration, heat and environmental stressors, which contributes to a longer life span and dependable service even in challenging conditions.
Compact Size with High Power Output
Despite its relatively compact physical footprint, the PC625 packs considerable power. With a nominal capacity around 18 Ah, low internal resistance and strong cranking metrics, this battery strikes a balance between size, weight and capability. It can be installed in various orientations (upright or horizontal) to suit vehicle space constraints, adding to its flexible usability.
Marine, Motorsports and Powersport Ready
Whether you're powering a lightweight race car, a watersports craft or a high‑performance motorcycle, the Odyssey PC625 is up to the task. Its sealed AGM build and strong power delivery make it especially well‑suited to environments with high vibration, moisture exposure or intermittent use, making it a solid choice for racing, recreation and recreational marine duty.
Specifications
Technical Specifications
| Battery Type | AGM (Absorbed Glass Mat) |
|---|---|
| Voltage | 12 V nominal |
| Pulse Hot Cranking Amps (PHCA) | 540 A |
| Cold Cranking Amps (CCA) | 220 A |
| Hot Cranking Amps (HCA) | 400 A |
| Marine Cranking Amps (MCA) | 330 A |
| Nominal Capacity (20 Hr Rate) | 18 Ah |
| Nominal Capacity (10 Hr Rate) | 17 Ah |
| Reserve Capacity | 26 min |
| Internal Resistance | 7 mohm |
| Short Circuit Current | 1800 A |
| Terminal Type | Brass M6 receptacle |
| Operating Temp. Range | −40 °C to +45 °C |
| Weight | 6 kg (13.2 lbs) |
| Length | 170 mm (6.7 in) |
| Width | 99 mm (3.9 in) |
| Height (terminals incl.) | 178 mm (7 in) |
| Design Life | 8-10 years typical |
| Brand | Odyssey |
|---|---|
| Product Type | Power & Lighting |
