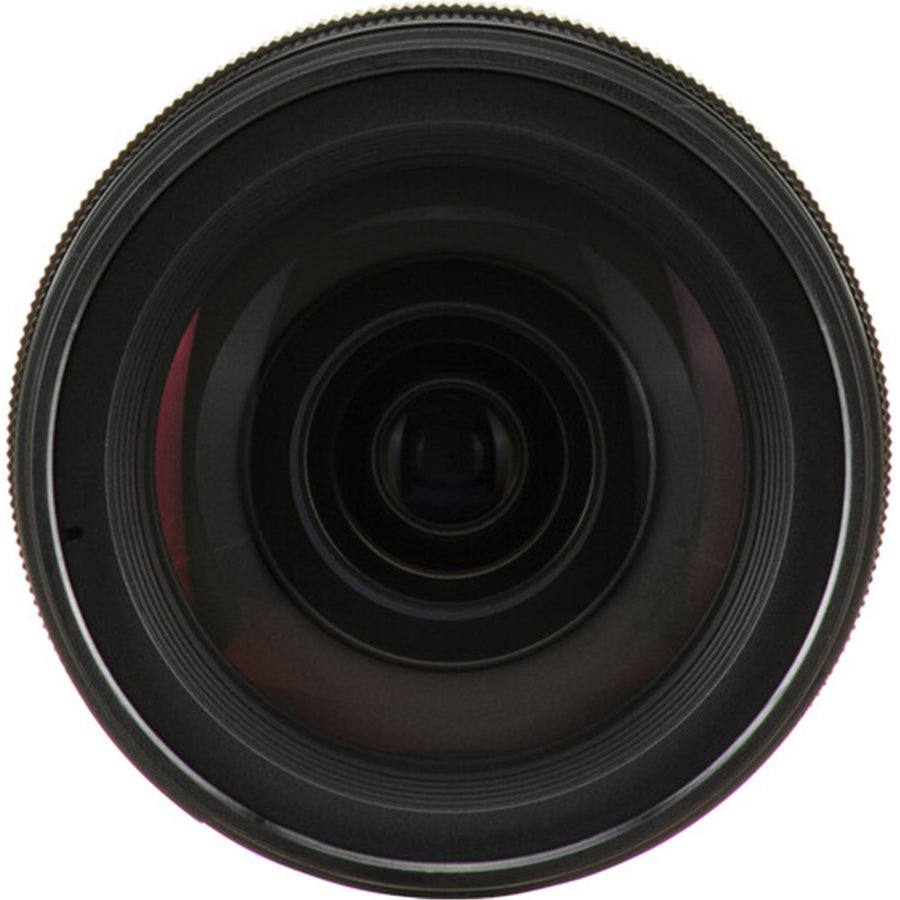

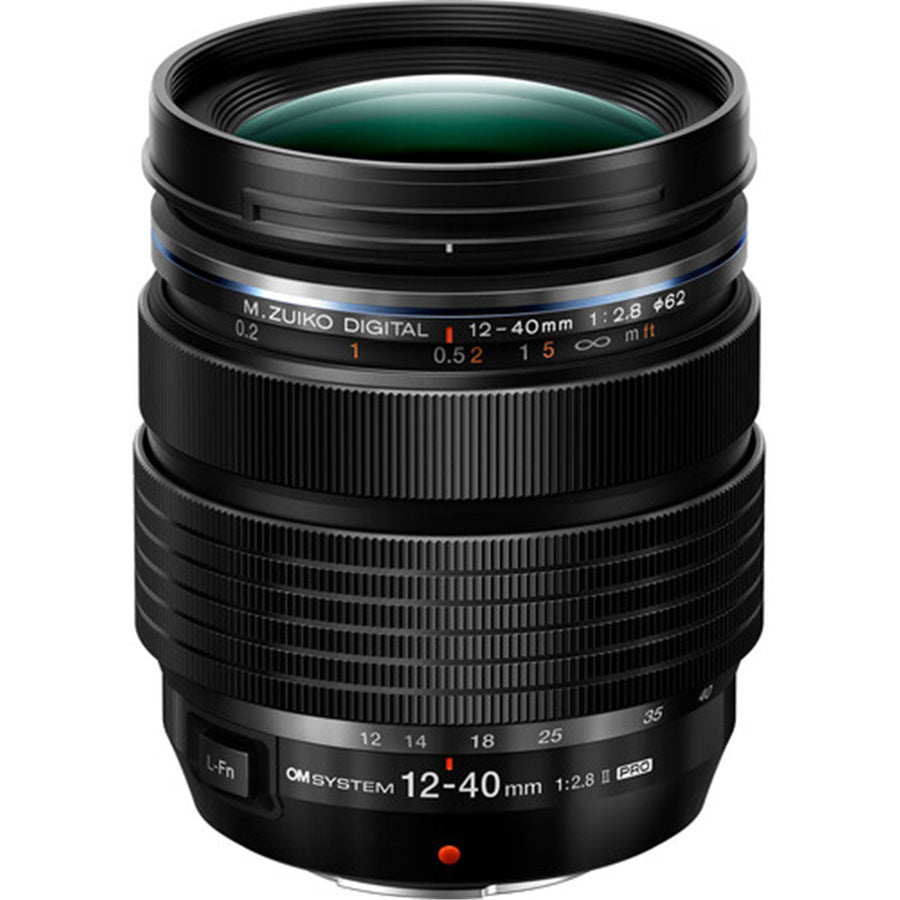

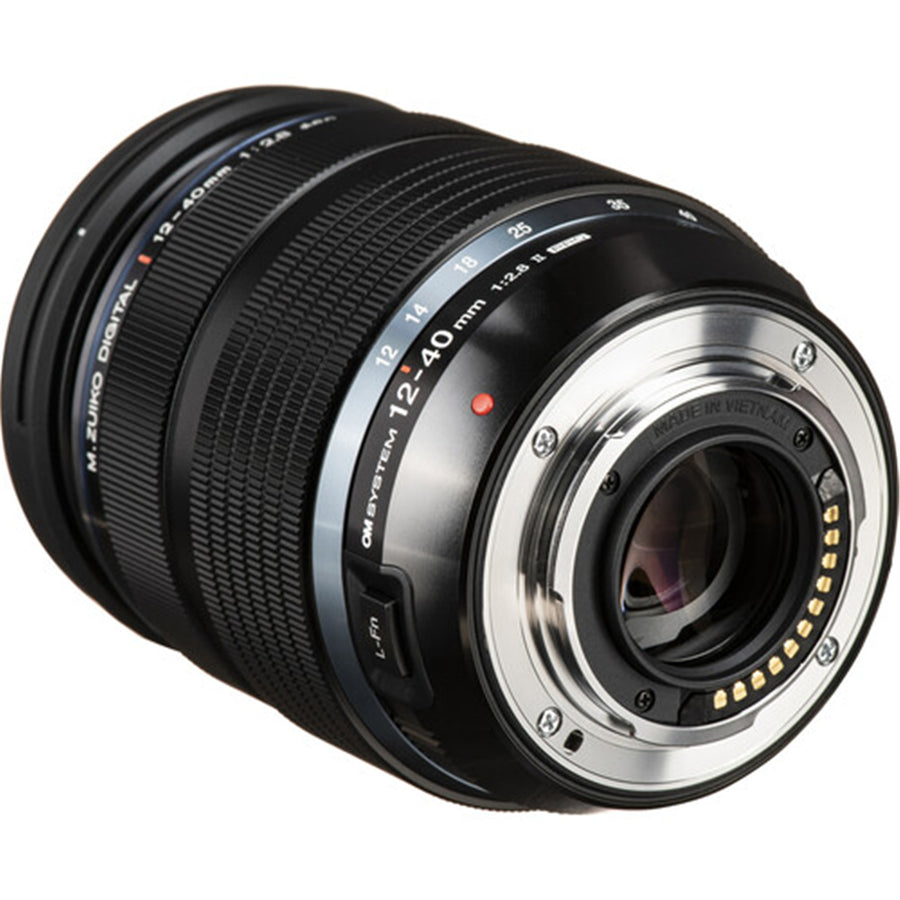

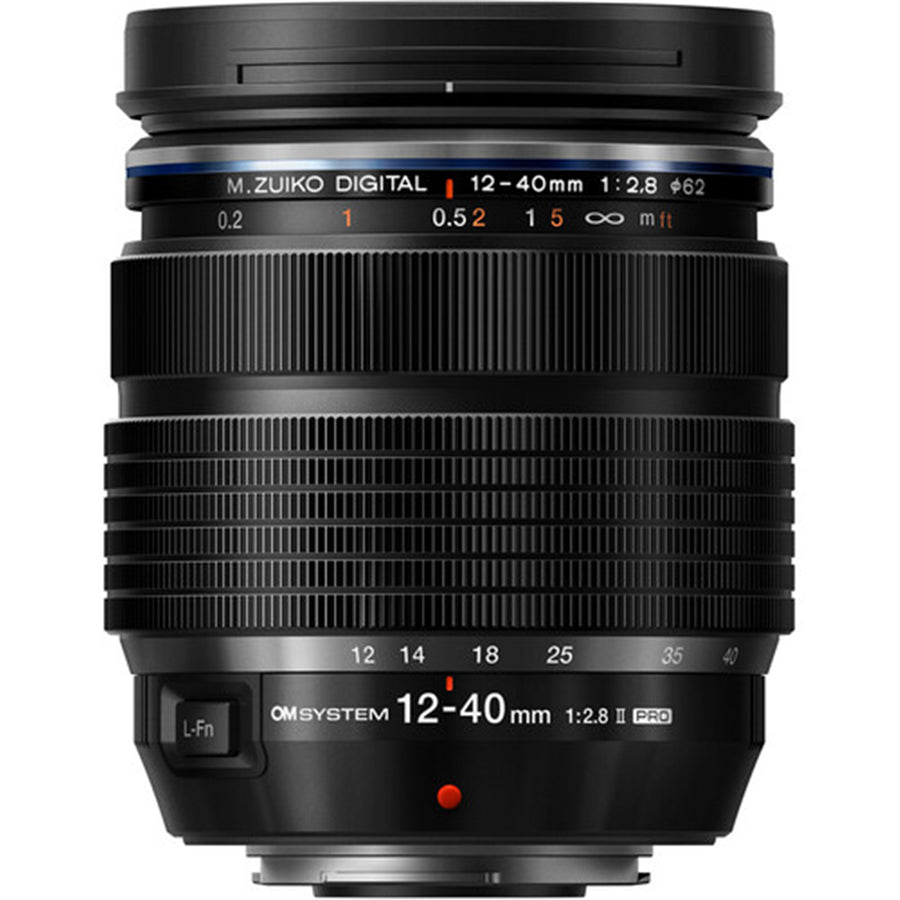

OM-SYSTEM M.Zuiko Digital ED 12-40mm f/2.8 PRO II Lens
Features
M.ZUIKO ED 12-40MM F2.8 PRO II AT A GLANCE
This high-resolution, large-aperture zoom offers incredible versatility from wide angle to mid-range telephoto shots. It's even great for macro photography. Put it in your gear bag and you'll find yourself reaching for it over and over again. Even with all that imaging power, it's still lightweight and compact enough to comfortably fit in your hand. The IP53-rating means its highly weathersealed so you can shoot without worry in the most adverse conditions. One of the most versatile lenses you'll ever own.
- F2.8 Bright Aperture
- IP53 Weathersealed Performance
- 24-80mm 35mm Equivalent Focal Length
- 24-80mm Focal length(35mm equivalent)
- Max 2.8 Aperture
- .6x max image magnification
- ZERO-Coating
- MSC Movie & Still Compatible
- L-Fn Button
- AF/MF clutch
- Splash, dust, freeze proof
- Fluorine coating
High Quality Optics
Our 12-40mm is built using world-class optics with a bright aperture and features everything you need to capture high resolution images.
Bright F2.8
Let the light flow in. This fast, large aperture lens delivers plenty of brightness to help you shoot high resolution photos in a range of shooting situations.
14 ELEMENTS IN 9 GROUPS
It's compact but packs plenty of optical firepower. Built with precision-cut glass configured in 9 groups with 14 elements all made to capture high resolution images.
Zero Coating
Besides being built with some of the world's finest glass, we apply an advanced coating that suppresses ghosting and flares.
Specifications
Technical Specifications
| Maximum Aperture | f/2.8 |
|---|---|
| Minimum Aperture | f/22 |
| Focal Length Range | 12-40mm |
| Angle of View | 84° (wide) - 30° (tele) |
| 35mm Equivalent | 24-80mm |
| Recommended Uses | Adventure Landscape, Allround, Architecture, Landscape, Low light, Nature, Portrait, Sports, Travel |
| Lens configuration | 14 elements / 9 groups |
| Maximum image magnification | 0.3x (Micro Four Thirds) / 0.6x (35mm format) |
| Angle of view | 84 - 30° |
| Closest focusing distance | 0.2m |
| Minimum field size | 58 x 44mm |
| ED lens elements | 2 |
| Aspherical glass elements | 1 (1 is ED glass) |
| Aspherical ED element | 2 |
| DSA lens elements | 1 |
| HR elements | 2 |
| High-refractive element | 2 |
| HD lens elements | 1 elements |
| Focal length | 12 - 40mm |
| Focal length (equiv. 35mm) | 24 - 80mm |
| Maximum aperture | F2.8 |
| Minimum aperture | F22 |
| Number of aperture blades | 7 Circular aperture diaphragm for natural background blurring |
| Dust, splash & freezeproof | Available |
| Note | According to IP53 |
| Lens Hood locking | Safety button |
| L-Fn Button | Available |
| MF Clutch | Available |
| Diameter | 69.9mm |
| Length | 84mm |
| Filter diamater | 62mm |
| Weight | 382g |
| Compatible to Tele Converter MC-14 | No |
| Compatible to Tele Converter MC-20 | No |
| Operates with 5-axis Sync IS | No |
| Compatible with 50fps | Yes |
| Lens Cap | LC-62G |

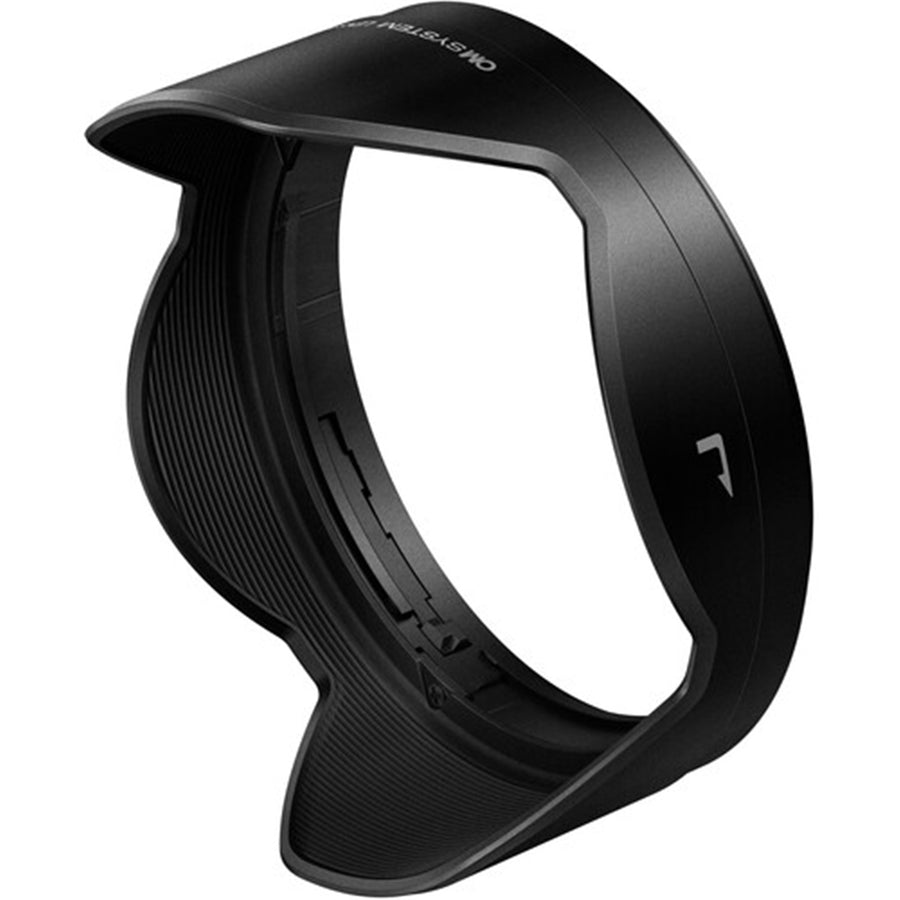

| Lens Hood | LH-66D |
| Brand | OM-SYSTEM |
|---|---|
| Product Type | Cameras & Drones |
