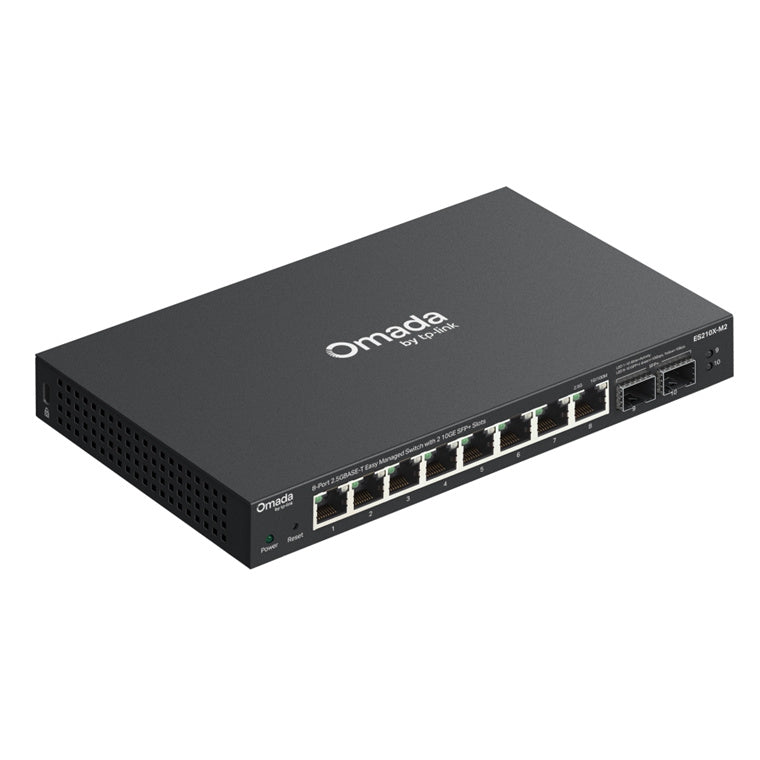

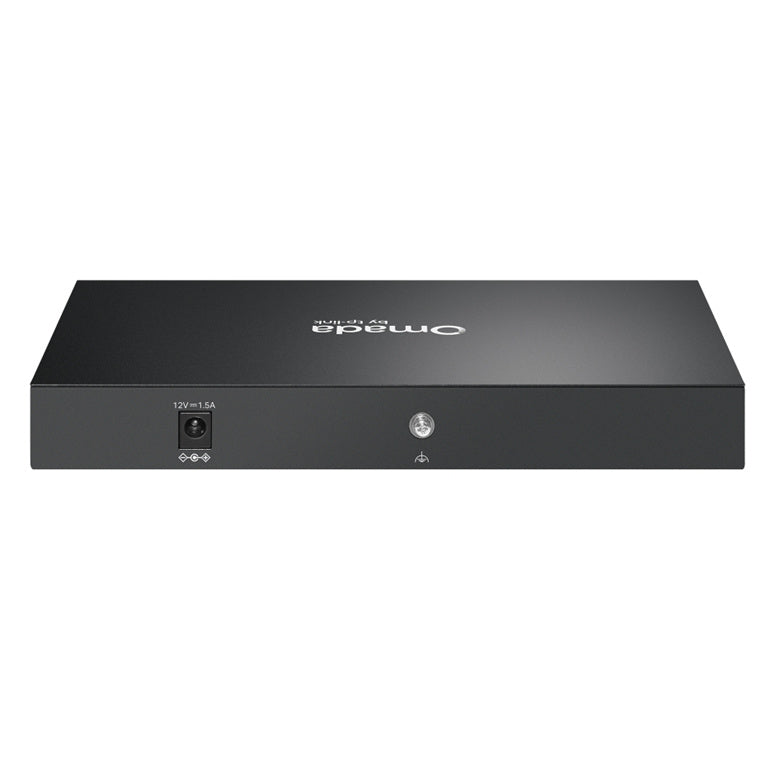

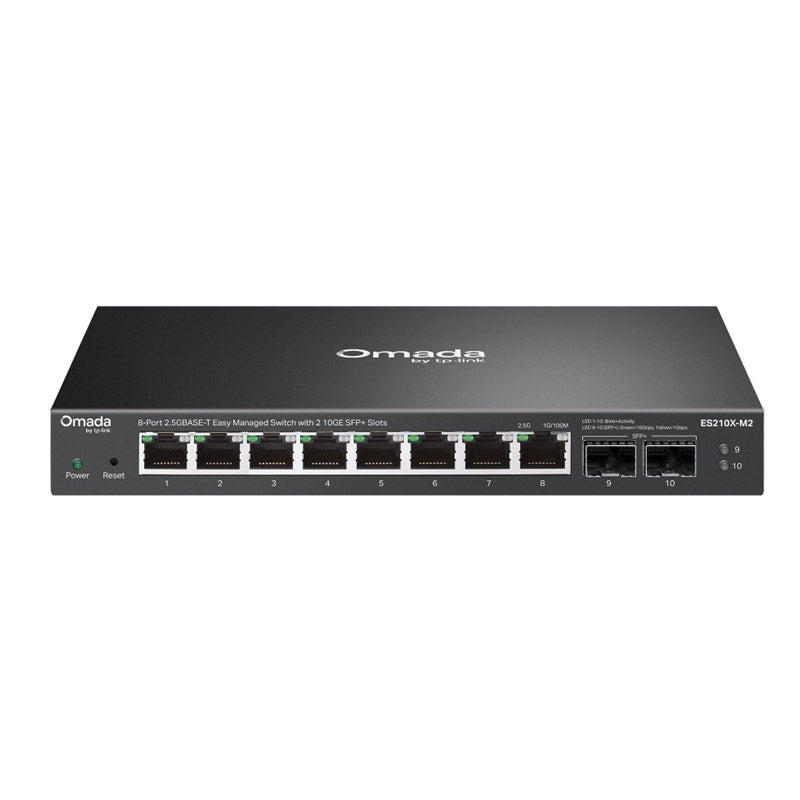

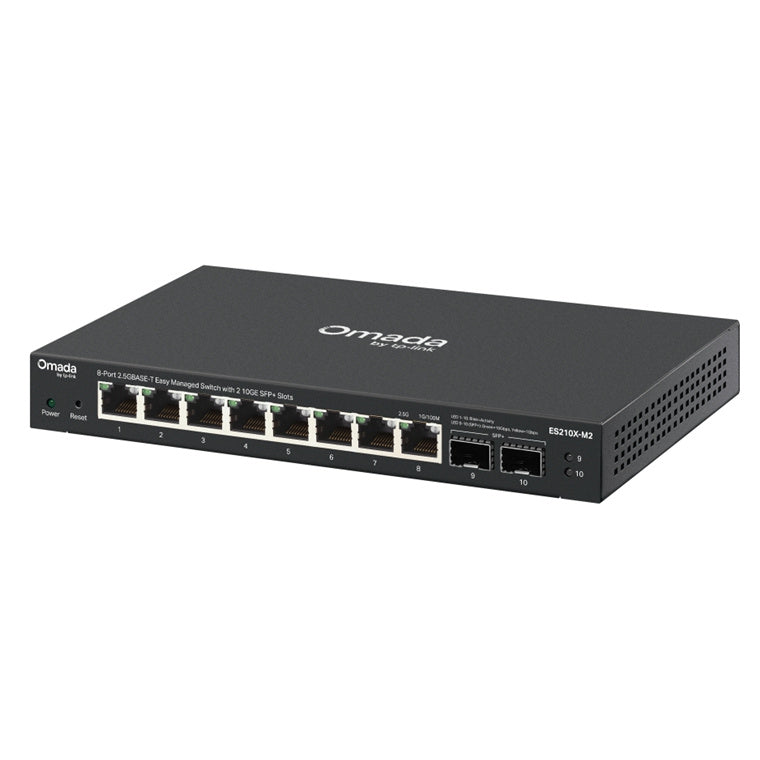

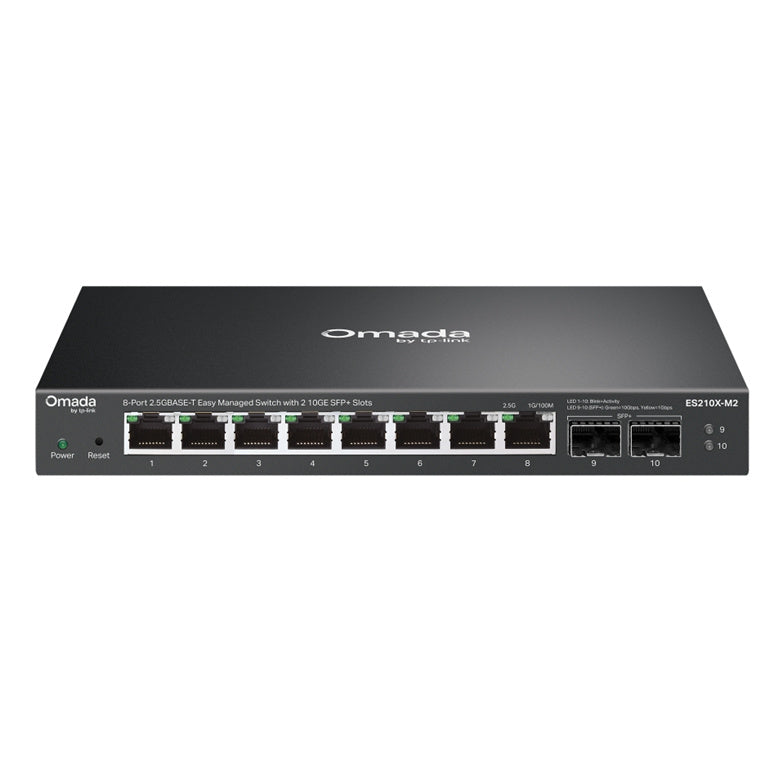

Omada ES210X-M2 8-Port 2.5GBASE-T Easy Managed Switch with 2 10GE SFP+ Slots
Features
TP-Link Omada ES210X-M2 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots
The Omada ES210X-M2 is an Easy Managed switch designed to deliver high-speed connectivity and performance for modern business networks. It offers multi-gigabit speeds and seamless integration into the Omada SDN platform, catering to the demands of high-performance devices like Wi-Fi 6/7 APs, 2.5G NAS, and workstations. It comes equipped with 8× 2.5 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots for high-speed uplinking. With centralized cloud management, a fanless design for silent operation, and value-added features like QoS and VLANs, this switch ensures a powerful and optimized network experience for small to medium-sized businesses.
- 8x 2.5 Gbps RJ45 Ports
- 2x 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app[1]
- VLAN, Port Isolation, Cable Test[2], QoS[2] for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation

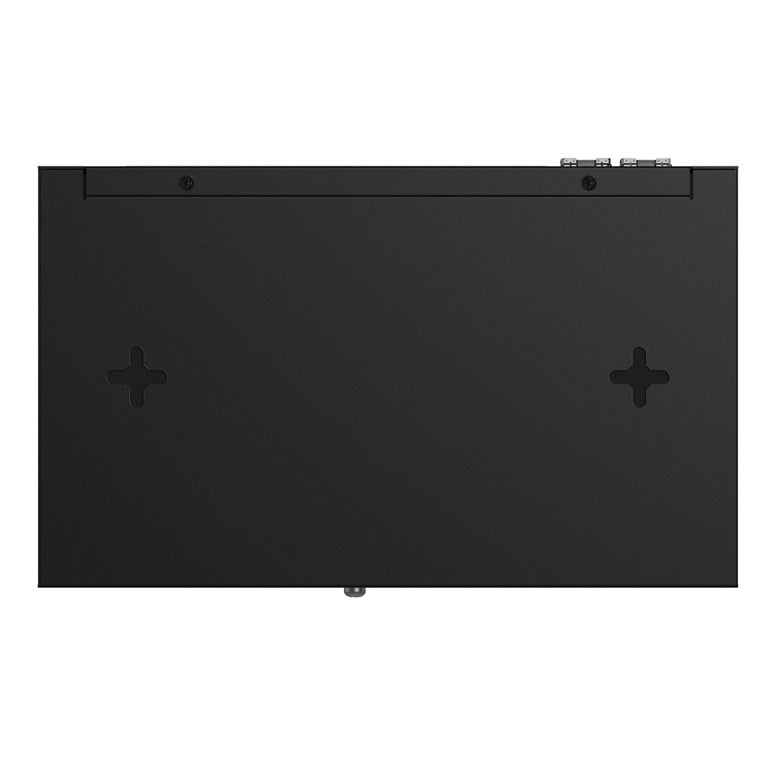

- Durable metal casing and desktop/wall mounting design
Notes
[1]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[2]Cable Test and Port Qos are supported under Standalone Mode.
Specifications
Technical Specifications
| Interface | 8x 2.5 Gbps RJ45 Ports2x 10 Gbps SFP+ Slots |
|---|---|
| Fan Quantity | Fanless |
| Installation | DesktopWall Mounting |
| Physical Security Lock | Yes |
| Power Supply | 12 VDC / 1.5 A |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Surge Protection | ±6 kV in common mode for Ethernet ports±2 kV in differential mode for DC power input port |
| Switching Capacity | 80 Gbps |
| Packet Forwarding Rate | 59.52 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Quality of Service | 802.1p DSCP Priority8 Priority QueuesPriority Schedule Mode- WRR (Weighted Round Robin)Queue Weight ConffgBandwidth Control- Port-Based Rating LimitStorm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Link Aggregation- Static Link Aggregation- Up to 6 aggregation groups and up to 4 ports per groupLoopback DetectionFlow Control- 802.3x Flow ControlMirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/BothPort Statistics- Port Mirror Status- Trafffc Statistics802.1ab LLDP |
| L2 Multicast | IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | MTU VLANPort-Based VLAN802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUIDHCP ClientCable Diagnostics |
| Certification | FCC, CE, RoHS |
| Package Content | ES210X-M2Power AdapterRubber FeetInstallation Guide |
| Environment | Operating Temperature: -5℃~40℃ (23℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
