-21%
Omada

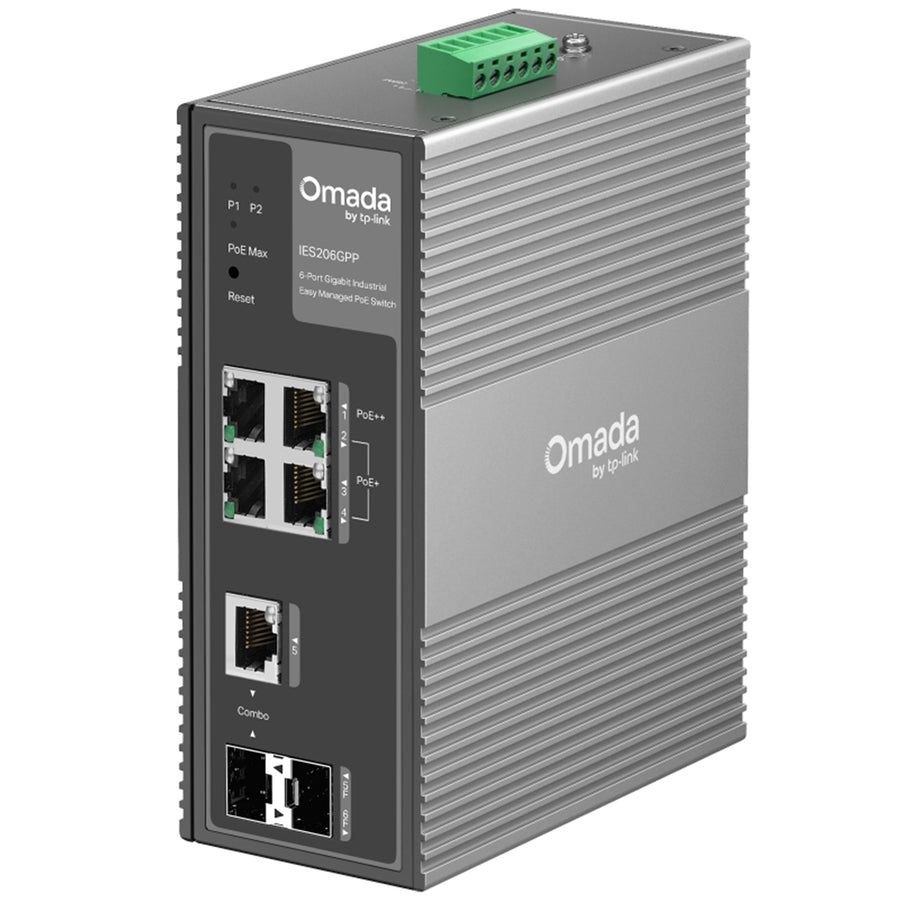

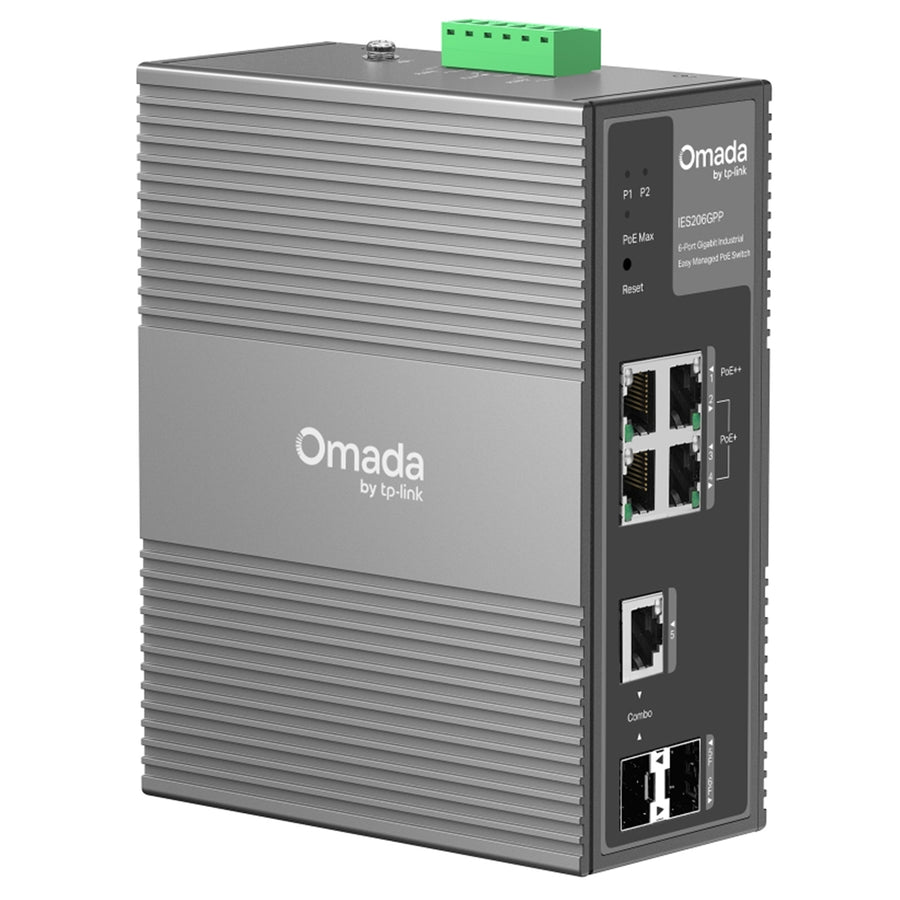

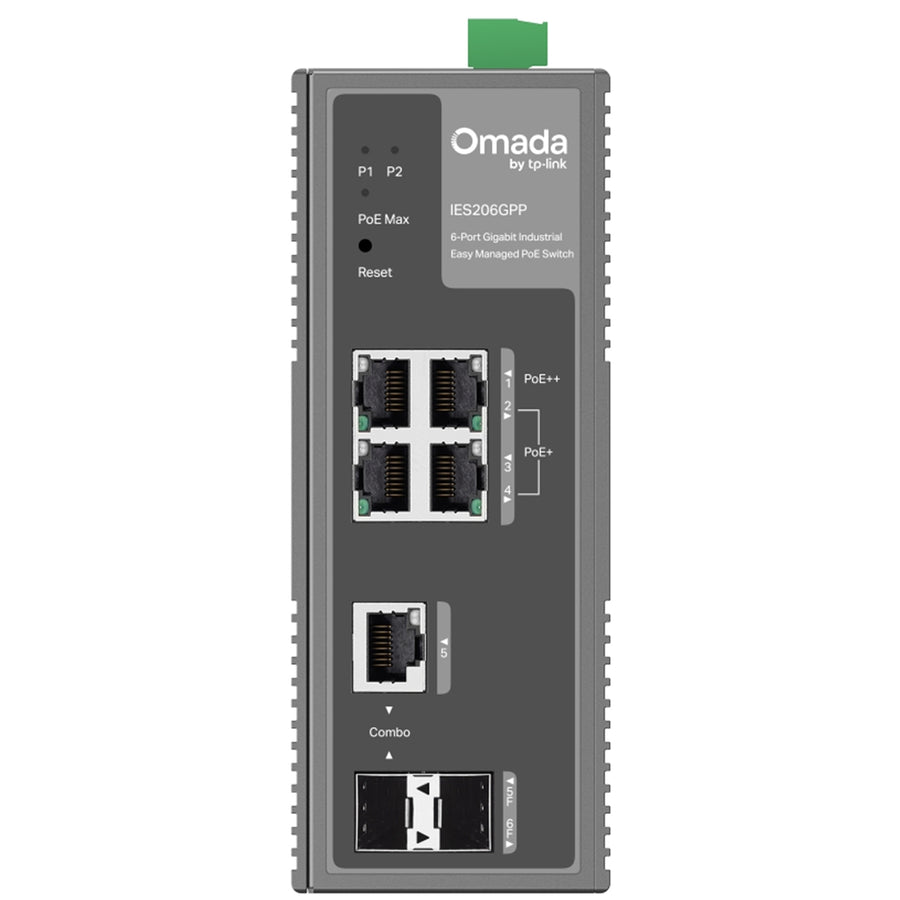

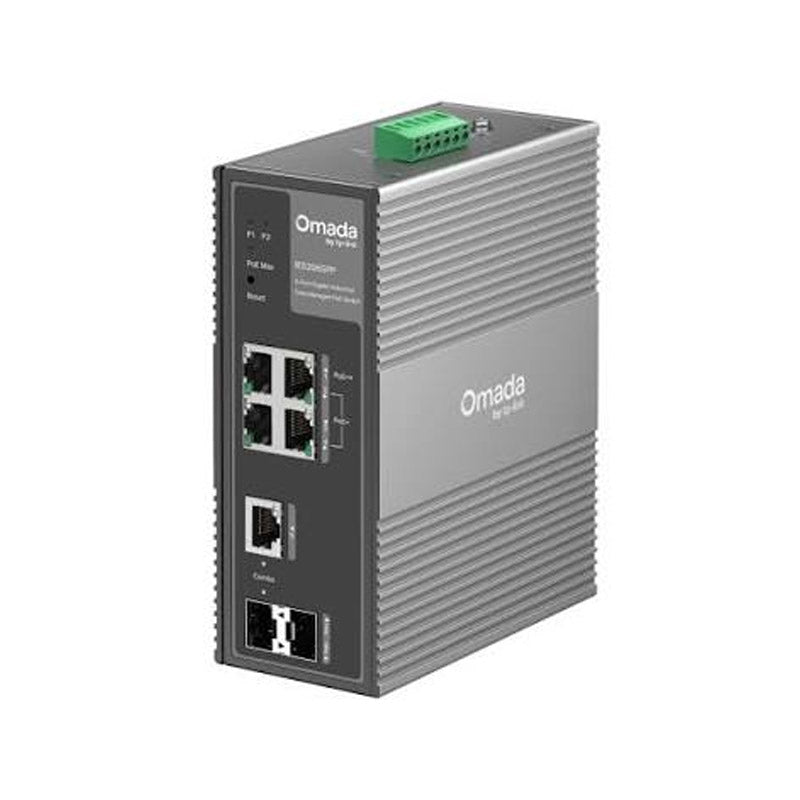

Omada IES206GPP 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
$332.86$420.42
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Specifications
Technical Specifications
| Interface | - 1× 10/100/1000 Mbps PoE++ RJ45 Ports- 3× 10/100/1000 Mbps PoE+ RJ45 Ports- 1× Gigabit SFP/RJ45 Combo Slot- 1× Gigabit SFP Slot- Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |
| Installation | - DIN-rail mounting- Wall mounting |
| Physical Security Lock | Yes |
| Power Supply | 12-57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | - Standard: 802.3af/at/bt compliant- PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port- PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port- PoE Budget:- 60W (Input: 12V / 7.0A - 21V / 3.5A))- 120W (Input: 21V / 6.5A - 57V / 2.3A) |
| Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | - ±6 kV in common mode for Ethernet ports- ±4 kV in common mode for DC power input ports |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | - 802.1p DSCP Priority- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rate Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | - Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group- Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP- Spanning Tree- STP (802.1d)- RSTP (802.1w) |
| L2 Multicast | - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | - Web-based GUI- DHCP Client- Cable Diagnostics- Digital Diagnostic Monitoring (DDM)- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Package Content | - IES206GPP- DIN-Rail Mounting Bracket- Wall-Mounting Plates- Installation Guide |
| Environment | - Operating Temperature: -40℃~75℃ (-40℉~167℉)- Storage Temperature: -40℃~85℃ (-40℉~185℉)- Operating Humidity: 5%~95% non-condensing- Storage Humidity: 5%~95% non-condensing |
| Brand | Omada |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
