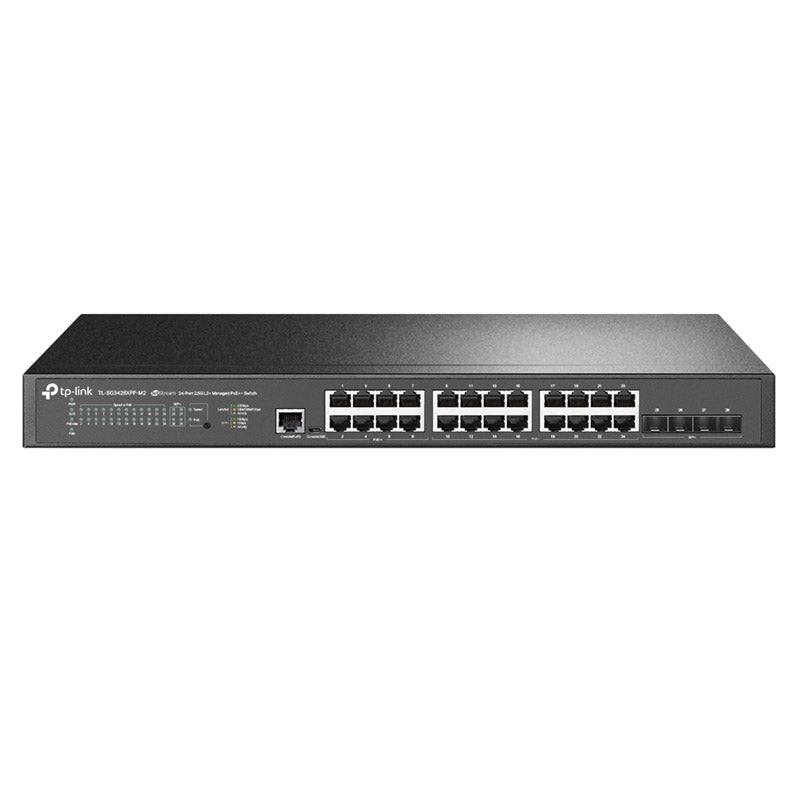

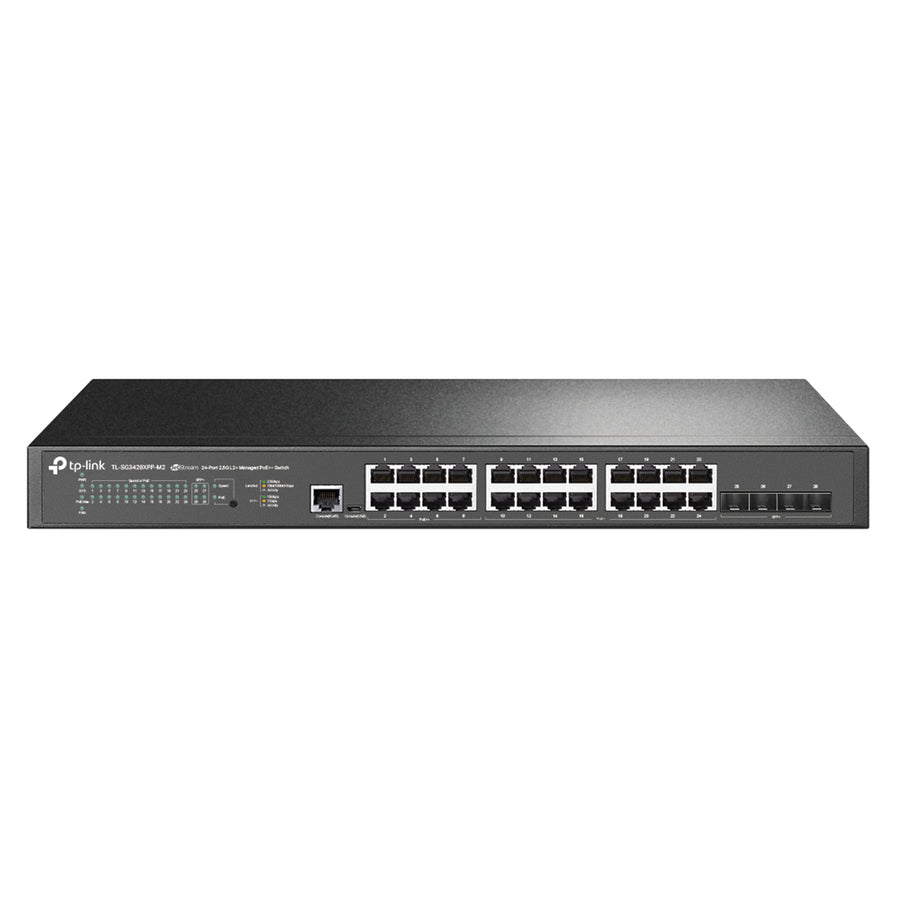

Omada SG3428XPP-M2 Access Pro 24-Port 2.5G and 4-Port 10GE SFP+ Switch with 24-Port PoE++
Omada SG3428XPP-M2 Access Pro 24-Port 2.5G and 4-Port 10GE SFP+ Switch with 24-Port PoE++
Overview
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
- 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
- 4× 10G SFP+ slots
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
Technical Specifications
| Switch type | Managed |
|---|---|
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| MIB support | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | Y |
| Port mirroring | Y |
| Full duplex | Y |
| Half duplex | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Ethernet LAN data rates | 10,100,1000,2500,10000 |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| VLAN support | Y |
| Virtual LAN features | MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN,Stacked VLAN,Tagged VLAN,Voice VLAN |
| Switching capacity | 200 |
| Forwarding rate | 148.8 |
| MAC address table | 32000 |
| Store-and-forward | Y |
| Number of queues | 8 |
| Static route | Y |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 16 |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | HTTPS,SSH,SSH-2,SSL/TLS |
| Static port security | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
| Password protection | Y |
| Authentication type | AAA,IEEE 802.1x,RADIUS,TACACS+ |
| Queue scheduling algorithms | SP,WRR+SP,Weighted Round Robin (WRR) |
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Management protocols | SNMP v1/v2c/v3 |
| GARP VLAN Registration Protocol (GVRP) | Y |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 ping,IPv6 portal,IPv6 tracert |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Redundant fans support | Y |
| Number of fans | 3 |
| Memory type | DRAM |
| Internal memory | 256 |
| Flash memory | 32 |
| Power source | AC/PoE |
| Power supply included | Y |
| Redundant power supply (RPS) support | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 629.1 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 500 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 2153.45 |
| Width | 440 |
| Depth | 330 |
| Height | 44 |
| Cables included | AC |
| Quick start guide | Y |
| Rack mount kit | Y |
| Sustainability compliance | Y |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
