Panasonic PN260496-NZ
Panasonic PN260496-NZ
Panasonic

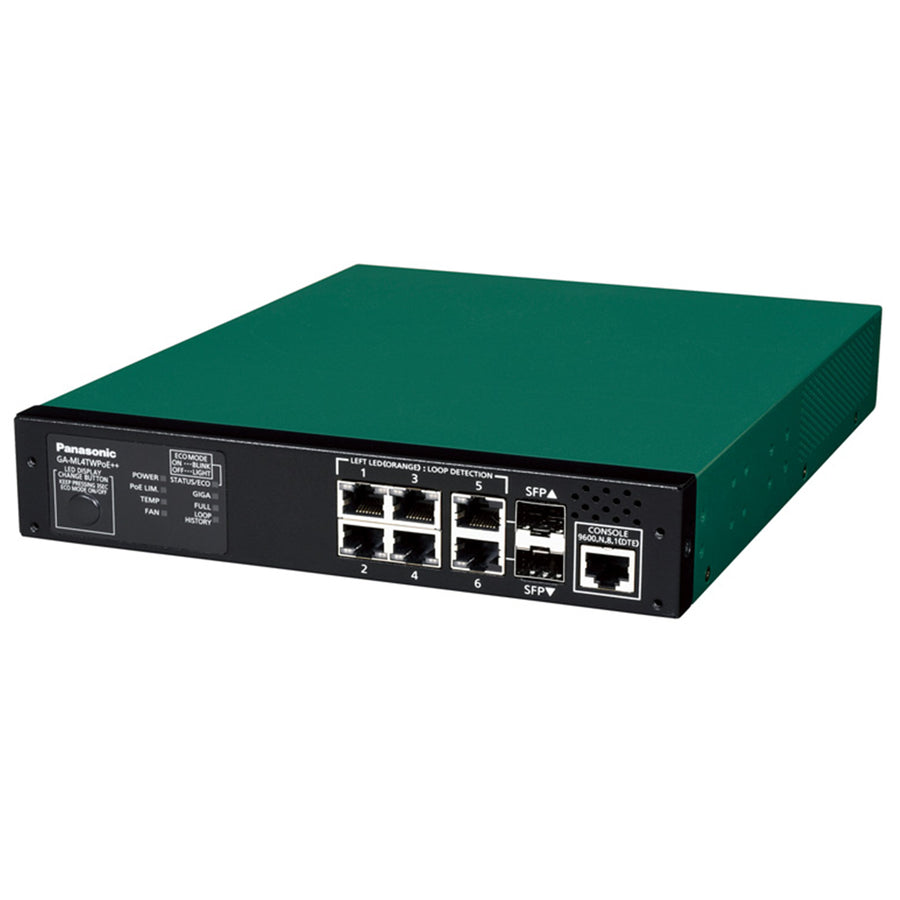

Panasonic PN260496-NZ GA-ML Series Layer2 POE Switch GA-ML4TWPOE

SKU: PN260496-NZ ● In Stock
$1,181.74
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Panasonic PN260496-NZ GA-ML Series Layer2 POE Switch GA-ML4TWPOE

Specifications

Technical Specifications

Manufacturer part number PN260496-NZ
Model No. PN260496-NZ
Power supply AC100-240V, 50/60Hz, 5.0A (with a built-in power supply)
Power consumption Normally, Max.291W (15.7W when not supplying power), Min. 11.5W
Operating environment Temperature: 0 - 50°C Humidity: 20 - 80%RH (no condensation) (Note) Please note that if the aforementioned conditions are not satisfied, it may cause fire, electrical shock, malfun
Storage environment Temperature: -20 - 70°C Humidity: 10 - 90%RH (no condensation)
EMC compliance CISPR 32 Class A EN 55032 Class A AS/NZS CISPR32 Class A VCCI Class A EN 61000-3-2, EN 61000-3-3 EN 55024 IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Safety compliance IEC 62368-1 EN 62368-1
Environment compliance RoHS compliant
Form and materials/colors Dimensions :44mm(Height)×210mm(Width)×260mm(Depth) (Excluding protruding sections) Case material :SECC Color : Main unit: Green 03, Front face: Black 03, Face plate label: Black 04
Mass(Weight) 2,300g
Twisted pair port :RJ45 connector (Port Transmitting and receiving network system: IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T Transmission speed :10/100/1000Mbps, full/half duplex Compatible cable :T
Twisted pair port :RJ45 connector (Port Transmitting and receiving network system: IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T energy efficient Ethernet :IEEE802.3az(LPI) Transmission speed :10/100/10
SFP extension slot 5, 6 Transmitting and receiving network system: IEEE802.3z 1000BASE-X * Select either of 1000BASE-T twisted pair port or SFP for use SFF-8472(DMI:Diagnostic Monitoring Interface
Switching method Store and Forward
Switching capacity 12.0Gbps
Packet transfer capability Non-blocking Max. 1,488,000pps/port(1000Mbps) Max. 148,800pps/port(100Mbps) Max. 14,880pps/port(10Mbps)
MAC Address table Max. 16K entry/unit Automatic learning can be enabled/disabled
Buffer memory 2.0M Bytes/unit
Flow control half-duplex Back pressure full-duplex IEEE802.3x
Aging timeout 10 to 1,000,000 sec. (Default: 300 sec.)
Jumbo frame supported 9KB
Transmittable frames EAP,BPDU
Console port RJ45 connector 1 port
Transmission mode RS-232C(ITU-TS V.24)
Emulation mode VT100
Communication configuration 9,600bps, 8bit, None Parity control, Stop bit 1 bit
Product type Switches
Weight 1 kg
Warranty 12 months
